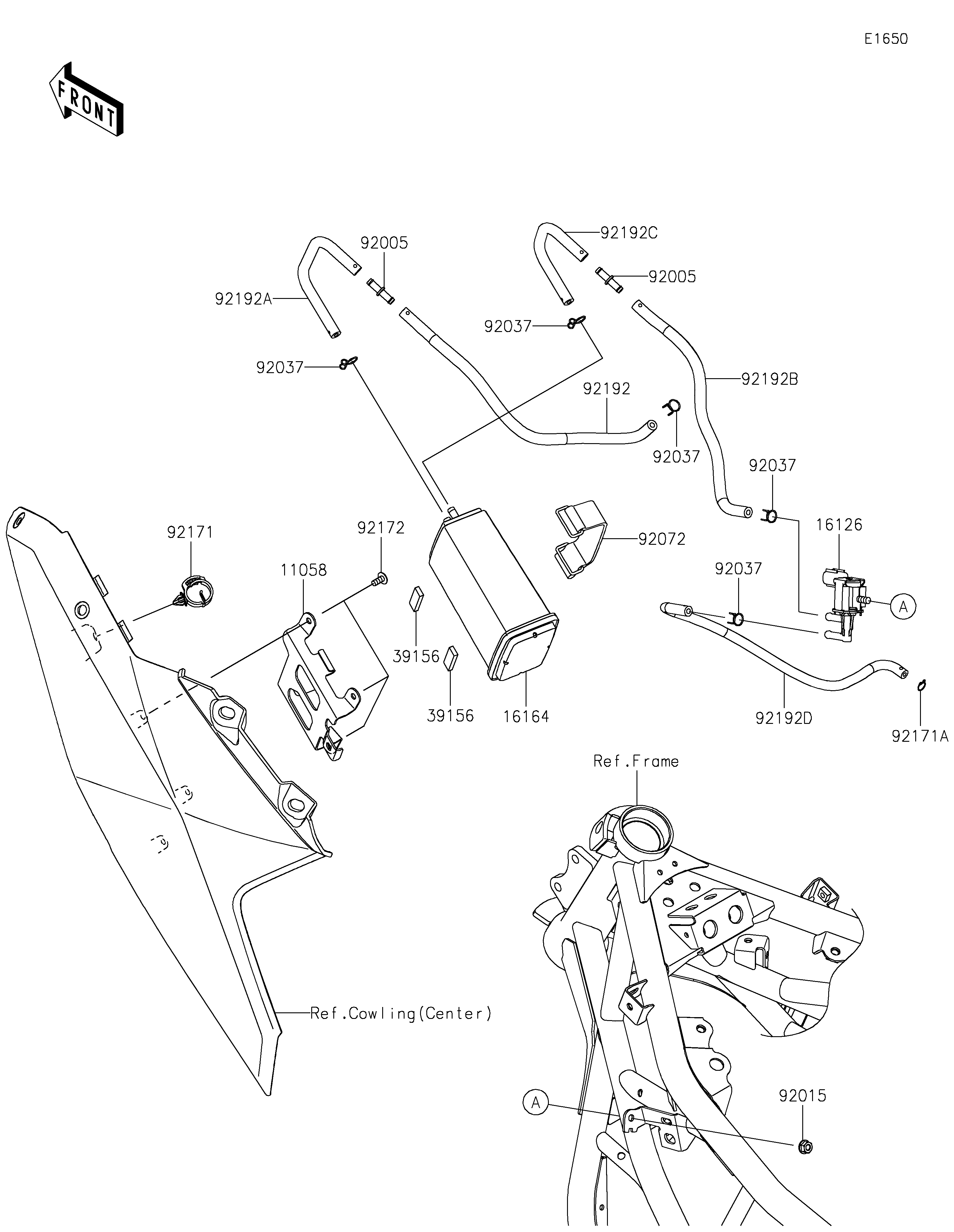

2026 KLE500 ABS - Fuel Evaporative System(CA)
11058
16126
16164
39156
39156
92005
92005
92015
92037
92037
92037
92037
92037
92072
92171
92171A
92172
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-2743 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0012 | 1 | CA | |
| PAD,10X30X4 | 39156 | 39156-0927 | 2 | CA | |
| FITTING | 92005 | 92005-0721 | 2 | CA | |
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 5 | CA | |
| BAND,CANISTER | 92072 | 92072-0922 | 1 | CA | |
| CLAMP,20MM DIA. | 92171 | 92171-0069 | 1 | CA | |
| CLAMP | 92171A | 92171-0573 | 1 | CA | |
| SCREW,5X12 | 92172 | 92172-0821 | 3 | CA | |
| TUBE,TANK-FITTING(CANISTER) | 92192 | 92192-2841 | 1 | CA | |
| TUBE,FITTING(TANK)-CANISTER | 92192A | 92192-2842 | 1 | CA | |
| TUBE,VALVE-FITTING(CANISTER) | 92192B | 92192-2843 | 1 | CA | |
| TUBE,FITTING(VALVE)-CANISTER | 92192C | 92192-2844 | 1 | CA | |
| TUBE,VALVE-THROTTLE | 92192D | 92192-2847 | 1 | CA |
