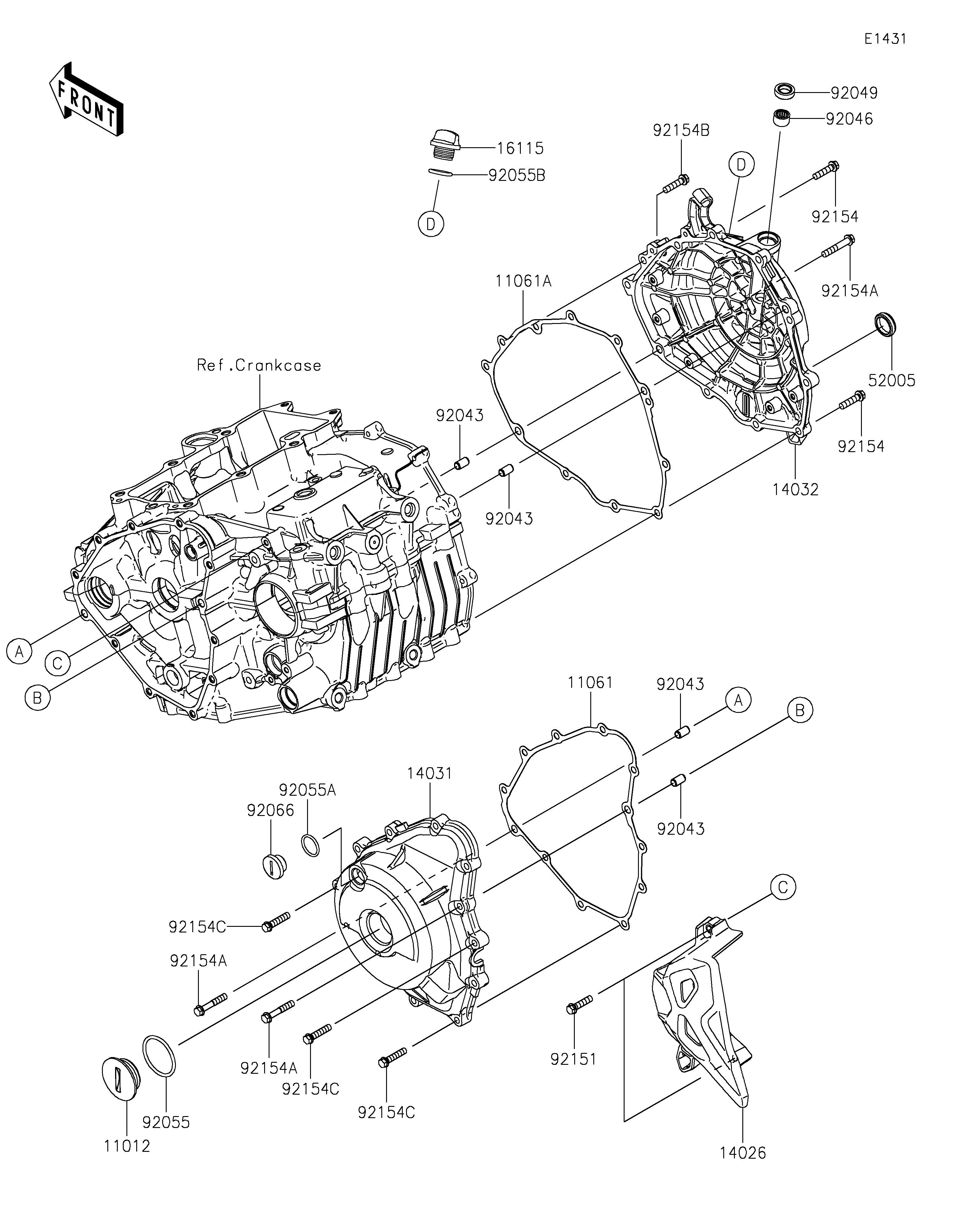

2026 KLE500 ABS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11061
11061A
14026
14031
14032
16115
52005
92043
92043
92043
92043
92046
92049
92055
92055A
92055B
92066
92151
92154
92154
92154A
92154A
92154A
92154B
92154C
92154C
92154C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1362 1
GASKET,GENERATOR COVER 11061 11061-1252 1
GASKET,CLUTCH COVER 11061A 11061-1253 1
COVER-CHAIN 14026 14026-0165 1
COVER-GENERATOR 14031 14031-0618 1
COVER-CLUTCH 14032 14032-0656 1
CAP-OIL FILLER 16115 16115-1053 1
GAUGE,OIL LEVEL 52005 52005-1009 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
SEAL-OIL 92049 92049-1560 1
RING-O,39.4X3.1 92055 92055-0734 1
RING-O,20X2 92055A 92055-1146 1
RING-O 92055B 92055-1777 1
PLUG 92066 92066-0748 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT,FLANGED,6X25 92154 92154-0819 9
BOLT,FLANGED,6X35 92154A 92154-1779 3
BOLT,FLANGED,6X25 92154B 92154-2734 1
BOLT,FLANGED,6X28 92154C 92154-2788 10
