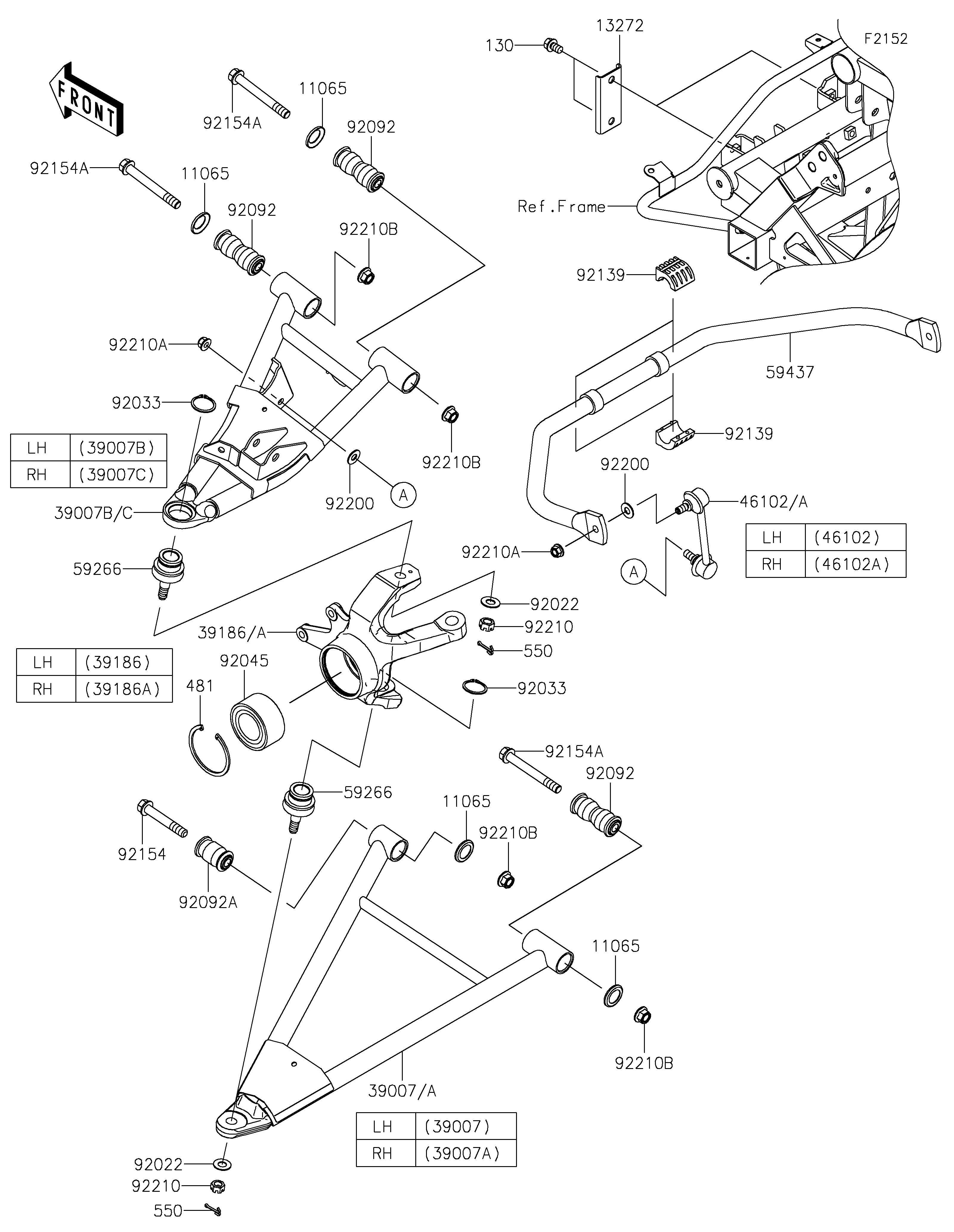

2026 RIDGE CREW Platinum Ranch Edition HVAC - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
13272
39007
39007A
39007B
39007C
39186
39186A
46102
46102A
59266
59266
59437
92022
92022
92033
92033
92045
92092
92092
92092
92092A
92139
92139
92154
92154A
92154A
92154A
92200
92200
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
130
481
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ARM 11065 11065-0838 8
PLATE,FR STABILIZER 13272 13272-7216 2
ARM-SUSP,FR,LWR,LH,BLACK 39007 39007-0489-10 1
ARM-SUSP,FR,LWR,RH,BLACK 39007A 39007-0490-10 1
ARM-SUSP,FR,UPP,LH,BLACK 39007B 39007-0528-10 1
ARM-SUSP,FR,UPP,RH,BLACK 39007C 39007-0529-10 1
KNUCKLE,FR,LH 39186 39186-0335 1
KNUCKLE,FR,RH 39186A 39186-0336 1
ROD,STABILIZER,LH 46102 46102-0689 1
ROD,STABILIZER,RH 46102A 46102-0690 1
JOINT-BALL 59266 59266-0711 4
STABILIZER,FR 59437 59437-0036 1
WASHER 92022 92022-1831 4
RING-SNAP,C-TYPE,32MM 92033 92033-1262 4
BEARING-BALL,40X74X36 92045 92045-0919 2
BUSHING-RUBBER,12X20X78 92092 92092-0028 6
BUSHING-RUBBER 92092A 92092-0555 2
BUSHING 92139 92139-1352 4
BOLT,FLANGED,12X76.5 92154 92154-7079 2
BOLT,FLANGED,12X100 92154A 92154-7081 6
WASHER,10.3X23X1.6 92200 92200-0724 4
NUT,CASTLE,12MM 92210 92210-0395 4
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 4
NUT,LOCK,FLANGED,12MM 92210B 92210-1931 8
BOLT-FLANGED,10X16 130 130CA1016 4
CIRCLIP-TYPE-C 481 481J7500 2
PIN-COTTER,3.0X25 550 550AA3025 4
