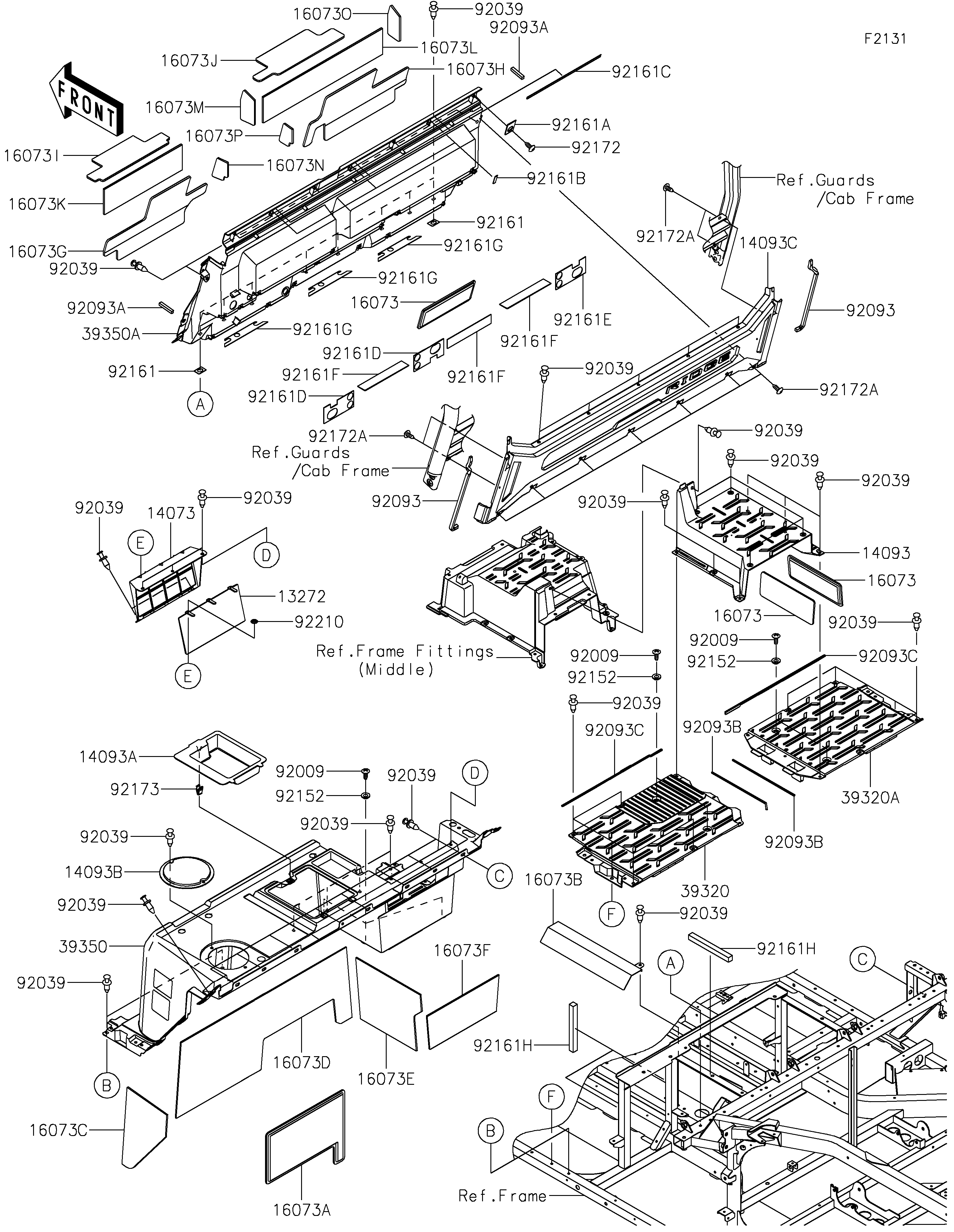

2026 RIDGE® CREW HVAC CAMO - Frame Fittings(Rear)
13272
13272
14073
14073
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
16073
16073
16073
16073
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
16073E
16073E
16073F
16073F
16073G
16073G
16073H
16073H
16073I
16073I
16073J
16073J
16073K
16073K
16073L
16073L
16073M
16073M
16073N
16073N
16073O
16073O
16073P
16073P
39320
39320
39320A
39320A
39350
39350
39350A
39350A
92009
92009
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92093
92093
92093
92093
92093A
92093A
92093A
92093A
92093B
92093B
92093B
92093B
92093C
92093C
92093C
92093C
92152
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92161E
92161E
92161F
92161F
92161F
92161F
92161F
92161F
92161G
92161G
92161G
92161G
92161G
92161G
92161H
92161H
92161H
92161H
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,VENT FLAP | 13272 | 13272-4095 | 1 | ||
| DUCT,VENT | 14073 | 14073-1921 | 1 | ||
| COVER,TUNNEL,CNT | 14093 | 14093-1330 | 1 | ||
| COVER,TRAY | 14093A | 14093-1333 | 1 | ||
| COVER,HOLE | 14093B | 14093-1334 | 1 | ||
| COVER,RR | 14093C | 14093-1353 | 1 | ||
| INSULATOR,FR TUNNEL&BACK PANEL | 16073 | 16073-0947 | 3 | ||
| INSULATOR,SEAT PANEL,CNT | 16073A | 16073-0968 | 1 | ||
| INSULATOR | 16073B | 16073-0984 | 1 | ||
| INSULATOR,SEAT PANEL,LH | 16073C | 16073-1131 | 1 | ||
| INSULATOR,SEAT PANEL,CNT | 16073D | 16073-1132 | 1 | ||
| INSULATOR,SEAT PANEL,CNT,RH | 16073E | 16073-1133 | 1 | ||
| INSULATOR,SEAT PANEL,RH | 16073F | 16073-1134 | 1 | ||
| INSULATOR,BACK PANEL,LH,LWR | 16073G | 16073-1135 | 1 | ||
| INSULATOR,BACK PANEL,RH,LWR | 16073H | 16073-1136 | 1 | ||
| INSULATOR,BACK PANEL,LH,MID | 16073I | 16073-1137 | 1 | ||
| INSULATOR,BACK PANEL,RH,MID | 16073J | 16073-1138 | 1 | ||
| INSULATOR,BACK PANEL,LH,UPP | 16073K | 16073-1139 | 1 | ||
| INSULATOR,BACK PANEL,RH,UPP | 16073L | 16073-1140 | 1 | ||
| INSULATOR,BACK PANEL,CNT,UPP | 16073M | 16073-1141 | 1 | ||
| INSULATOR,BACK PANEL,CNT,MID,L | 16073N | 16073-1142 | 1 | ||
| INSULATOR,BACK PANEL,RH,UPP,RH | 16073O | 16073-1143 | 1 | ||
| INSULATOR,BACK PANEL,CNT,MID,R | 16073P | 16073-1144 | 1 | ||
| FLOOR,PANEL,LH | 39320 | 39320-0001 | 1 | ||
| FLOOR,PANEL,RH | 39320A | 39320-0002 | 1 | ||
| PANEL,UNDER SEAT | 39350 | 39350-0010 | 1 | ||
| PANEL,BACK | 39350A | 39350-0012 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 7 | ||
| RIVET | 92039 | 92039-0776 | 59 | ||
| SEAL,10X10X395 | 92093 | 92093-0780 | 2 | ||
| SEAL,10X10X60 | 92093A | 92093-0786 | 2 | ||
| SEAL,3X5X310 | 92093B | 92093-0818 | 2 | ||
| SEAL,3X5X500 | 92093C | 92093-0819 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 7 | ||
| DAMPER | 92161 | 92161-2613 | 2 | ||
| DAMPER | 92161A | 92161-2626 | 4 | ||
| DAMPER,12X36X1.5 | 92161B | 92161-2627 | 3 | ||
| DAMPER,10X370X1.5 | 92161C | 92161-2628 | 3 | ||
| DAMPER | 92161D | 92161-2629 | 2 | ||
| DAMPER | 92161E | 92161-2630 | 1 | ||
| DAMPER,38X220X1.5 | 92161F | 92161-2631 | 3 | ||
| DAMPER | 92161G | 92161-2632 | 3 | ||
| DAMPER,20X200X20 | 92161H | 92161-2633 | 3 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 4 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-1470 | 11 | ||
| CLAMP | 92173 | 92173-1423 | 1 | ||
| NUT | 92210 | 92210-1796 | 3 |
| PLATE,VENT FLAP | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,VENT | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TUNNEL,CNT | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRAY | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HOLE | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR | |
| REF # | 14093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR TUNNEL&BACK PANEL | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SEAT PANEL,CNT | |
| REF # | 16073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SEAT PANEL,LH | |
| REF # | 16073C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SEAT PANEL,CNT | |
| REF # | 16073D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SEAT PANEL,CNT,RH | |
| REF # | 16073E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SEAT PANEL,RH | |
| REF # | 16073F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,LH,LWR | |
| REF # | 16073G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,RH,LWR | |
| REF # | 16073H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,LH,MID | |
| REF # | 16073I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,RH,MID | |
| REF # | 16073J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,LH,UPP | |
| REF # | 16073K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,RH,UPP | |
| REF # | 16073L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,CNT,UPP | |
| REF # | 16073M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,CNT,MID,L | |
| REF # | 16073N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,RH,UPP,RH | |
| REF # | 16073O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,BACK PANEL,CNT,MID,R | |
| REF # | 16073P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOOR,PANEL,LH | |
| REF # | 39320 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOOR,PANEL,RH | |
| REF # | 39320A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,UNDER SEAT | |
| REF # | 39350 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,BACK | |
| REF # | 39350A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 59 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X10X395 | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X10X60 | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,3X5X310 | |
| REF # | 92093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,3X5X500 | |
| REF # | 92093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,12X36X1.5 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X370X1.5 | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,38X220X1.5 | |
| REF # | 92161F |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161G |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,20X200X20 | |
| REF # | 92161H |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
