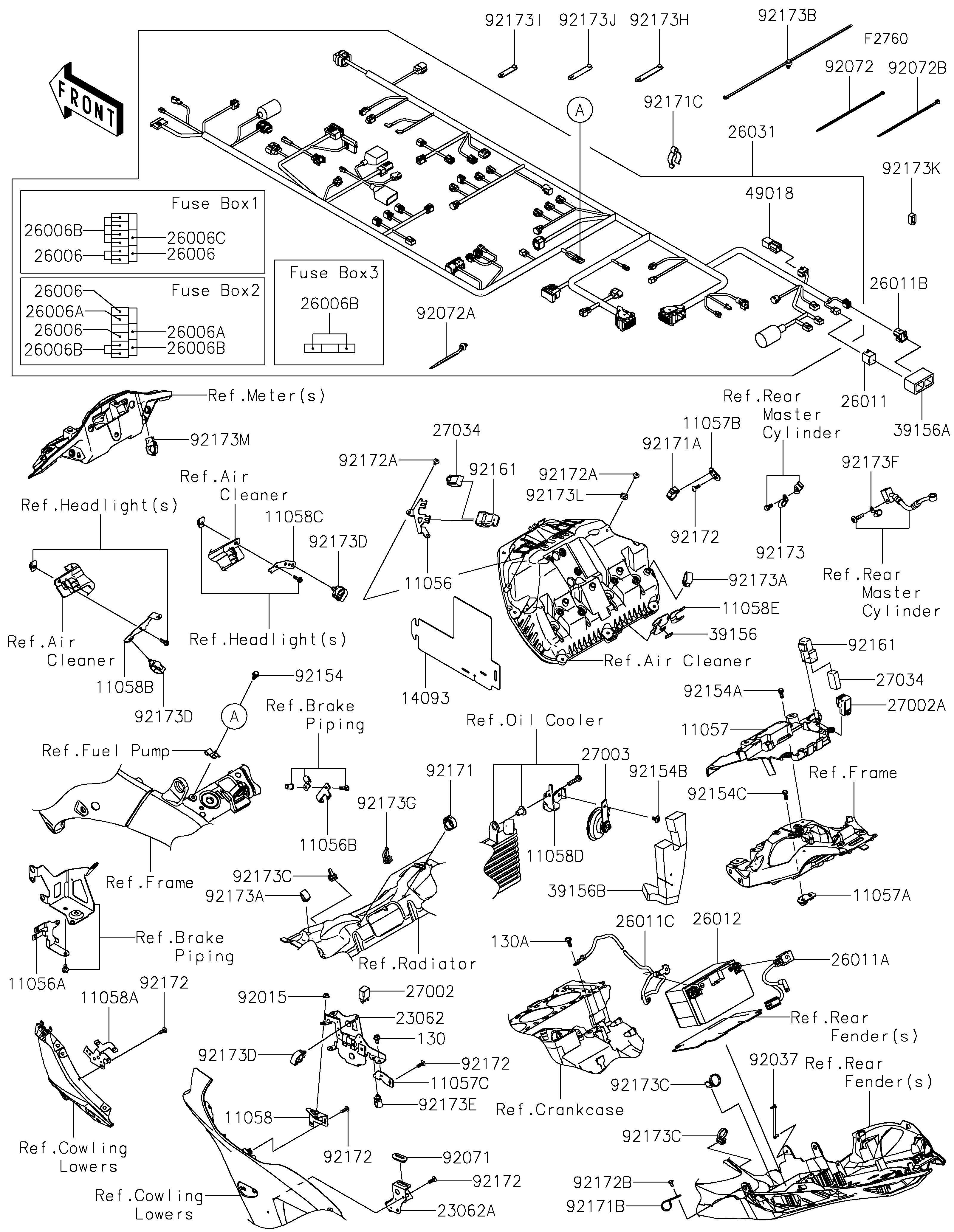

2026 NINJA® ZX™-10RR ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
11058D
11058D
11058E
11058E
14093
14093
23062
23062
23062A
23062A
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
27002
27002
27002A
27002A
27003
27003
27034
27034
27034
27034
39156
39156
39156A
39156A
39156B
39156B
49018
49018
92015
92015
92037
92037
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161
92161
92161
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92173
92173
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173C
92173C
92173C
92173C
92173D
92173D
92173D
92173D
92173D
92173D
92173E
92173E
92173F
92173F
92173G
92173G
92173H
92173H
92173I
92173I
92173J
92173J
92173K
92173K
92173L
92173L
92173M
92173M
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY 11056 11056-7706 1
BRACKET,SHIFTER&GEAR POSITION 11056A 11056-7816 1
BRACKET,FRAME,LH 11056B 11056-7828 1
BRACKET,TOOL 11057 11057-4222 1
BRACKET,ECU 11057A 11057-4225 1
BRACKET,SIDE COWL.,RH 11057B 11057-4229 1
BRACKET 11057C 11057-4232 1
BRACKET,FUSE 11058 11058-4348 1
BRACKET,SIDE COWL.,LH 11058A 11058-4349 1
BRACKET,SIDE COWL.,LH,FR 11058B 11058-4350 1
BRACKET,SIDE COWL.,RH,FR 11058C 11058-4351 1
BRACKET,HORN 11058D 11058-4359 1
BRACKET,HARNESS 11058E 11058-7922 1
COVER,RELAY 14093 14093-0476 1
BRACKET-COMP,REGULATOR 23062 23062-1678 1
BRACKET-COMP,IMMOBI AMP 23062A 23062-1679 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 9
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1889 1
WIRE-LEAD,DIAG CONNECTOR 26011B 26011-1901 1
WIRE-LEAD,BATTERY(-) 26011C 26011-1956 1
BATTERY,YTZ10S,12V 8.6AH 26012 26012-1504 1
HARNESS,MAIN 26031 26031-7365 1
RELAY-ASSY,HEAD LAMP 27002 27002-0045 1
RELAY-ASSY,STARTER 27002A 27002-0047 2
HORN 27003 27003-0180 1
RELAY 27034 27034-0012 2
PAD,HEAT GUARD 39156 39156-0389 1
PAD,DIAG CONNECTOR 39156A 39156-2620 1
PAD,HORN 39156B 39156-2986 1
DIODE 49018 49018-0005 1
NUT,FLANGED,6MM 92015 92015-1367 1
CLAMP,SPEED,L=80.5 92037 92037-1903 1
GROMMET 92071 92071-1187 1
BAND,202X3.6 92072 92072-0782 4
BAND,OS170-FT7(BLACK) 92072A 92072-1414 AR
BAND,L=148 92072B 92072-3768 1
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,FLANGED,6X14 92154A 92154-1864 4
BOLT,SOCKET,6X12 92154B 92154-2706 1
BOLT,FLANGED,6X12 92154C 92154-4349 2
DAMPER 92161 92161-2290 2
CLAMP,CLIP,DIA=20 92171 92171-0068 2
CLAMP,BRAKE HOSE 92171A 92171-0316 1
CLAMP 92171B 92171-1279 1
CLAMP,CABLE 92171C 92171-1283 2
SCREW,TAPPING,5X16 92172 92172-0175 6
SCREW,TAPPING,5X10 92172A 92172-0262 3
SCREW,TAPPING,5X10 92172B 92172-0335 1
CLAMP 92173 92173-0082 1
CLAMP,12MM DIA. 92173A 92173-0736 2
CLAMP 92173B 92173-0742 2
CLAMP 92173C 92173-0791 3
CLAMP 92173D 92173-0861 3
CLAMP,HOLDER CLIP 92173E 92173-0868 1
CLAMP 92173F 92173-0982 1
CLAMP 92173G 92173-1578 1
CLAMP 92173H 92173-2194 2
CLAMP 92173I 92173-2198 3
CLAMP 92173J 92173-2199 3
CLAMP 92173K 92173-2437 1
CLAMP 92173L 92173-2447 1
CLAMP 92173M 92173-2777 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X14 130A 130BA0614 1
