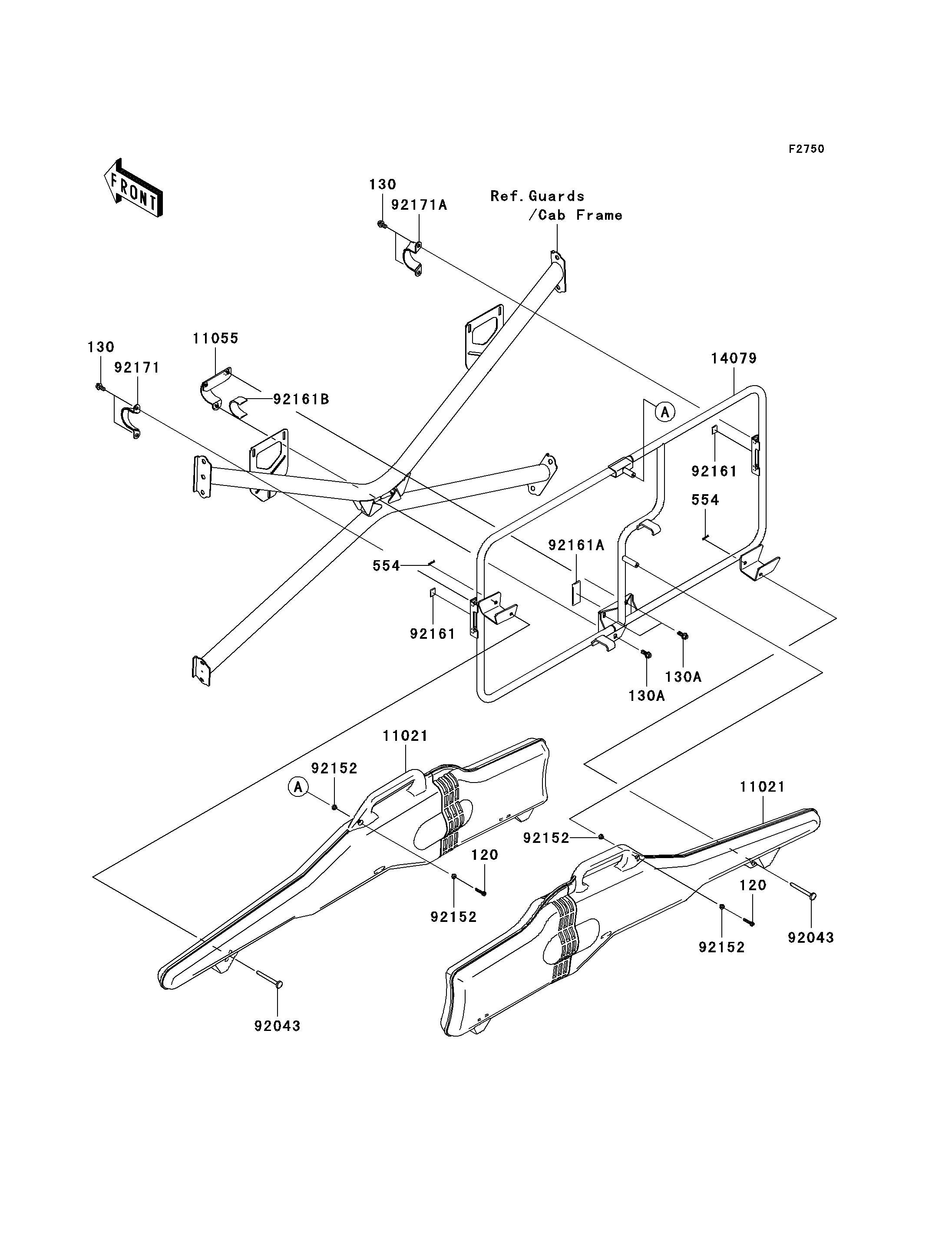

2009 Teryx® 750 FI 4x4 NRA Outdoors - Other
120
120
130
130
130A
130A
554
554
11021
11021
11055
14079
92043
92043
92152
92152
92152
92152
92161
92161
92161A
92161B
92171
92171A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X25 | 120 | 120CB0625 | 2 | ||
| BOLT-FLANGED,8X16 | 130 | 130CB0816 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130CB0820 | 3 | ||
| PIN-SNAP | 554 | 554DA0800 | 2 | ||
| CASE-ASSY,GUN | 11021 | 11021-0015 | 2 | ||
| BRACKET | 11055 | 11055-0963 | 1 | ||
| HOLDER-ASSY,GUN CASE | 14079 | 14079-0049 | 1 | ||
| PIN,8X77 | 92043 | 92043-0170 | 2 | ||
| COLLAR | 92152 | 92152-0706 | 4 | ||
| DAMPER | 92161 | 92161-0273 | 2 | ||
| DAMPER | 92161A | 92161-0547 | 1 | ||
| DAMPER | 92161B | 92161-0652 | 1 | ||
| CLAMP,GUN HOLDER | 92171 | 92171-1938 | 1 | ||
| CLAMP,GUN HOLDER | 92171A | 92171-1939 | 1 |
| BOLT-SOCKET,6X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN-SNAP | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-ASSY,GUN | |
| REF # | 11021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-ASSY,GUN CASE | |
| REF # | 14079 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,8X77 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,GUN HOLDER | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,GUN HOLDER | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
