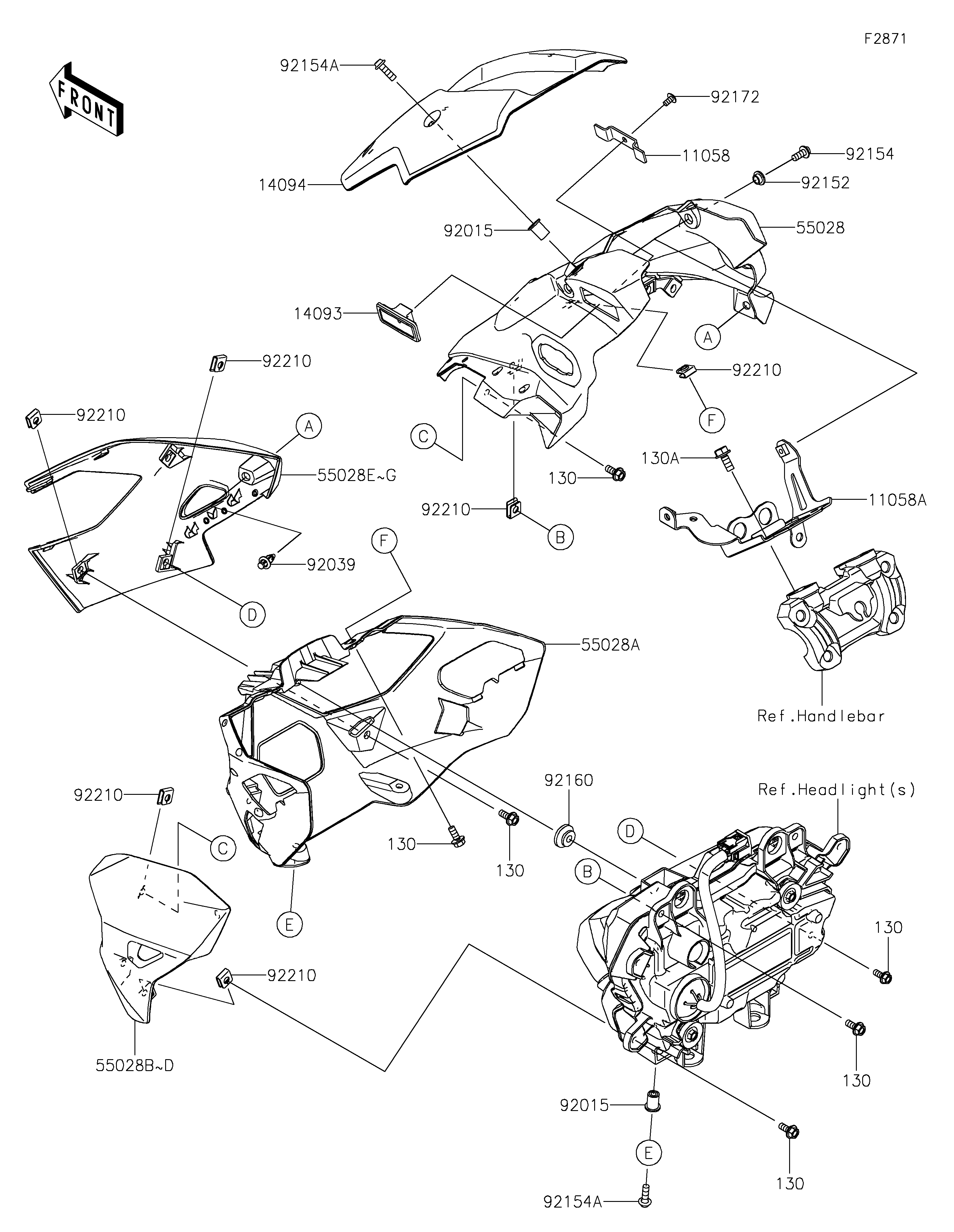

2026 Z650 S ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
14093
14094
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
92015
92015
92039
92152
92154
92154A
92154A
92160
92172
92210
92210
92210
92210
92210
92210
130
130
130
130
130
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,INNER COVER 11058 11058-1246 1
BRACKET,UPPER COVER 11058A 11058-4126 1
COVER,INNER 14093 14093-1550 1
COVER,METER 14094 14094-0442 1
COWLING,UPP,UPP 55028 55028-0927 1
COWLING,UPP,LWR 55028A 55028-0928 1
COWLING,UPP,LH,M.C.GRAY 55028B 55028-0929-51A 1 CN
COWLING,UPP,LH,C.L.GREEN 55028C 55028-0929-51P 1 CN
COWLING,UPP,LH,M.F.S.BLACK 55028D 55028-0929-739 1
COWLING,UPP,RH,M.C.GRAY 55028E 55028-0930-51A 1 CN
COWLING,UPP,RH,C.L.GREEN 55028F 55028-0930-51P 1 CN
COWLING,UPP,RH,M.F.S.BLACK 55028G 55028-0930-739 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0709 2
COLLAR,6X8X4.5 92152 92152-2395 2
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT,SOCKET,5X16 92154A 92154-1701 6
DAMPER 92160 92160-1613 1
SCREW,CROSS,4X8 92172 92172-1227 1
NUT 92210 92210-0571 10
BOLT-FLANGED,5X12 130 130BA0512 10
BOLT-FLANGED,6X14 130A 130BB0614 2
