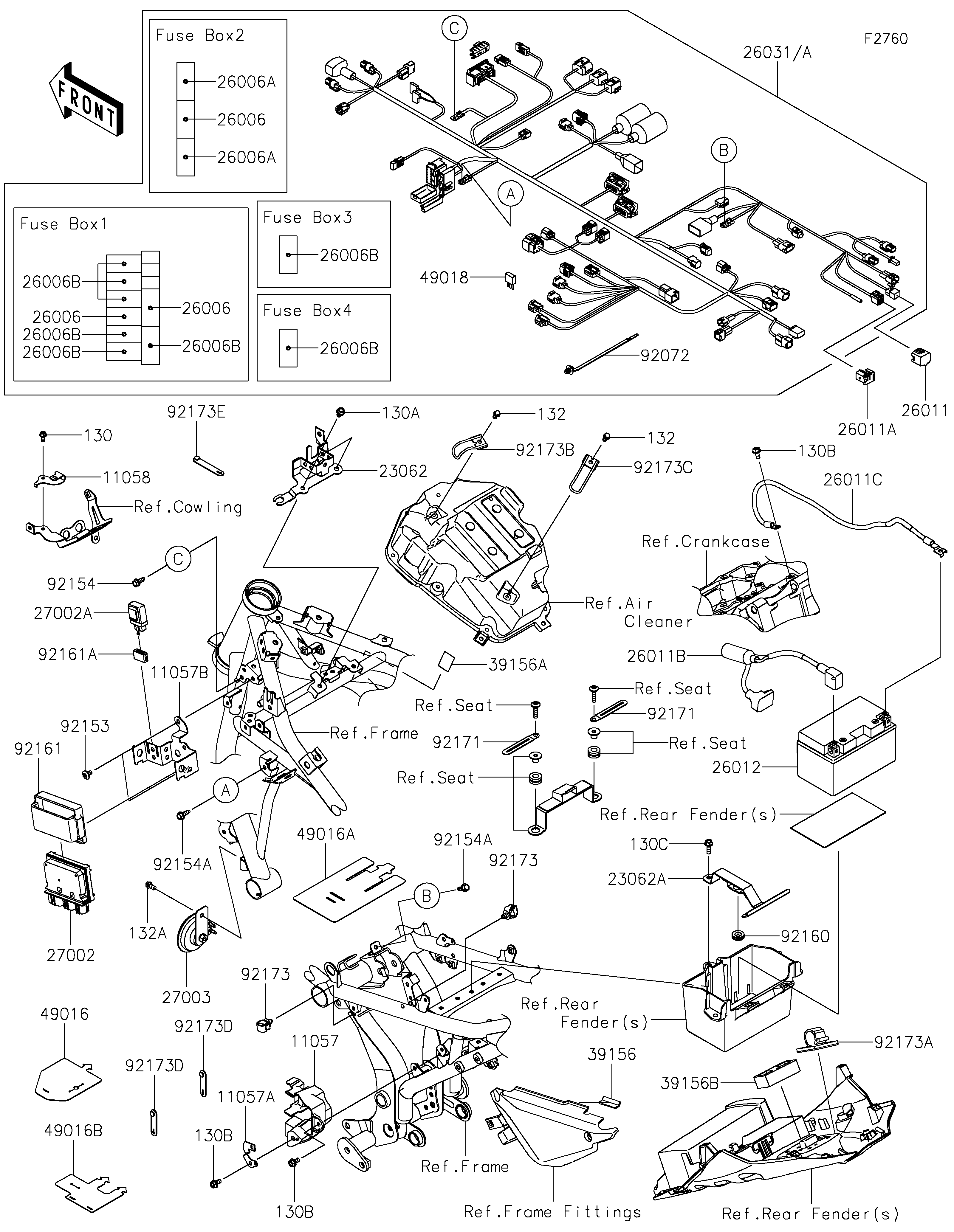

2026 Z650 S ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11057B
11057B
11058
11058
23062
23062
23062A
23062A
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
39156B
39156B
49016
49016
49016A
49016A
49016B
49016B
49018
49018
92072
92072
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92160
92160
92161
92161
92161A
92161A
92171
92171
92171
92171
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173D
92173D
92173E
92173E
130
130
130A
130A
130B
130B
130B
130B
130B
130B
130C
130C
132
132
132
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MAGNETIC SW. 11057 11057-0137 1
BRACKET,COUPLER 11057A 11057-0138 1
BRACKET,RELAY 11057B 11057-2798 1
BRACKET 11058 11058-4110 1
BRACKET,VEHICLE DOWN SENSOR 23062 23062-1258 1
BRACKET-COMP,BATTERY 23062A 23062-1269 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 8
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,DIAG CONNECTOR 26011A 26011-1901 1
WIRE-LEAD,BATTERY(+) 26011B 26011-2549 1
WIRE-LEAD,BATTERY(-) 26011C 26011-2550 1
BATTERY,YTZ10,12V 8.6AH 26012 26012-1606 1
HARNESS,MAIN 26031 26031-7082 1 CN,US
HARNESS,MAIN 26031A 26031-7083 1 CA
RELAY-ASSY 27002 27002-0061 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-0069 1
HORN 27003 27003-0158 1
PAD,40X15X2 39156 39156-2639 1
PAD,42X20X0.36 39156A 39156-2933 1
PAD 39156B 39156-2981 1
COVER-SEAL 49016 49016-0645 1
COVER-SEAL,ECU CONNECTOR 49016A 49016-0672 1
COVER-SEAL,FUEL-PUMP CONNECTOR 49016B 49016-0700 1
DIODE 49018 49018-0007 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,SOCKET,6X10 92153 92153-1800 2
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,FLANGED,6X18 92154A 92154-4008 2
DAMPER 92160 92160-1278 1
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER,15X25X8.5 92161A 92161-1443 1
CLAMP 92171 92171-0462 2
CLAMP,12MM DIA. 92173 92173-0736 2
CLAMP,DRAIN 92173A 92173-1055 1
CLAMP,A/C CASE,FR 92173B 92173-1586 1
CLAMP,A/C CASE,RR 92173C 92173-1587 1
CLAMP 92173D 92173-2198 2
CLAMP 92173E 92173-2199 3
BOLT-FLANGED,5X12 130 130BA0512 1
BOLT-FLANGED,6X10 130A 130BA0610 2
BOLT-FLANGED,6X12 130B 130BA0612 3
BOLT-FLANGED,6X18 130C 130BA0618 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 1
