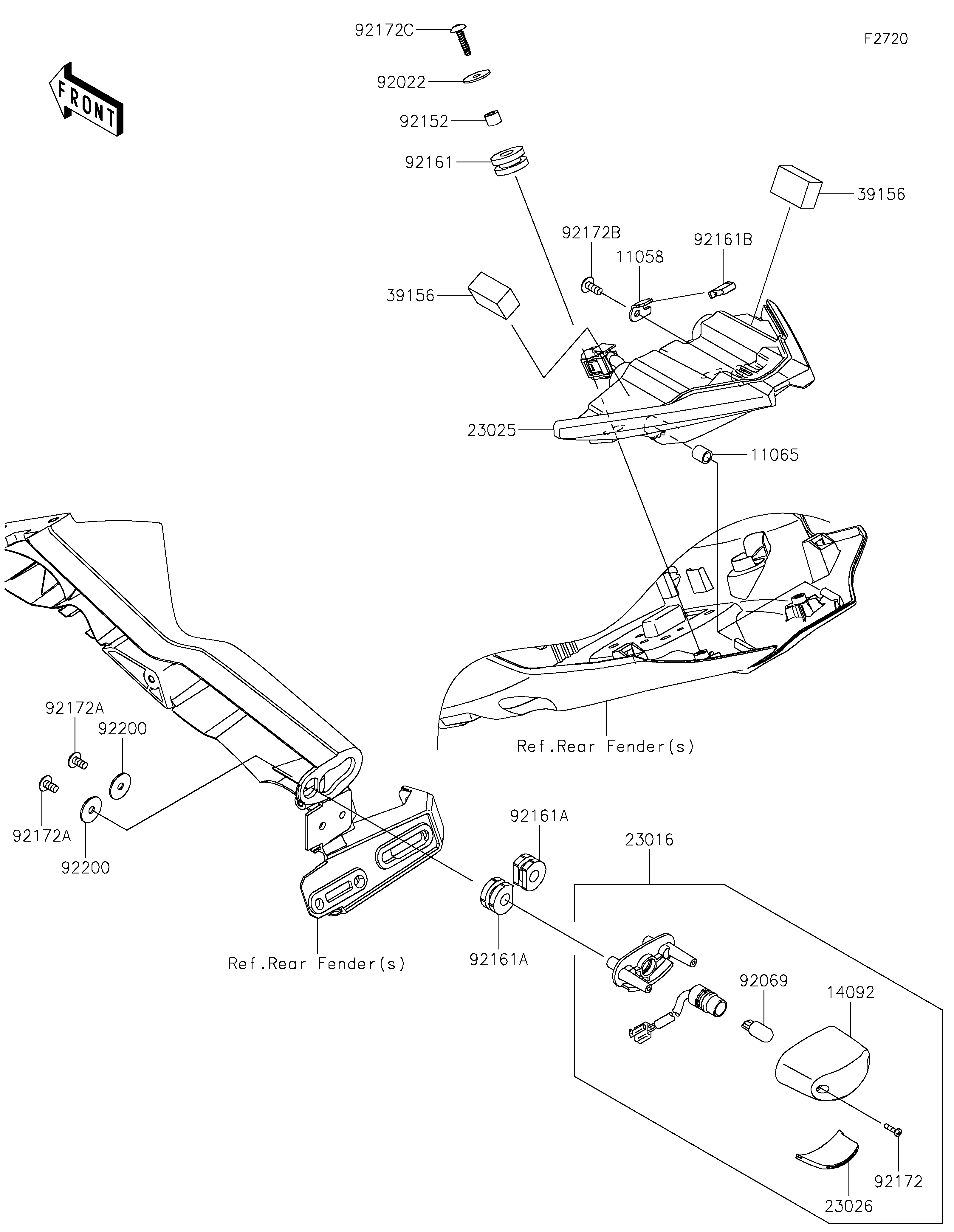

2026 Z650 S ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11058
11065
14092
23016
23025
23026
39156
39156
92022
92069
92152
92161
92161A
92161A
92161B
92172
92172A
92172A
92172B
92172C
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL LAMP 11058 11058-4104 1
CAP 11065 11065-0156 2
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0656 1
LAMP-TAIL,LED 23025 23025-0403 1
LENS,LICENCE LAMP 23026 23026-0035 1
PAD,30X15X20 39156 39156-3870 2
WASHER,5.5X20X1.2 92022 92022-1405 2
BULB,12V 5W 92069 92069-1016 1
COLLAR,5.5X10X7.5 92152 92152-2618 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0776 2
DAMPER 92161B 92161-1917 1
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
SCREW,5X12 92172B 92172-0821 1
SCREW,TAPPING,5X20 92172C 92172-1159 2
WASHER,5.5X20X1.2 92200 92200-0284 2
