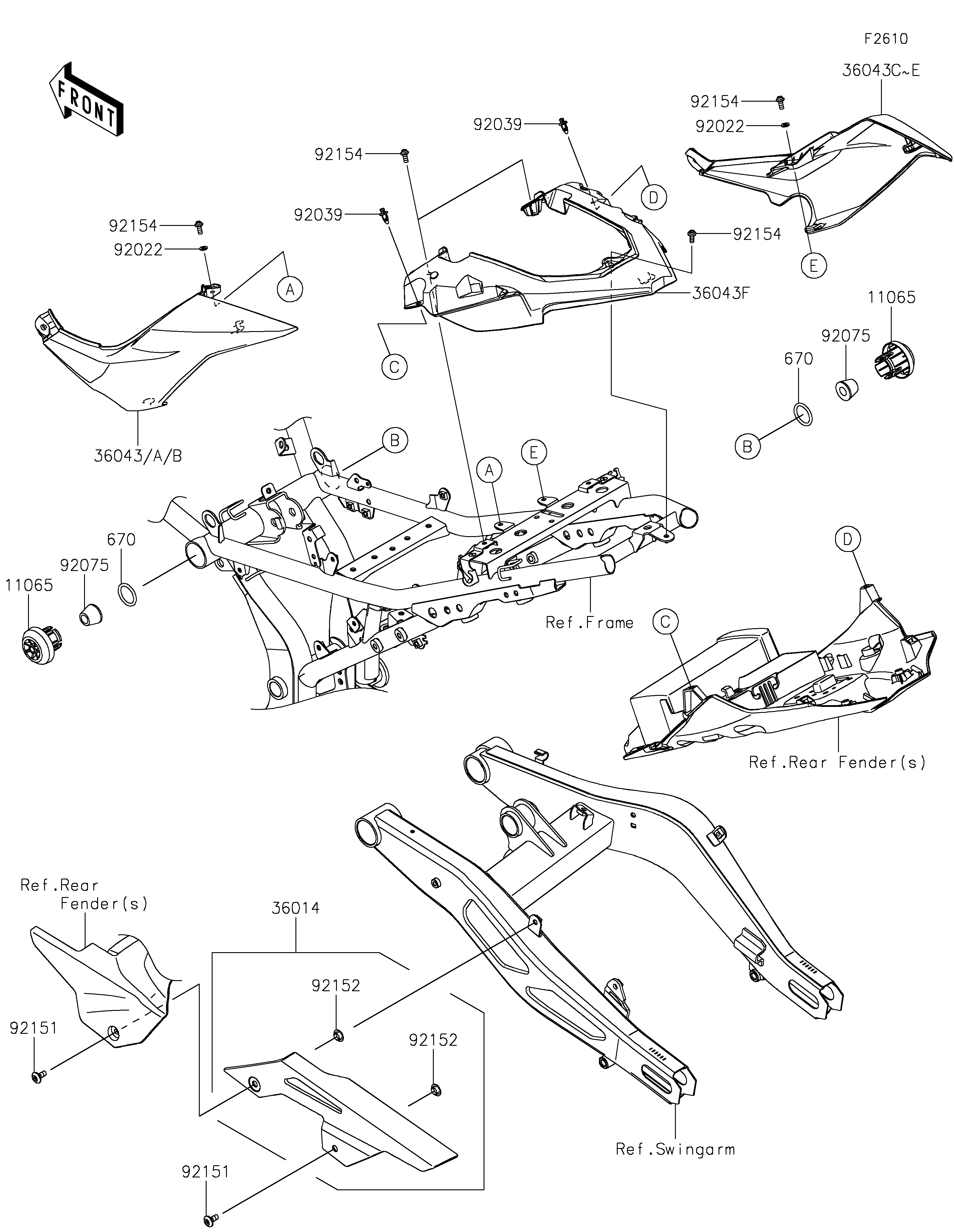

2026 Z650 S ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
36014
36043
36043A
36043B
36043C
36043D
36043E
36043F
92022
92022
92039
92039
92075
92075
92151
92151
92152
92152
92154
92154
92154
92154
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0956 2
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,LH,M.C.GRAY 36043 36043-0013-51A 1 CN
COVER-TAIL,LH,C.L.GREEN 36043A 36043-0013-51P 1 CN
COVER-TAIL,LH,M.F.S.BLACK 36043B 36043-0013-739 1
COVER-TAIL,RH,M.C.GRAY 36043C 36043-0014-51A 1 CN
COVER-TAIL,RH,C.L.GREEN 36043D 36043-0014-51P 1 CN
COVER-TAIL,RH,M.F.S.BLACK 36043E 36043-0014-739 1
COVER-TAIL,CNT 36043F 36043-0015 1
WASHER,5.1X10X1.0 92022 92022-1977 2
RIVET 92039 92039-0709 2
DAMPER,HANDLE HOLDER 92075 92075-039 2
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,8.8X11.2X4 92152 92152-0909 2
BOLT,SOCKET,5X12 92154 92154-4289 5
O RING,25MM 670 670B3025 2
