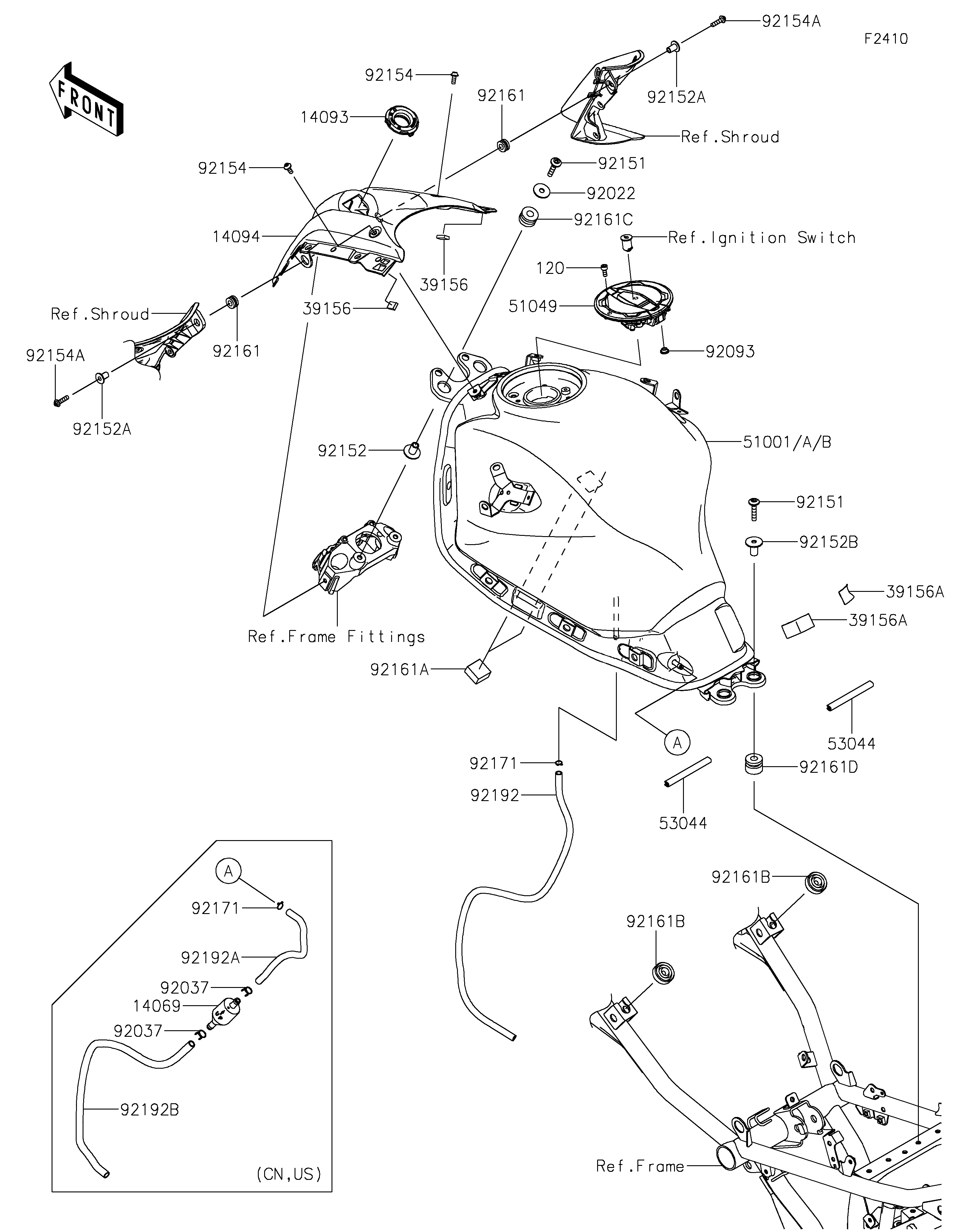

2026 Z650 S ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
14093
14094
39156
39156
39156A
39156A
51001
51001A
51001B
51049
53044
53044
92022
92037
92037
92093
92151
92151
92152
92152A
92152A
92152B
92154
92154
92154A
92154A
92161
92161
92161A
92161B
92161B
92161C
92161D
92171
92171
92192
92192A
92192B
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
COVER,IGNITION SW. 14093 14093-0952 1
COVER,TANK 14094 14094-0443 1
PAD,10X15X4 39156 39156-2180 2
PAD,42X20X0.36 39156A 39156-2933 2
TANK-COMP-FUEL,M.C.GRAY 51001 51001-0947-51A 1 CN
TANK-COMP-FUEL,M.M.G.GRAY 51001A 51001-0947-68P 1
TANK-COMP-FUEL,EBONY 51001B 51001-0947-H8 1 CN
CAP-TANK,FUEL 51049 51049-0756 1
TRIM,L=85 53044 53044-0556 2
WASHER,7X24X1.6 92022 92022-228 2
CLAMP,TUBE 92037 92037-147 2 CN,US
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 4
COLLAR,6.5X10X17.6 92152 92152-1655 2
COLLAR,5.6X16X14.2 92152A 92152-2229 2
COLLAR,6.5X10X21.1 92152B 92152-2325 2
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT,SOCKET,5X20 92154A 92154-4301 2
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER,T=13 92161A 92161-0792 2
DAMPER,14X30X10 92161B 92161-1368 2
DAMPER,10X24X15 92161C 92161-1482 2
DAMPER,10X24X19 92161D 92161-1929 2
CLAMP,8X0.7 92171 92171-1973 1 CA
TUBE,6X9X620 92192 92192-1085 1
TUBE,6X9X173/35 92192A 92192-1702 1 CN,US
TUBE,7X10.5X480 92192B 92192-1724 1 CN,US
BOLT-SOCKET,5X12 120 120CA0512 4
CLAMP,8X0.7 92171 92171-1973 2 CN,US
