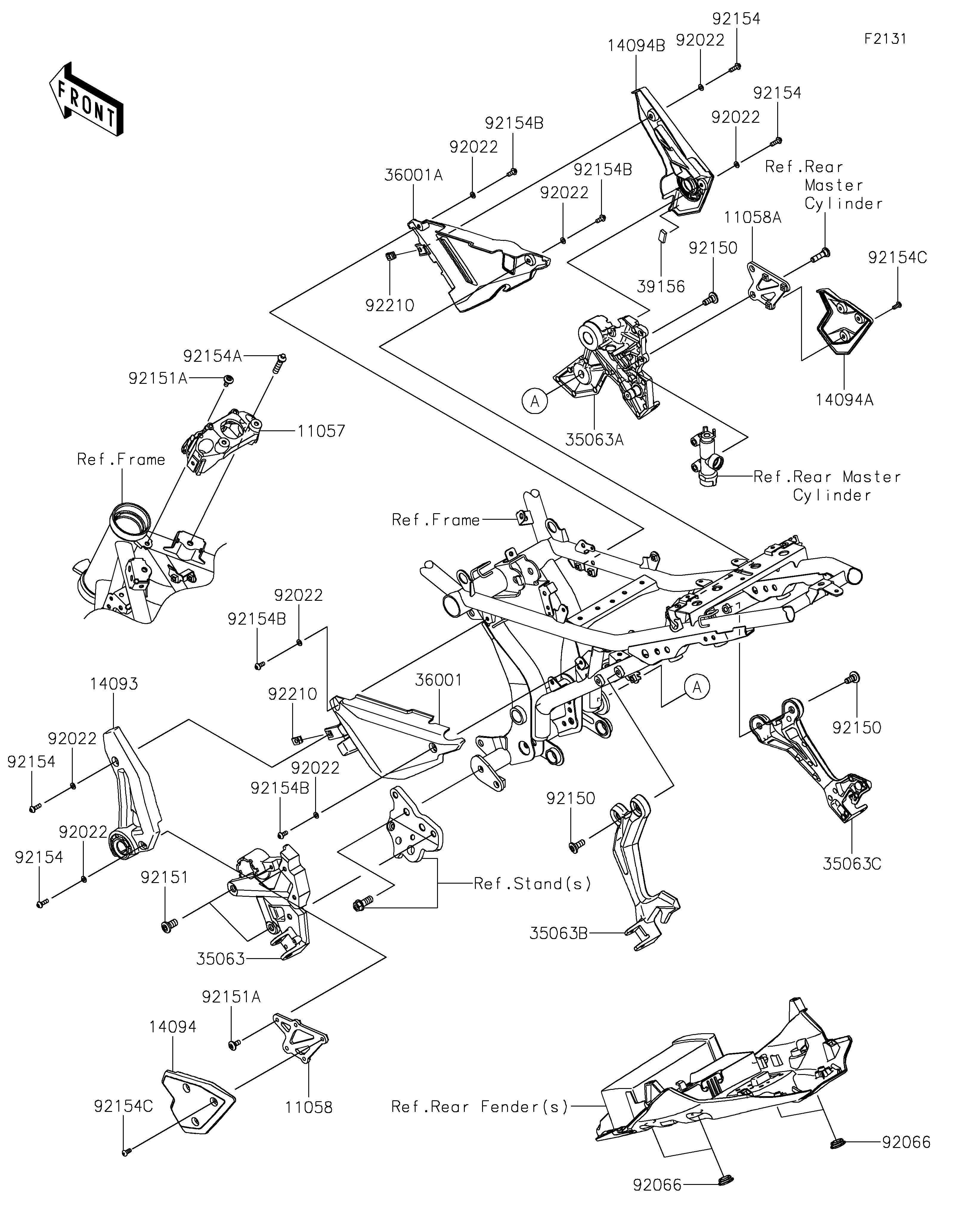

2026 Z650 S ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
14093
14094
14094A
14094B
35063
35063A
35063B
35063C
36001
36001A
39156
92022
92022
92022
92022
92022
92022
92022
92022
92066
92066
92150
92150
92150
92151
92151A
92151A
92154
92154
92154
92154
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IG. SWITCH 11057 11057-0079 1
BRACKET,STEP STAY,LH 11058 11058-4113 1
BRACKET,STEP STAY,RH 11058A 11058-4114 1
COVER,STEP,LH,EBONY 14093 14093-0480-H8 1
COVER,HEEL,LH 14094 14094-0456 1
COVER,HEEL,RH 14094A 14094-0457 1
COVER,STEP,RH,EBONY 14094B 14094-0544-H8 1
STAY,STEP,FR,LH,F.S.BLACK 35063 35063-1348-18R 1
STAY,STEP,FR,RH,F.S.BLACK 35063A 35063-1349-18R 1
STAY,STEP,RR,LH,F.S.BLACK 35063B 35063-1350-18R 1
STAY,STEP,RR,RH,F.S.BLACK 35063C 35063-1351-18R 1
COVER-SIDE,LH 36001 36001-0642 1
COVER-SIDE,RH 36001A 36001-0643 1
PAD,20X10X4 39156 39156-2839 1
WASHER,5.1X10X1.0 92022 92022-1977 8
PLUG 92066 92066-0096 4
BOLT,SOCKET,8X20 92150 92150-1760 5
BOLT,SOCKET,10X20 92151 92151-1557 2
BOLT,SOCKET,6X14 92151A 92151-1654 3
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,TORX,8X35 92154A 92154-0730 2
BOLT,SOCKET,5X12 92154B 92154-0917 4
BOLT,SOCKET,5X12 92154C 92154-1471 6
NUT,PLATE,5MM 92210 92210-0935 2
