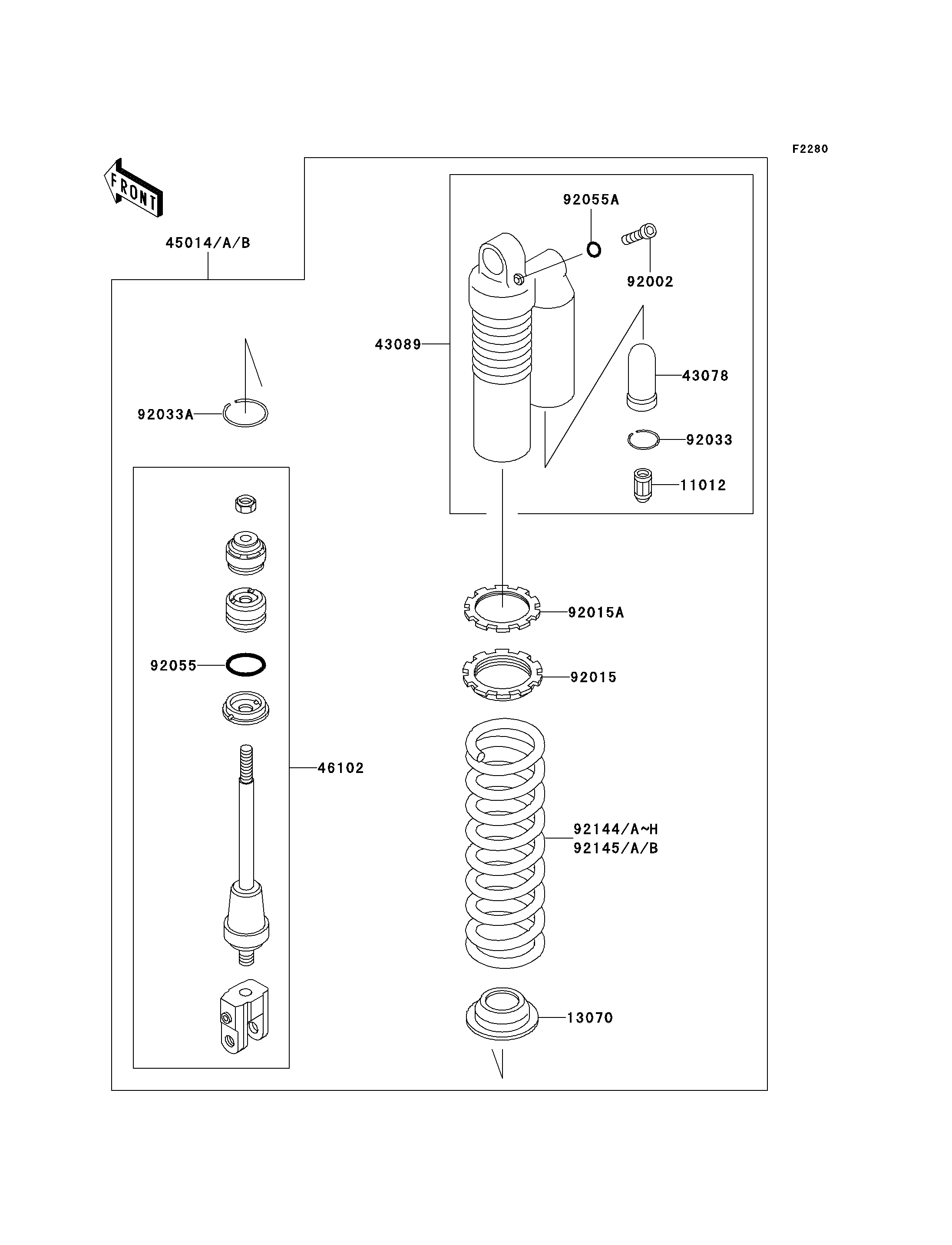

2007 KX85 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
13070
43078
43089
45014
46102
92002
92015
92015A
92033
92033A
92055
92055A
92144B
92144E
92144H
92145B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,VALVE AIR 11012 11012-1391 1
GUIDE,SPRING 13070 13070-1233 1
RESERVOIR,SHOCKABSORBER 43078 43078-1112 1
CYLINDER-SHOCKABSORBER,GOLD 43089 43089-0008-829 1
SHOCKABSORBER 45014 45014-5013 1
ROD,SHOCKABSORBER 46102 46102-1411 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1679 1
NUT,SPRING ADJUST LOCK 92015A 92015-1713 1
RING-SNAP,REARSHOCK 92033 92033-1091 1
RING-SNAP,SHOCKABSORBER 92033A 92033-1211 1
RING-O,ROD 92055 92055-1334 1
RING-O 92055A 92055-1383 1
SPRING,SHOCK,K=45.0N/MM,SIL 92144B 92144-1570-8V 1 (OPTION)
SPRING,SHOCK,K=49.0N/MM,SIL 92144E 92144-1571-8V 1 (OPTION)
SPRING,SHOCK,K=47.0N/MM,SIL 92144H 92144-1945-8V 1
SPRING,SHOCK,K=43.1N/MM,SIL 92145B 92145-1371-8V 1 (OPTION)
