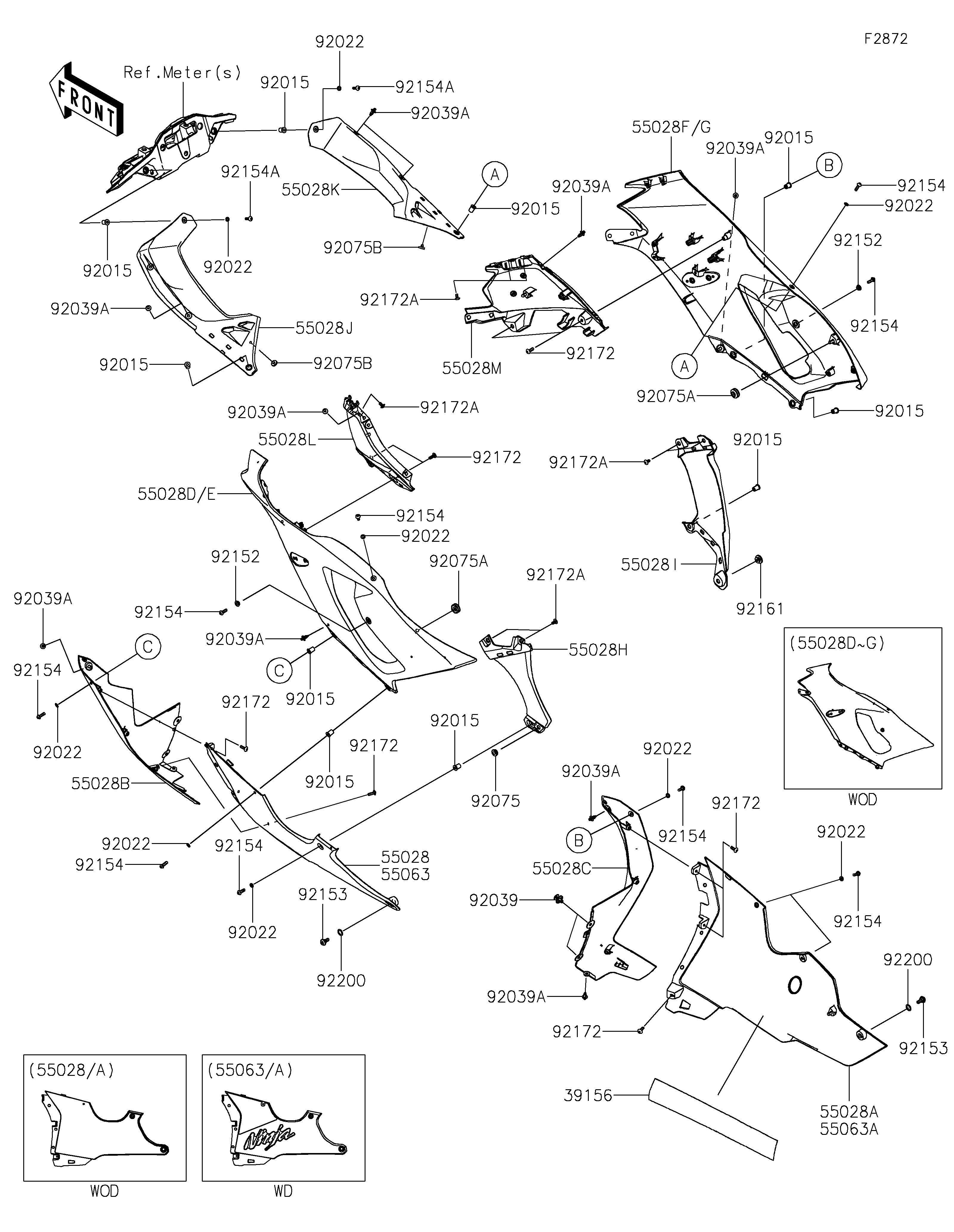

2026 NINJA® ZX™-10R ABS - Cowling Lowers
39156
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55028H
55028I
55028J
55028K
55028L
55028M
55063
55063A
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92075
92075A
92075A
92075B
92075B
92152
92152
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92161
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,49X400X0.3 | 39156 | 39156-0753 | 1 | ||
| COWLING,LWR,LH,L.GREEN | 55028 | 55028-0763-777 | 1 | ||
| COWLING,LWR,RH,L.GREEN | 55028A | 55028-0764-777 | 1 | ||
| COWLING,FR,LWR,LH | 55028B | 55028-0765 | 1 | ||
| COWLING,FR,LWR,RH | 55028C | 55028-0766 | 1 | ||
| COWLING,SIDE,LH,M.M.G.GRAY | 55028D | 55028-0935-68P | 1 | ||
| COWLING,SIDE,LH,L.GREEN | 55028E | 55028-0935-777 | 1 | ||
| COWLING,SIDE,RH,M.M.G.GRAY | 55028F | 55028-0936-68P | 1 | ||
| COWLING,SIDE,RH,L.GREEN | 55028G | 55028-0936-777 | 1 | ||
| COWLING,LWR,LH | 55028H | 55028-0937 | 1 | ||
| COWLING,LWR,RH | 55028I | 55028-0938 | 1 | ||
| COWLING,INNER,LH | 55028J | 55028-0940 | 1 | ||
| COWLING,INNER,RH | 55028K | 55028-0941 | 1 | ||
| COWLING,LWR,INNER,LH | 55028L | 55028-0942 | 1 | ||
| COWLING,LWR,INNER,RH | 55028M | 55028-0943 | 1 | ||
| COWLING,LWR,LH,M.S.BLACK | 55063 | 55063-5405-660 | 1 | ||
| COWLING,LWR,RH,M.S.BLACK | 55063A | 55063-5406-660 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 10 | ||
| WASHER,5.1X10X1.0 | 92022 | 92022-1977 | 10 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0068 | 11 | ||
| DAMPER,6X16X7 | 92075 | 92075-1011 | 1 | ||
| DAMPER | 92075A | 92075-1067 | 2 | ||
| DAMPER,BOOST SENSOR | 92075B | 92075-2113 | 2 | ||
| COLLAR | 92152 | 92152-2740 | 2 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 10 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-1701 | 2 | ||
| DAMPER,6X20X7.5 | 92161 | 92161-1937 | 1 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 10 | ||
| SCREW,TAPPING,5X10 | 92172A | 92172-0262 | 8 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-0157 | 2 |
