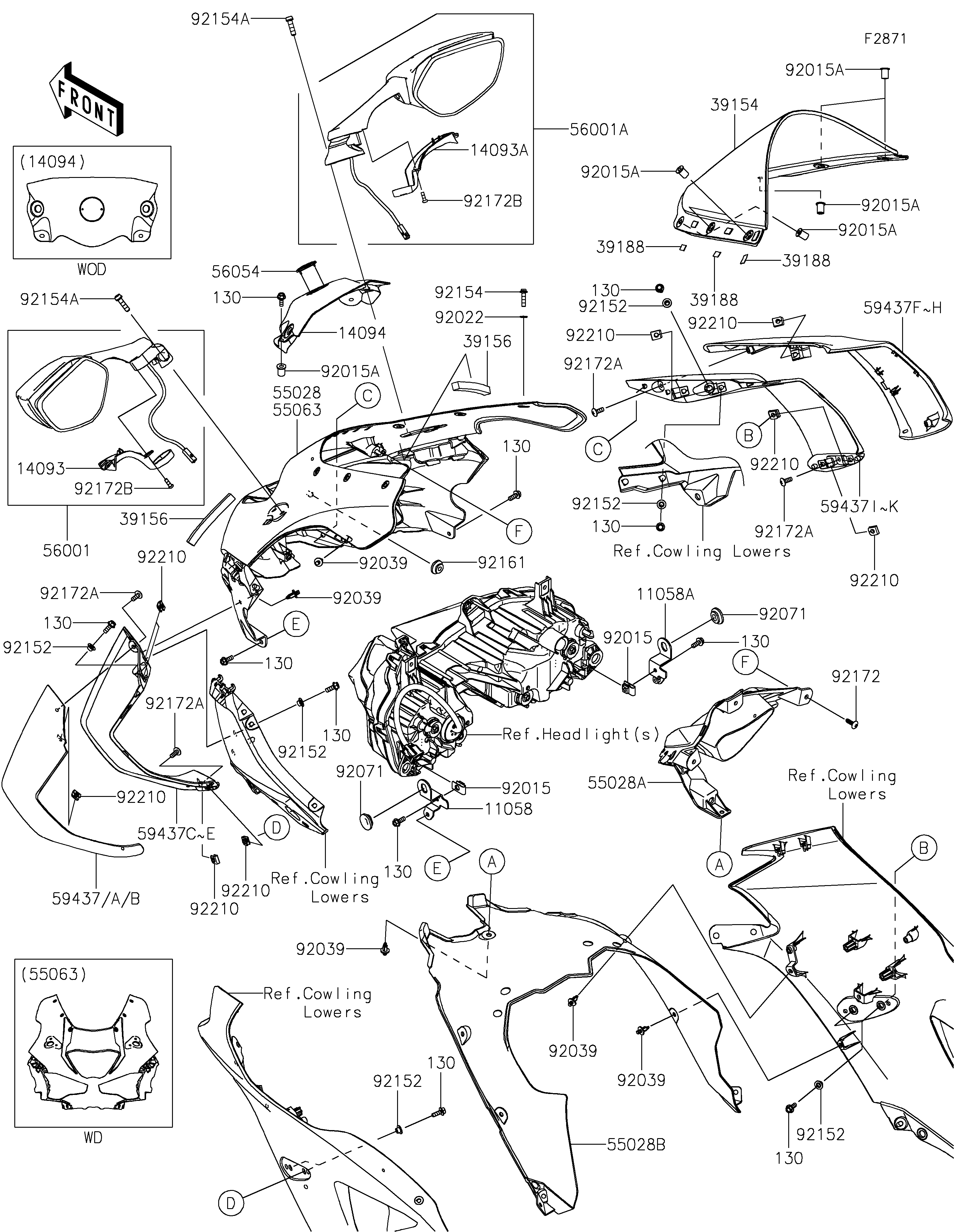

2026 Ninja ZX-10R ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11058A
11058A
14093
14093
14093A
14093A
14094
14094
39154
39154
39156
39156
39156
39156
39188
39188
39188
39188
39188
39188
55028
55028
55028A
55028A
55028B
55028B
55063
55063
56001
56001
56001A
56001A
56054
56054
59437
59437
59437A
59437A
59437B
59437B
59437C
59437C
59437D
59437D
59437E
59437E
59437F
59437F
59437G
59437G
59437H
59437H
59437I
59437I
59437J
59437J
59437K
59437K
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92071
92071
92071
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11058 11058-4339 1
BRACKET,RH 11058A 11058-4340 1
COVER,MIRROR,LH 14093 14093-0343 1
COVER,MIRROR,RH 14093A 14093-0344 1
COVER,METER 14094 14094-0498 1
WINDSHIELD 39154 39154-0462 1
PAD,10X10X90 39156 39156-2721 2
TAPE 39188 39188-0022 6
COWLING,UPP,M.M.G.GRAY 55028 55028-0933-68P 1
COWLING,RAM AIR,EBONY 55028A 55028-0934-H8 1
COWLING,FR,INNER 55028B 55028-0939 1
COWLING,UPP,L.GREEN 55063 55063-5413-777 1
MIRROR-ASSY,LH 56001 56001-0425 1
MIRROR-ASSY,RH 56001A 56001-0426 1
MARK,UPP COWL.,RIVER 56054 56054-2900 1
STABILIZER,WING,OUT,LH,M.S.BLK 59437 59437-0041-660 1
STABILIZER,WING,OUT,LH,L.GREEN 59437A 59437-0041-777 1 CN
STABILIZER,WING,OUT,LH,BLUE 59437B 59437-0041-DB 1
STABILIZER,WING,IN,LH,M.S.BLK 59437C 59437-0042-660 1
STABILIZER,WING,IN,LH,L.GREEN 59437D 59437-0042-777 1 CN
STABILIZER,WING,IN,LH,BLUE 59437E 59437-0042-DB 1
STABILIZER,WING,OUT,RH,M.S.BLK 59437F 59437-0043-660 1
STABILIZER,WING,OUT,RH,L.GREEN 59437G 59437-0043-777 1 CN
STABILIZER,WING,OUT,RH,BLUE 59437H 59437-0043-DB 1
STABILIZER,WING,IN,RH,M.S.BLK 59437I 59437-0044-660 1
STABILIZER,WING,IN,RH,L.GREEN 59437J 59437-0044-777 1 CN
STABILIZER,WING,IN,RH,BLUE 59437K 59437-0044-DB 1
NUT,5MM 92015 92015-1710 2
NUT,WELL,5MM 92015A 92015-1757 8
WASHER,5.1X10X1.0 92022 92022-1977 6
RIVET 92039 92039-0068 9
GROMMET,20X24X7.5 92071 92071-0766 2
COLLAR,5.3X7.3X5.3 92152 92152-2190 10
BOLT,SOCKET,5X20 92154 92154-0210 6
BOLT,SOCKET,6X22 92154A 92154-1724 4
DAMPER 92161 92161-1531 2
SCREW,TAPPING,5X16 92172 92172-0238 4
SCREW,TAPPING,5X14 92172A 92172-0265 4
SCREW-PAN-CROS,4X10 92172B 92172-0871 2
NUT 92210 92210-0571 10
BOLT-FLANGED,5X14 130 130BA0514 16
