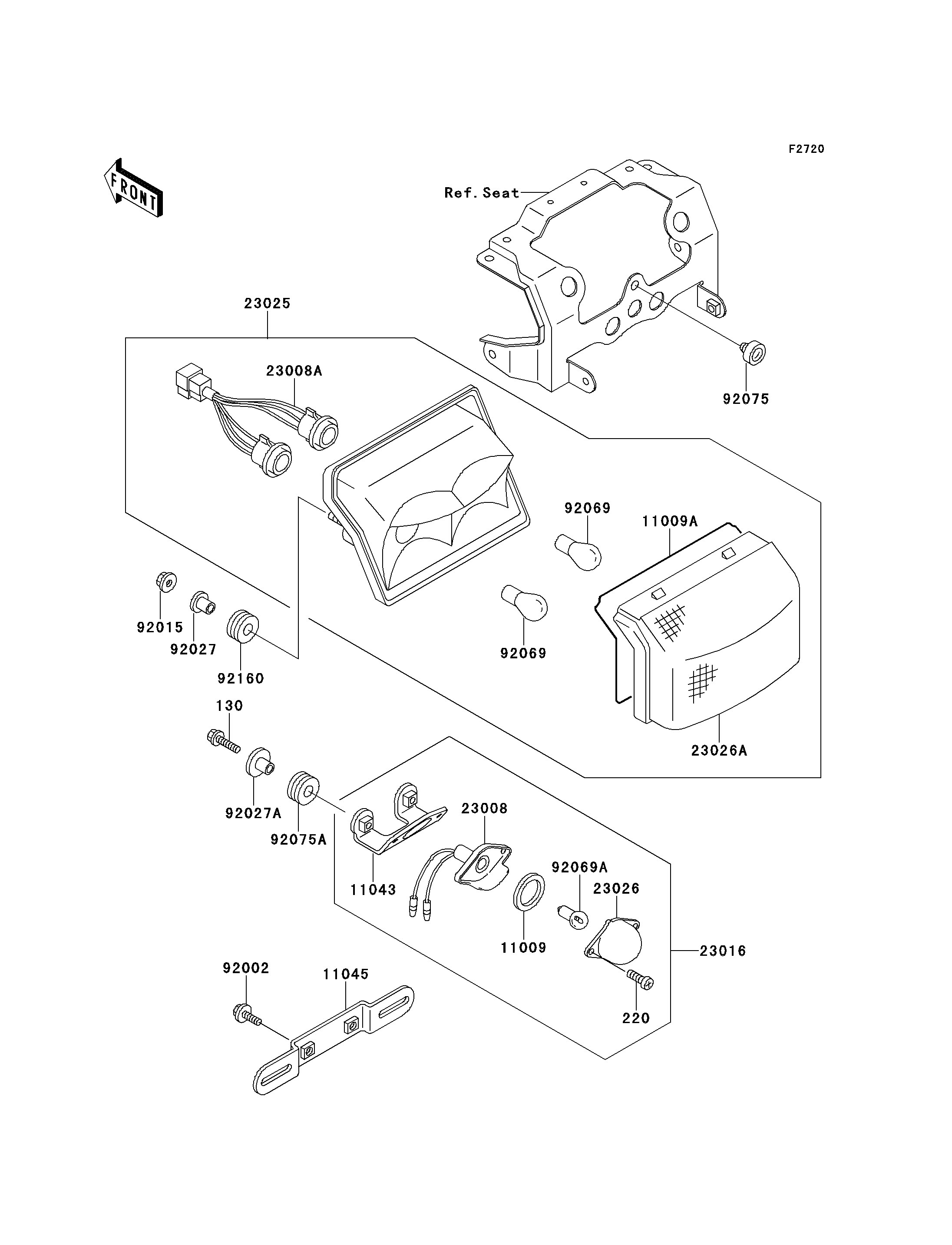

1990 Ninja® ZX™-6 - Tail Lamp

DOWNLOAD PDF
SELECT A NEW PART
130
220
11009
11009A
11043
11045
23008
23008A
23016
23025
23026
23026A
92002
92015
92027
92027A
92069
92069
92069A
92075
92075A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130H0625 2
SCREW-PAN-CROS 220 220B0410 2
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
GASKET,TAIL LAMP LENS 11009A 11009-1876 1
BRACKET,LICENSE PLATE LAMP 11043 11043-1497 1
BRACKET,LICENSE 11045 11045-1387 1
SOCKET-ASSY,LICENSE PLATE LAMP 23008 23008-1221 1
SOCKET-ASSY,TAIL LAMP 23008A 23008-1364 1
LAMP-ASSY,LICENSE PLATE 23016 23016-1053 1
LAMP-TAIL 23025 23025-1202 1
LENS,LAMP 23026 23026-1054 1
LENS,TAIL LAMP 23026A 23026-1118 1
BOLT,6X14 92002 92002-1351 2
NUT,FLANGED,6MM 92015 92015-1193 2
COLLAR 92027 92027-1183 2
COLLAR,L=13.1 92027A 92027-251 2
BULB,12V 27/8W 92069 92069-059 2
BULB,12V 8W 92069A 92069-1012 1
DAMPER 92075 92075-035 1
DAMPER 92075A 92075-1690 2
DAMPER 92160 92160-1162 2
