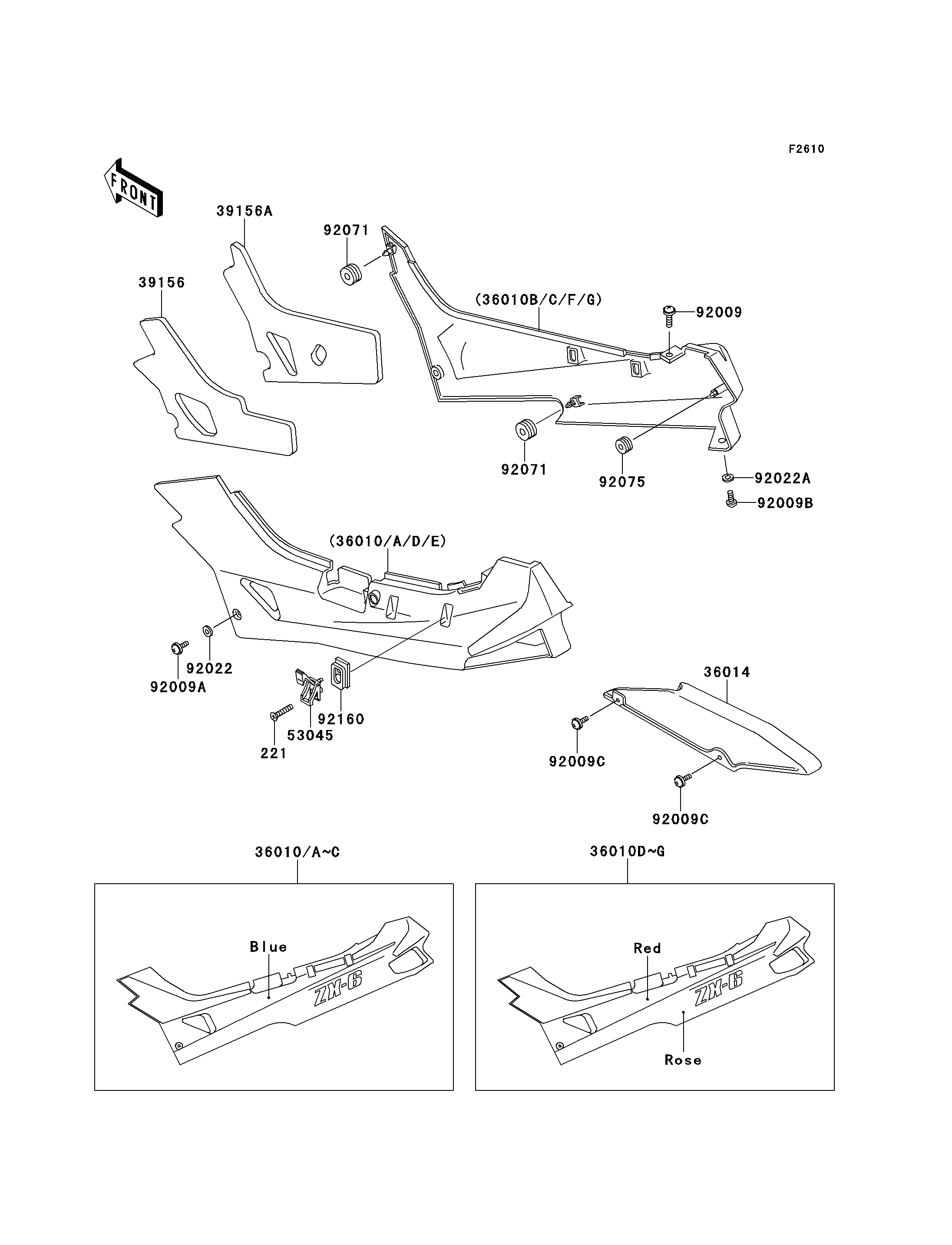

1990 Ninja® ZX™-6 - Side Cover/Chain Case
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 221 | 221E0625 | 4 | ||
| CASE-CHAIN | 36014 | 36014-1164 | 1 | ||
| PAD,SIDE COVER,LH | 39156 | 39156-1202 | 1 | ||
| PAD,SIDE COVER,RH | 39156A | 39156-1203 | 1 | ||
| HOOK-ASSY,TOOL BOX | 53045 | 53045-1053 | 4 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 2 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 2 | ||
| SCREW,5X16,BLACK | 92009B | 92009-1301 | 2 | ||
| SCREW,6X10 | 92009C | 92009-1402 | 2 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 2 | ||
| GROMMET | 92071 | 92071-056 | 4 | ||
| DAMPER | 92075 | 92075-1629 | 2 | ||
| DAMPER,ROPE HOOK | 92160 | 92160-1042 | 4 | ||
| COVER-SIDE,LH,BLUE/BLUE | 36010 | 36010-5368-GX | 1 | CN | |
| COVER-SIDE,LH,BLUE/BLUE | 36010A | 36010-5368-HK | 1 | CAUS | |
| COVER-SIDE,RH,BLUE/BLUE | 36010B | 36010-5369-GX | 1 | CN | |
| COVER-SIDE,RH,BLUE/BLUE | 36010C | 36010-5369-HK | 1 | CAUS | |
| COVER-SIDE,LH,RED/ROSE OPERA | 36010D | 36010-5370-HF | 1 | CN | |
| COVER-SIDE,LH,RED/ROSE OPERA | 36010E | 36010-5370-HP | 1 | CAUS | |
| COVER-SIDE,RH,RED/ROSE OPERA | 36010F | 36010-5371-HF | 1 | CN | |
| COVER-SIDE,RH,RED/ROSE OPERA | 36010G | 36010-5371-HP | 1 | CAUS |
