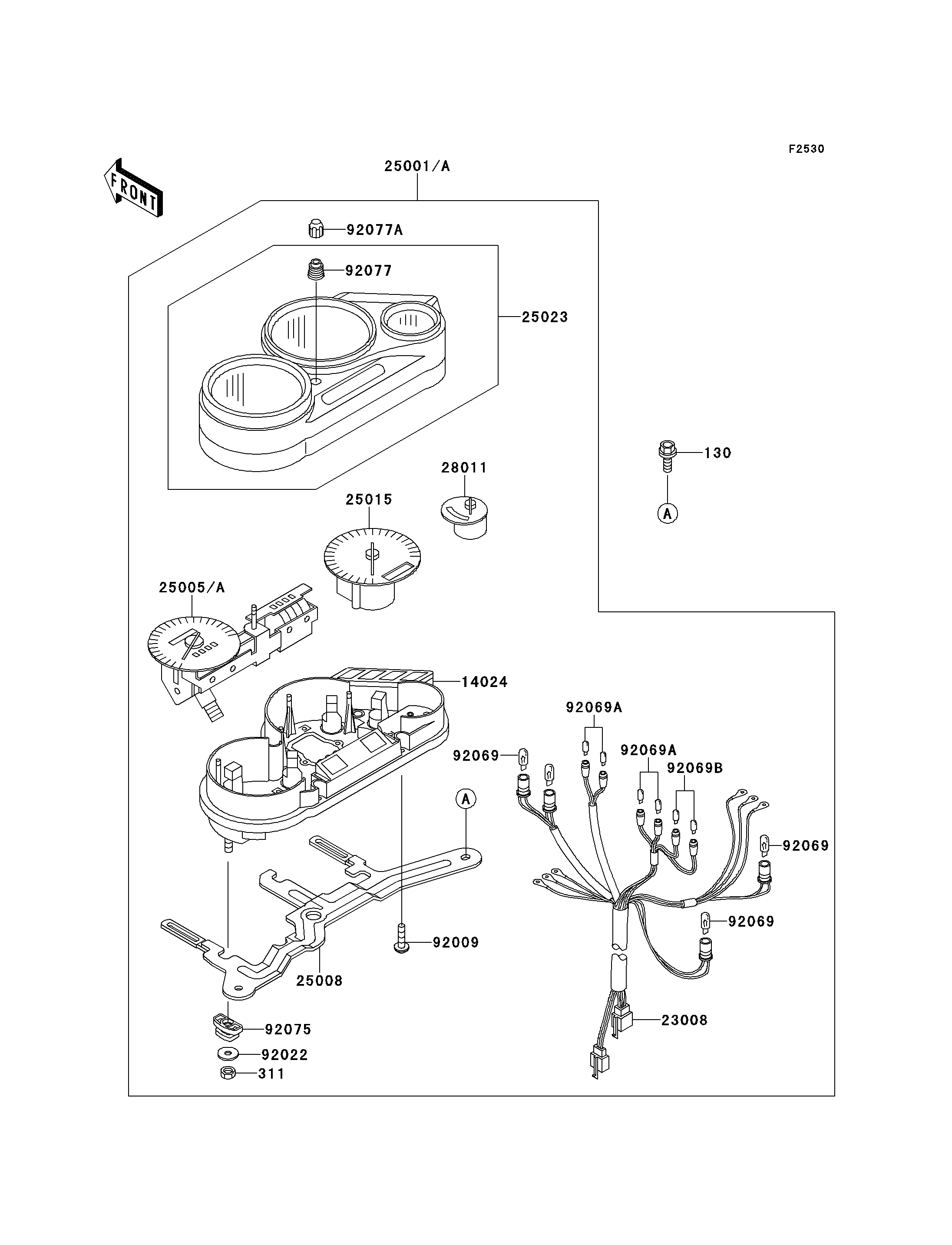

1990 Ninja® ZX™-6 - Meter

DOWNLOAD PDF
SELECT A NEW PART
130
311
14024
23008
25008
25015
25023
28011
92009
92022
92069
92069
92069
92069A
92069A
92069B
92075
92077
92077A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130C0614 2
NUT-HEX 311 311B0500 3
COVER,METER HOUSING 14024 14024-1887 1
SOCKET-ASSY,METER 23008 23008-1419 1
BRACKET-METER 25008 25008-1160 1
TACHOMETER,X1000R/MIN 25015 25015-1289 1
COVER-METER CASE,UPP 25023 25023-1167 1
METER,TEMP 28011 28011-1116 1
SCREW,TAPPING,4X16 92009 92009-1163 4
WASHER,5.2X16X1.2 92022 92022-263 3
BULB,12V 1.7W 92069 92069-1059 4
BULB,12V 3W 92069A 92069-1068 4
BULB,12V 1.7W 92069B 92069-1070 2
DAMPER,METER BRACKET 92075 92075-1495 3
KNOB,TRIP RESET 92077 92077-1087 1
KNOB,TRIP RESET KNOB 92077A 92077-1094 1
METER-ASSY,MPH 25001 25001-1792 1 CAUS
METER-ASSY,KPH 25001A 25001-1793 1 CN
SPEEDOMETER,MPH 25005 25005-1437 1 CAUS
SPEEDOMETER,KPH 25005A 25005-1438 1 CN
