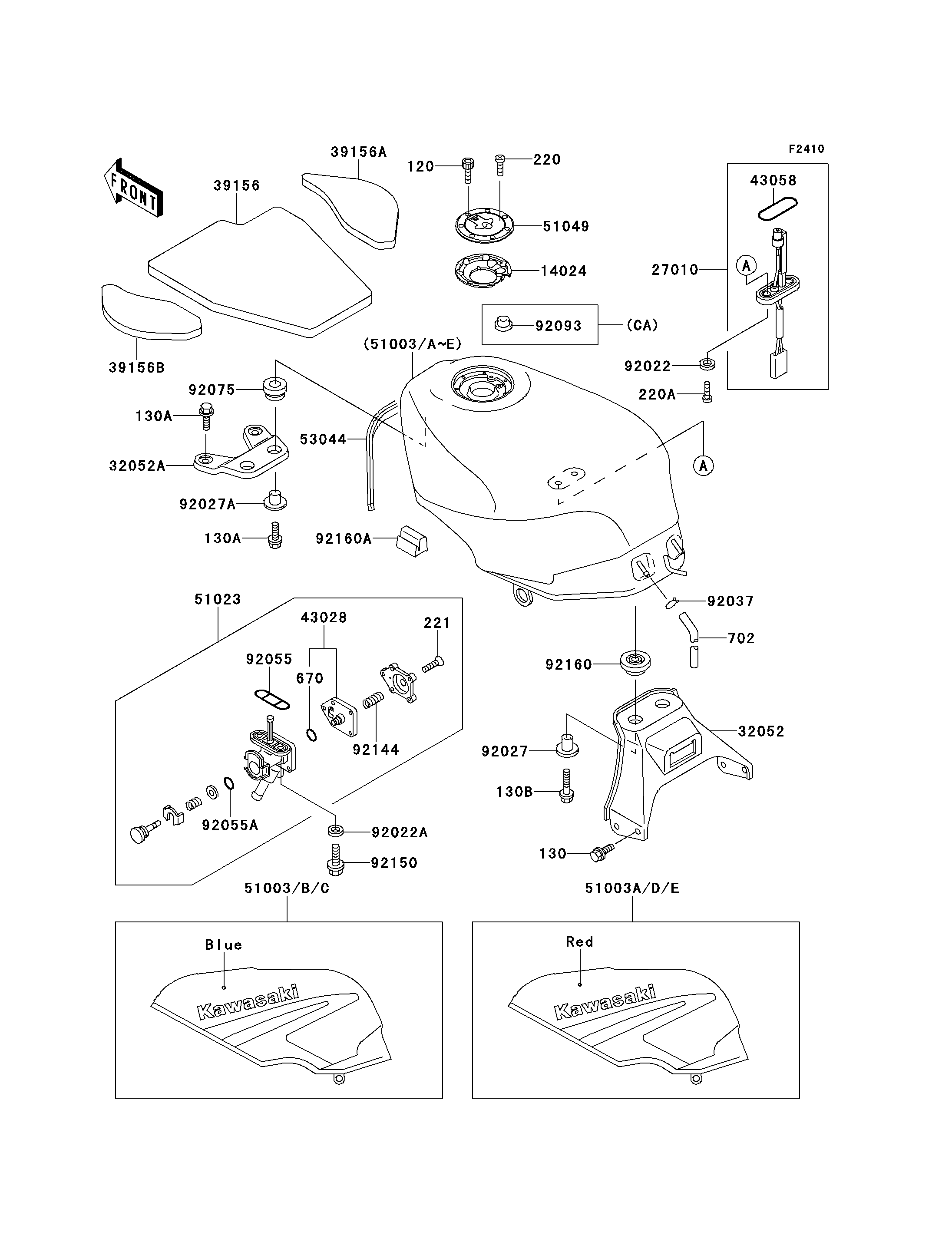

1990 Ninja® ZX™-6 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14024
14024
27010
27010
32052
32052
32052A
32052A
39156
39156
39156A
39156A
39156B
39156B
43028
43028
43058
43058
51023
51023
51049
51049
53044
53044
92022
92022
92022A
92022A
92027
92027
92027A
92027A
92037
92037
92055
92055
92055A
92055A
92075
92075
92144
92144
92150
92150
92160
92160
120
120
130
130
130A
130A
130A
130A
130B
130B
220
220
220A
220A
221
221
670
670
702
702
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TANK CAP 14024 14025-1913 1
SWITCH,FUEL LEVEL 27010 27010-1096 1
BRACKET-TANK,RR 32052 32052-1302 1
BRACKET-TANK,FR 32052A 32052-1303 1
PAD,FUEL TANK,CNT 39156 39156-1204 1
PAD,FUEL TANK,RH 39156A 39156-1205 1
PAD,FUEL TANK,LH 39156B 39156-1206 1
DIAPHRAGM,TAP 43028 43028-1068 1
RING,FUEL LEVEL SWITCH 43058 43058-1004 1
TAP-ASSY,FUEL 51023 51023-1171 1
CAP-TANK,FUEL 51049 51049-1079 1
TRIM 53044 53044-1203 1
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,6.2X11X1.5 92022A 92022-183 2
COLLAR,L=16.1 92027 92027-1847 2
COLLAR,L=13.1 92027A 92027-251 2
CLAMP,TUBE 92037 92037-010 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP BOTTOM 92055A 92055-1377 1
DAMPER 92075 92075-1690 2
SPRING,TAP DIAPHRAGM 92144 92144-1119 1
BOLT,FLANGED,6X16 92150 92150-1358 2
DAMPER 92160 92160-1046 2
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED 130 130J0610 4
BOLT-FLANGED 130A 130J0620 4
BOLT-FLANGED,6X25 130B 130J0625 2
SCREW-PAN-CROS 220 220C0508 1
SCREW-PAN-CROS 220A 220X0514 2
SCREW-CSK-CROS,4X14 221 221B0414 5
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X400 702 702A07400 1
DAMPER,FUEL TANK 92160A 92160-1197 2
TANK-COMP-FUEL,C.A.BLUE 51003 51003-5167-HL 1 CA
TANK-COMP-FUEL,C.C.RED 51003A 51003-5168-HR 1 CA
TANK-COMP-FUEL,C.A.BLUE 51003B 51003-5169-FC 1 CN
TANK-COMP-FUEL,C.A.BLUE 51003C 51003-5169-HL 1 US
TANK-COMP-FUEL,C.C.RED 51003D 51003-5170-HR 1 US
TANK-COMP-FUEL,C.C.RED 51003E 51003-5170-L1 1 CN
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
