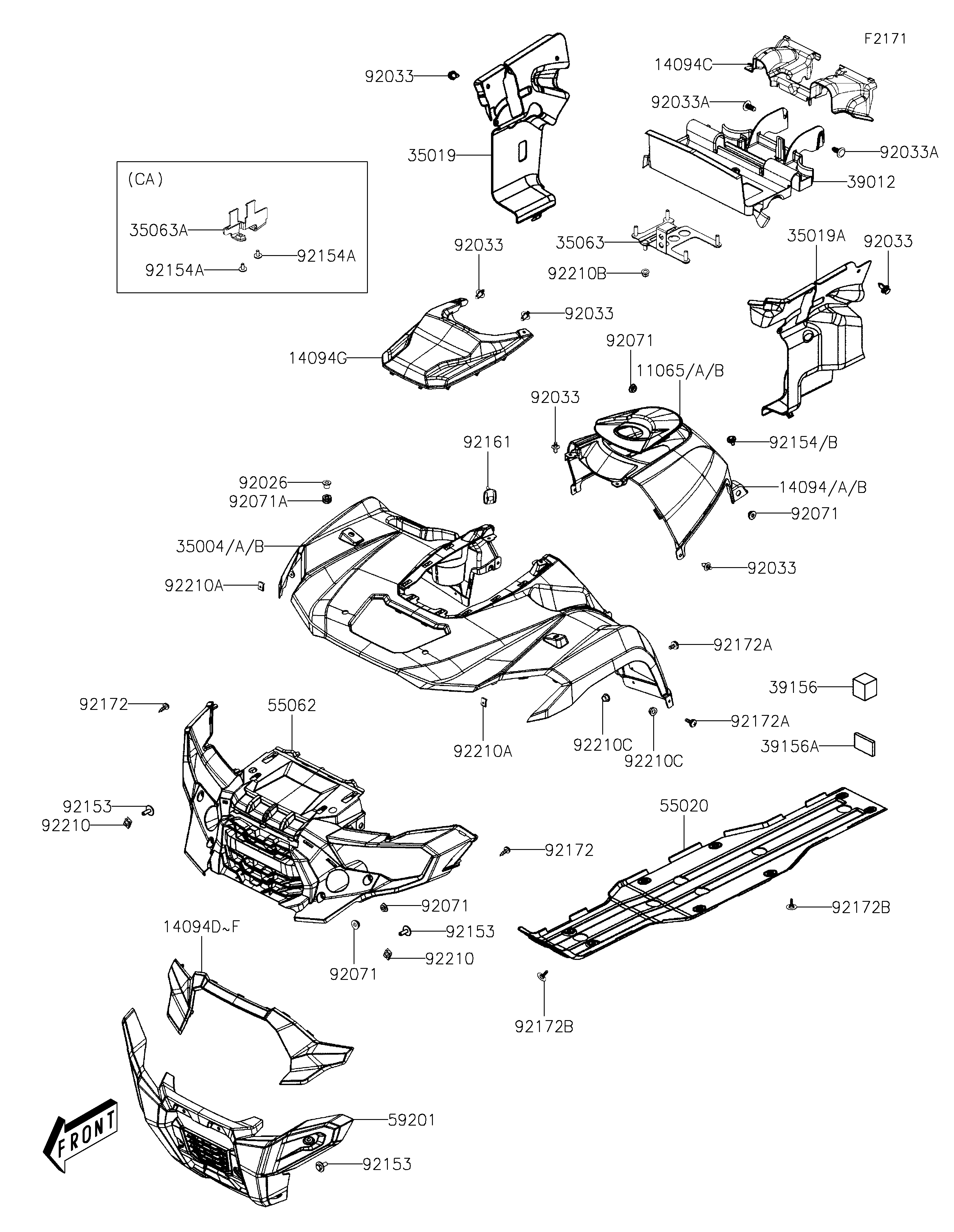

2025 BRUTE FORCE® 450 4x4 - Front Fender(s)
11065
11065
11065B
11065B
14094
14094
14094B
14094B
14094C
14094C
14094D
14094D
14094F
14094F
14094G
14094G
35004
35004
35004B
35004B
35019
35019
35019A
35019A
35063
35063
35063A
35063A
39012
39012
39156
39156
39156A
39156A
55020
55020
55062
55062
59201
59201
92026
92026
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033A
92033A
92033A
92033A
92071
92071
92071
92071
92071
92071
92071
92071
92071A
92071A
92153
92153
92153
92153
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210C
92210C
92210C
92210C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TANK COVER,B.WHITE | 11065 | 11065-Y055-932 | 1 | ||
| CAP,TANK COVER,G.BLUE | 11065B | 11065-Y055-984 | 1 | ||
| COVER,FUEL TANK,B.WHITE | 14094 | 14094-Y006-932 | 1 | ||
| COVER,FUEL TANK,G.BLUE | 14094B | 14094-Y006-984 | 1 | ||
| COVER,WATERPROOF,S.BLACK | 14094C | 14094-Y014-933 | 1 | ||
| COVER,FR GRILLE,B.WHITE | 14094D | 14094-Y016-932 | 1 | ||
| COVER,FR GRILLE,G.BLUE | 14094F | 14094-Y016-984 | 1 | ||
| COVER,TOP,S.BLACK | 14094G | 14094-Y017-933 | 1 | ||
| FENDER-FRONT,B.WHITE | 35004 | 35004-Y015-932 | 1 | ||
| FENDER-FRONT,G.BLUE | 35004B | 35004-Y015-984 | 1 | ||
| FLAP,RH,S.BLACK | 35019 | 35019-Y008-933 | 1 | ||
| FLAP,LH,S.BLACK | 35019A | 35019-Y009-933 | 1 | ||
| STAY,ECU | 35063 | 35063-Y054 | 1 | ||
| STAY,CANISTER | 35063A | 35063-Y057 | 1 | CA | |
| CASE-STORAGE,ELECTRICAL,S.BLK | 39012 | 39012-Y003-933 | 1 | ||
| PAD,TANK COVER,RR | 39156 | 39156-Y010 | 1 | ||
| PAD,TANK COVER,FR | 39156A | 39156-Y011 | 1 | ||
| GUARD,SKID,S.BLACK | 55020 | 55020-Y022-933 | 1 | ||
| COVER-HEAD LAMP,S.BLACK | 55062 | 55062-Y001-933 | 1 | ||
| BUMPER,FR,S.BLACK | 59201 | 59201-Y002-933 | 1 | ||
| SPACER | 92026 | 92026-Y015 | 4 | ||
| RIVET | 92033 | 92033-Y010 | 8 | ||
| RIVET | 92033A | 92033-Y032 | 2 | ||
| GROMMET | 92071 | 92071-Y005 | 6 | ||
| GROMMET | 92071A | 92071-Y009 | 4 | ||
| BOLT,6X16 | 92153 | 92153-Y018 | 10 | ||
| BOLT,6X12 | 92154 | 92154-Y032 | 2 | ||
| BOLT,5X16 | 92154A | 92154-Y085 | 2 | CA | |
| DAMPER,FR FENDER | 92161 | 92161-Y063 | 3 | ||
| SCREW,TAPPING,5X12 | 92172 | 92172-Y038 | 19 | ||
| SCREW,6X20 | 92172A | 92172-Y041 | 8 | ||
| SCREW | 92172B | 92172-Y106 | 10 | ||
| NUT,6MM | 92210 | 92210-Y011 | 2 | ||
| NUT,5MM | 92210A | 92210-Y016 | 4 | ||
| NUT,6MM | 92210B | 92210-Y026 | 2 | ||
| NUT | 92210C | 92210-Y031 | 8 |
