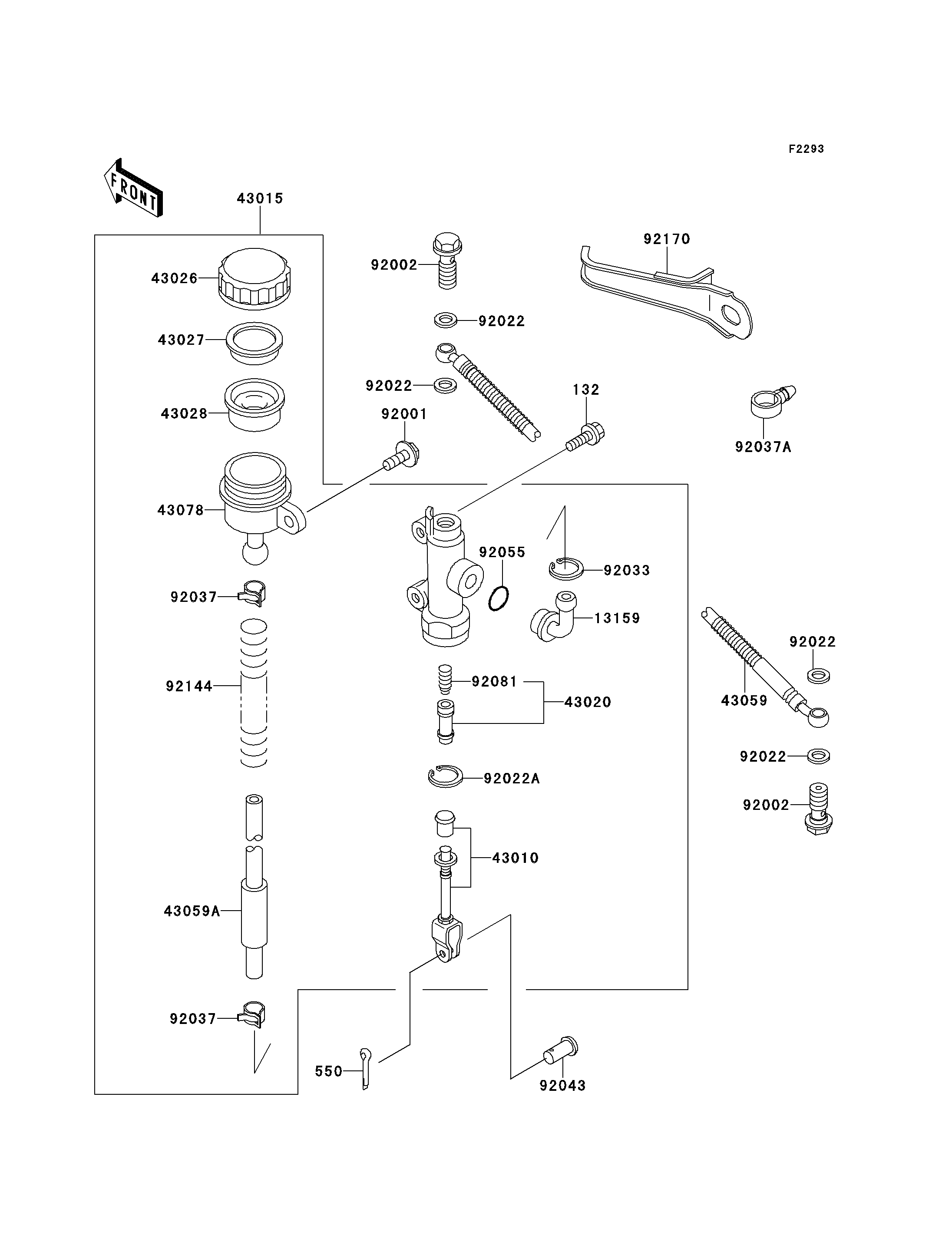

1990 Ninja® ZX™-6 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
550
13159
43010
43015
43020
43026
43027
43028
43059
43059A
43078
92001
92002
92002
92022
92022
92022
92022
92022A
92033
92037
92037
92037A
92043
92055
92081
92144
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0830 2
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1055 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1422 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1054 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR 43059 43059-1574 1
HOSE-BRAKE 43059A 43059-1640 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
BOLT,W/P,6X16 92001 92001-1860 1
BOLT,OIL,L=23 92002 92002-1888 2
WASHER,10.5X15X1.5 92022 43067-001 4
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1827 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
SPRING,PROTECTOR 92144 92144-1513 1
CLAMP,HOSE 92170 92170-1171 1
