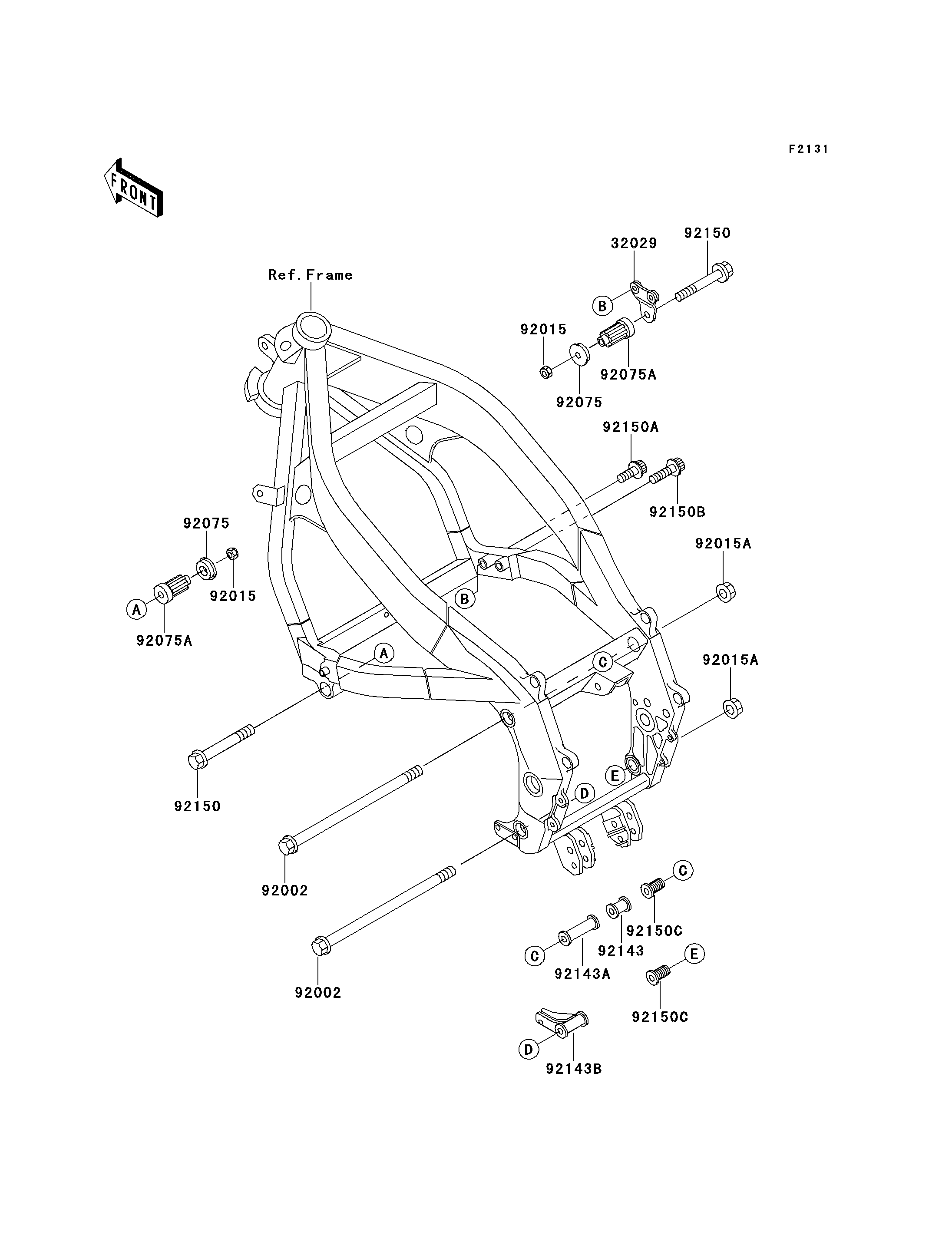

1990 Ninja® ZX™-6 - Frame Fitting

DOWNLOAD PDF
SELECT A NEW PART
32029
92002
92002
92015
92015
92015A
92015A
92075
92075
92075A
92075A
92143
92143A
92143B
92150
92150
92150A
92150B
92150C
92150C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR,RH 32029 32029-1713 1
BOLT,FLANGED,10X280 92002 92002-1530 2
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,FLANGED,10MM 92015A 92015-1428 2
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 2
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1739 2
COLLAR,L=34 92143 92143-1276 1
COLLAR,L=72.5 92143A 92143-1421 1
COLLAR,ENGINE MOUNT 92143B 92143-1439 1
BOLT,FLANGED,10X87 92150 92002-1298 2
BOLT,SOCKET,8X20 92150A 92150-1155 1
BOLT,SOCKET,8X30 92150B 92150-1156 1
BOLT,20X30 92150C 92150-1264 2
