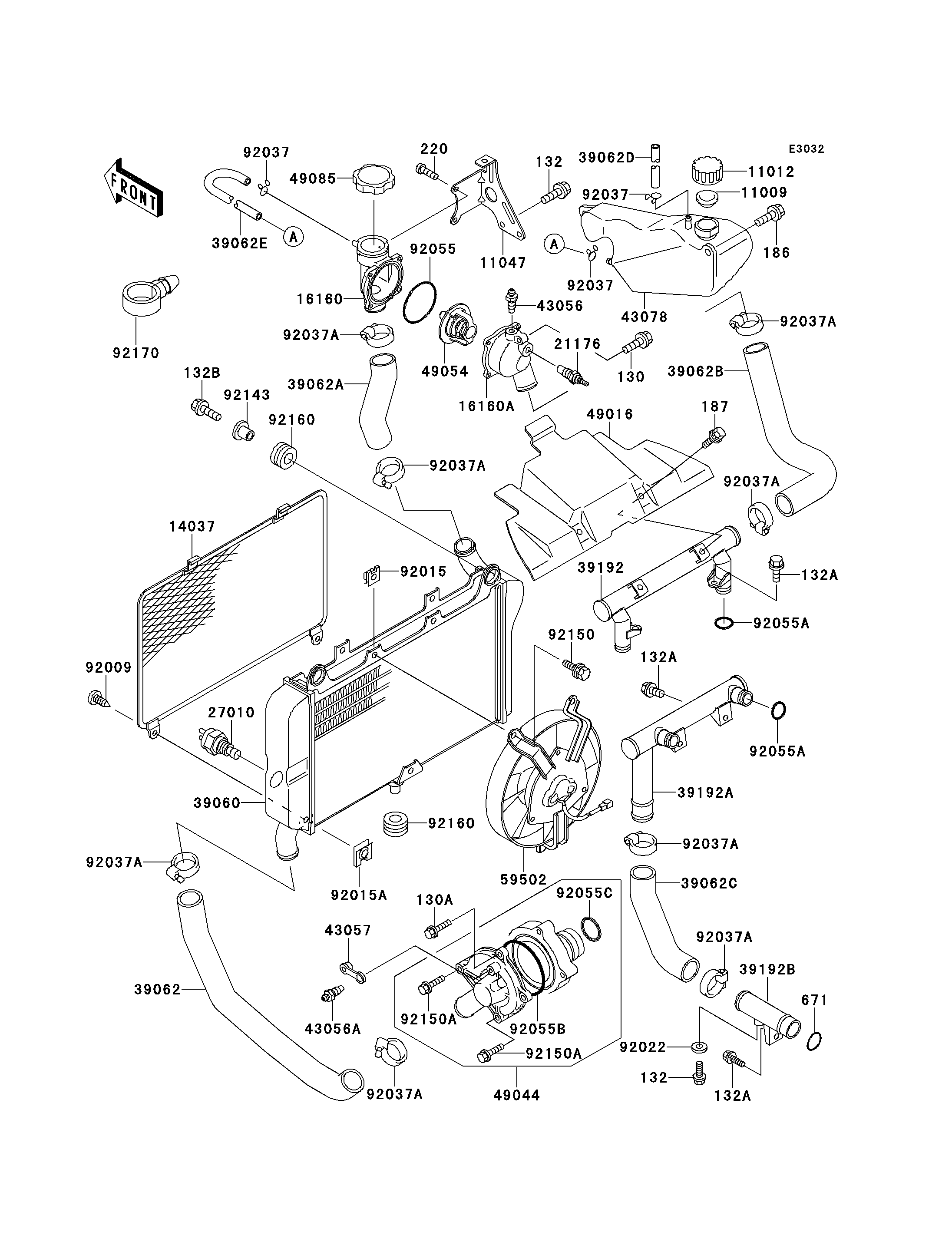

1990 Ninja® ZX™-6 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11047
11047
14037
14037
16160
16160
16160A
16160A
21176
21176
27010
27010
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39192
39192
39192A
39192A
39192B
39192B
43056
43056
43056A
43056A
43057
43057
43078
43078
49016
49016
49044
49044
49054
49054
49085
49085
59502
59502
92009
92009
92015
92015
92015A
92015A
92022
92022
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055C
92055C
92143
92143
92150
92150
92150A
92150A
92150A
92150A
130
130
130A
130A
132
132
132
132
132A
132A
132A
132A
132A
132A
132B
132B
186
186
187
187
220
220
671
671
92160
92160
92160
92160
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMO BODY 11047 11046-1944 1
SCREEN 14037 14037-1129 1
BODY,THERMOSTAT,UPP 16160 16160-1116 1
BODY,THERMOSTAT,LWR 16160A 16160-1117 1
SENSOR,WATER 21176 21176-1054 1
SWITCH,FAN 27010 27010-1202 1
RADIATOR 39060 39060-1095 1
HOSE-COOLING,RADIATOR-PUMP 39062 39062-1394 1
HOSE-COOLING,RADIATOR-CAP 39062A 39062-1395 1
HOSE-COOLING,THERMO-HEAD 39062B 39062-1396 1
HOSE-COOLING,PUMP-CYLINDER 39062C 39062-1397 1
HOSE-COOLING,5.5X10.5X350 39062D 39062-1418 1
HOSE-COOLING,CAP-RESERVOIR 39062E 39062-1422 1
PIPE-WATER 39192 39192-1032 1
PIPE-WATER 39192A 39192-1033 1
PIPE-WATER 39192B 39192-1034 1
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1051 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1109 1
COVER-SEAL 49016 49016-1154 1
PUMP-WATER 49044 49044-1067 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1054 1
FAN-ASSY 59502 59502-1089 1
SCREW,TAPPING,6MM 92009 92009-1261 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
WASHER,6.2X11X1 92022 92022-304 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1985 8
RING-O,53.5X2.6 92055 92055-112 1
RING-O 92055A 92055-1282 4
RING-O,WATER PUMP INSIDE 92055B 92055-1423 1
RING-O,33.2X2.4 92055C 92055-1424 1
COLLAR 92143 92143-1411 2
BOLT,6X12 92150 92150-1186 3
BOLT,6X22 92150A 92150-1379 2
BOLT-FLANGED,6X12 130 130G0612 1
BOLT-FLANGED,6X40 130A 130G0640 2
BOLT-FLANGED-SMALL,6X10 132 132J0610 3
BOLT-FLANGED-SMALL 132A 132J0612 5
BOLT-FLANGED-SMALL 132B 132J0830 2
BOLT-UPSET-WP 186 186H0614 2
BOLT-UPSET-WSP 187 187G0612 2
SCREW-PAN-CROS 220 220D0514 4
O RING,25MM 671 671B2525 1
DAMPER 92160 92160-1007 3
CLAMP,HOSE 92170 92170-1067 1
