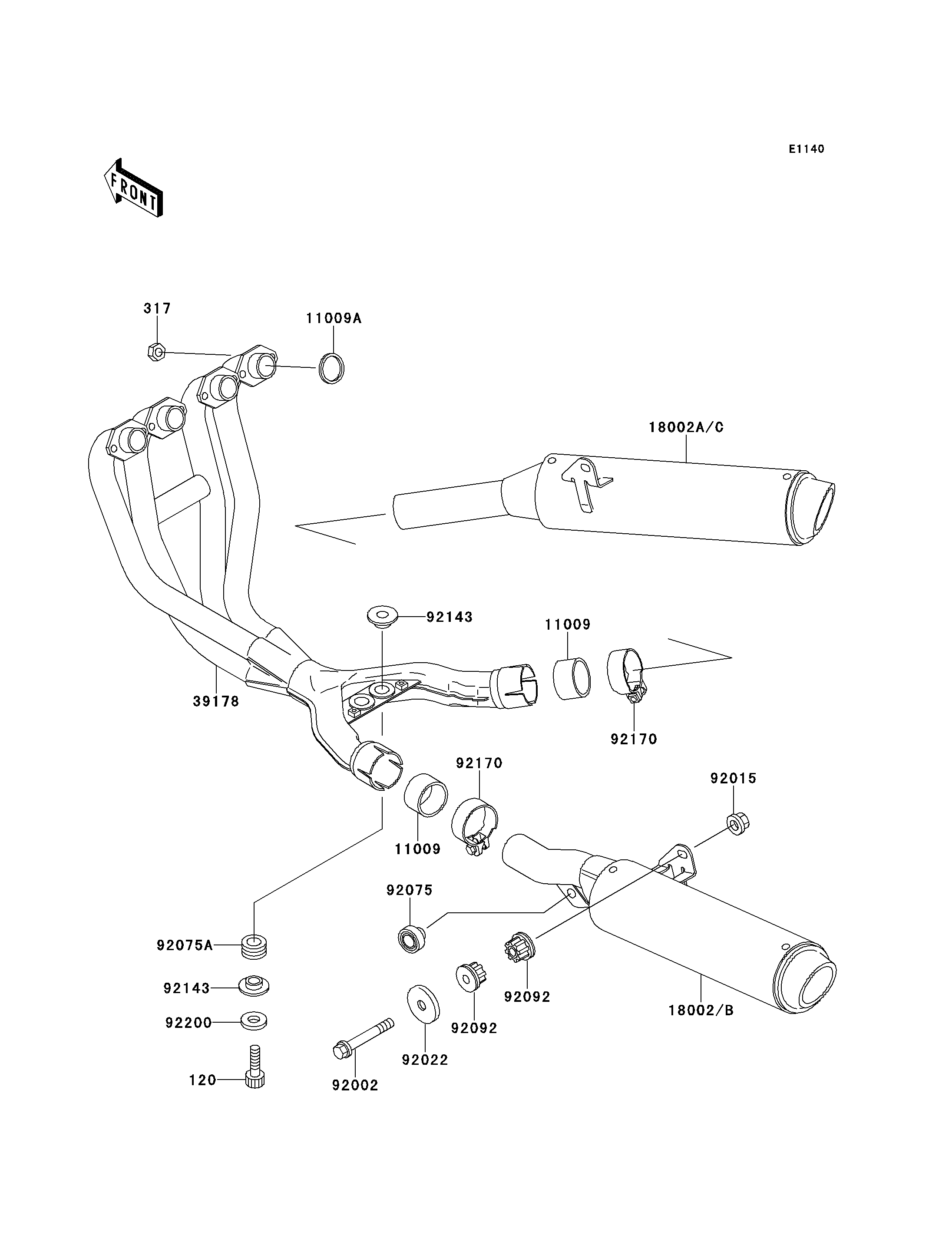

1990 Ninja® ZX™-6 - Muffler

DOWNLOAD PDF
SELECT A NEW PART
120
317
11009
11009
11009A
39178
92002
92015
92022
92075
92075A
92092
92092
92143
92143
92170
92170
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,10X35 120 120P1035 2
NUT-HEX-SMALL,8MM,BLACK 317 317J0800 8
GASKET,EXHAUST PIPE 11009 11009-1680 2
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1856 4
MANIFOLD-COMP-EXHAUST 39178 39178-1158 1
BOLT,10X55 92002 92002-1127 2
NUT,FLANGED,10MM 92015 92015-1387 2
WASHER 92022 92022-289 2
DAMPER 92075 92075-015 1
DAMPER,MUFFLER 92075A 92075-1621 2
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
COLLAR 92143 92143-1395 4
CLAMP 92170 92170-1154 2
WASHER,10.5X19X2.3 92200 92200-1042 2
BODY-COMP-MUFFLER,LH 18002 18002-1947 1 CAUS
BODY-COMP-MUFFLER,RH 18002A 18002-1948 1 CAUS
BODY-COMP-MUFFLER,LH 18002B 18002-1982 1 CN
BODY-COMP-MUFFLER,RH 18002C 18002-1983 1 CN
