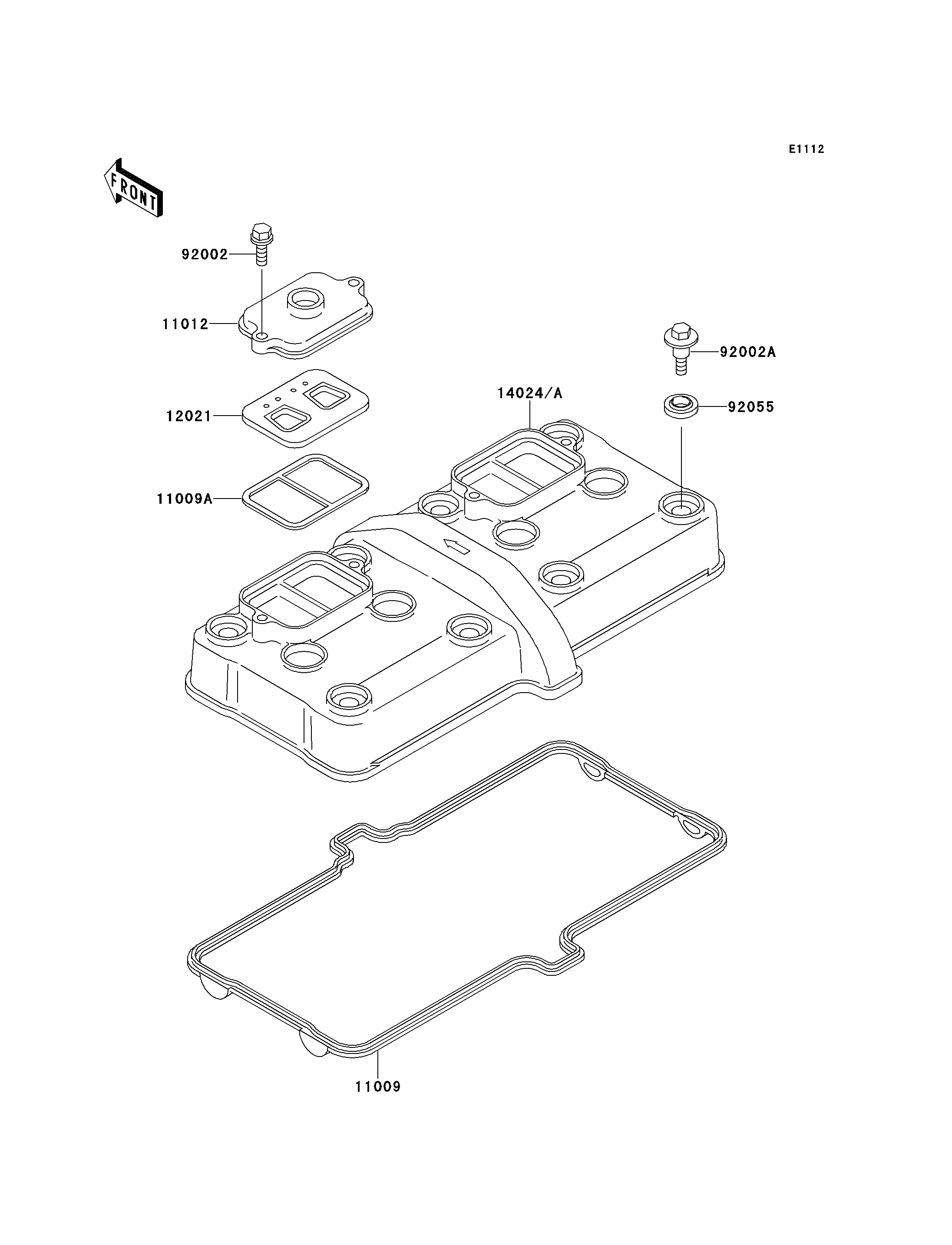

1990 Ninja® ZX™-6 - Cylinder Head Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11009 | 11009-1853 | 1 | ||
| BOLT,HEAD COVER | 92002A | 92002-1504 | 8 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 8 | ||
| GASKET,REED VALVE | 11009A | 11009-1857 | 2 | CAUS | |
| CAP,REED VALVE | 11012 | 11012-1731 | 2 | CAUS | |
| VALVE-ASSY-REED | 12021 | 12021-1053 | 2 | CAUS | |
| COVER,HEAD | 14024 | 14024-1875 | 1 | CAUS | |
| COVER,HEAD | 14024A | 14024-1876 | 1 | CN | |
| BOLT,6X20 | 92002 | 92001-1947 | 4 | CAUS |
| GASKET,HEAD COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEAD COVER | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RING-O,HEAD COVER BOLT | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| CAP,REED VALVE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| COVER,HEAD | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| COVER,HEAD | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CAUS |
| REMARKS | |
