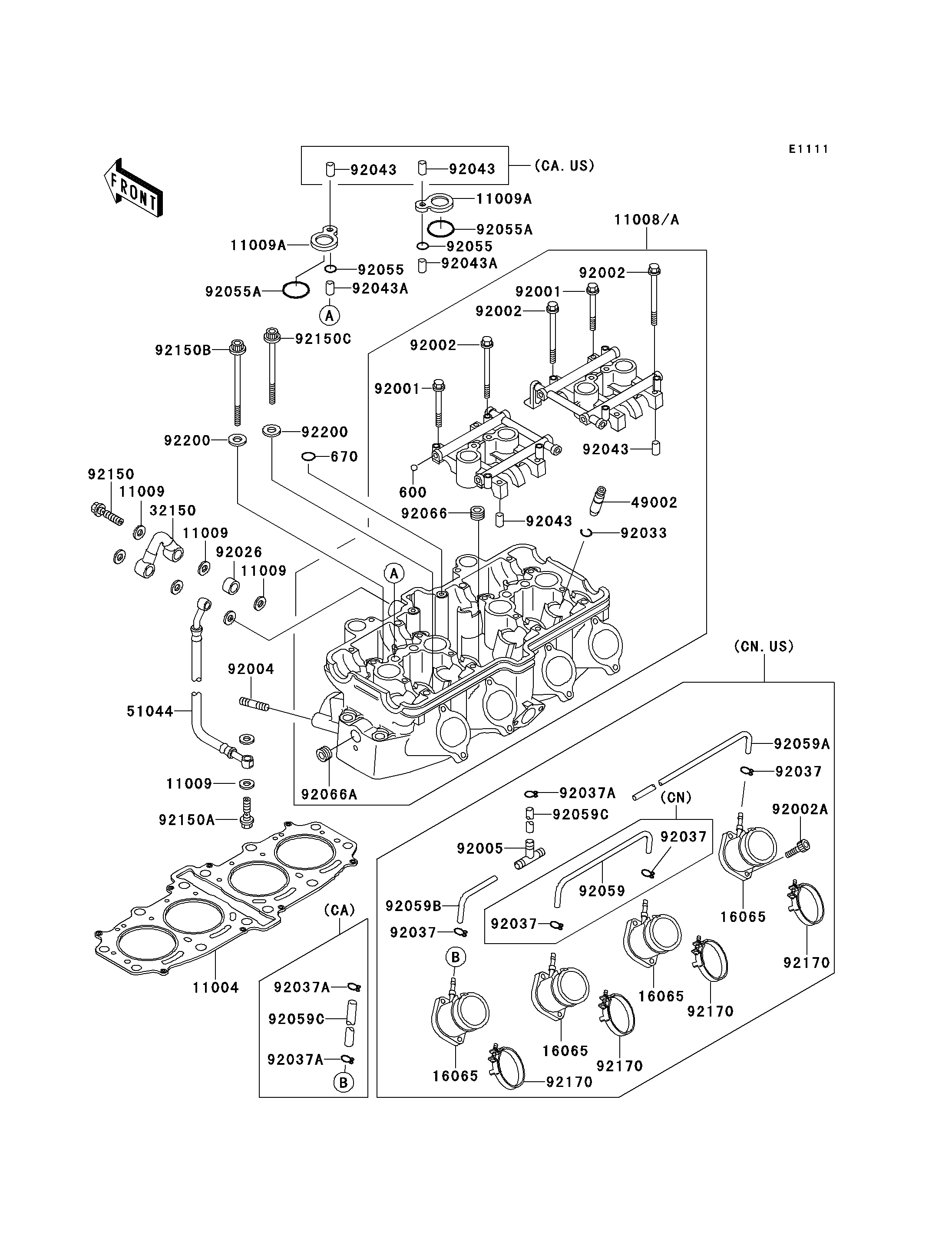

1990 Ninja® ZX™-6 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11009
11009
11009
11009
11009
11009
11009
11009
11009A
11009A
11009A
11009A
16065
16065
16065
16065
16065
16065
16065
16065
32150
32150
49002
49002
51044
51044
92001
92001
92001
92001
92002
92002
92002
92002
92002
92002
92002A
92002A
92004
92004
92026
92026
92033
92033
92055A
92055A
92055A
92055A
92059C
92059C
92059C
92059C
92066
92066
92066A
92066A
600
600
670
670
92150
92150
92150A
92150A
92150B
92150B
92150C
92150C
92170
92170
92170
92170
92170
92170
92170
92170
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1206 1
GASKET,10X14.5X1.5 11009 11009-1105 8
GASKET,SPARK PLUG 11009A 11009-1854 4
HOLDER-CARBURETOR 16065 16065-1213 4
PIPE,HEAD 32150 32150-1621 1
GUIDE-VALVE 49002 49002-1107 AR
TUBE-ASSY,HEAD-OIL PAN 51044 51044-1121 1
BOLT,FLANGED,6X38 92001 92001-1105 12
BOLT,6X46 92002 92001-1872 4
BOLT,6X16 92002A 92002-1143 8
STUD,8X18 92004 92004-1186 8
SPACER,10.5X15.1X10 92026 92026-1393 1
RING-SNAP 92033 92033-1247 16
RING-O 92055A 92055-1470 4
TUBE,4X9X500,WHITE 92059C 92059-1533 1
PLUG 92066 92066-1253 4
PLUG 92066A 92066-1346 2
BALL-STEEL,9/32" 600 600A0900 12
O RING,8MM 670 670D1508 2
BOLT,BANJO,10X37 92150 92150-1122 2
BOLT,BANJO,10X23 92150A 92150-1123 1
BOLT,10X165 92150B 92150-1368 2
BOLT,10X151 92150C 92150-1369 10
CLAMP 92170 92170-1146 4
WASHER,10.5X19X2.3 92200 92200-1042 12
HEAD-COMP-CYLINDER 11008 11008-1241 1 CAUS
HEAD-COMP-CYLINDER 11008A 11008-1242 1 CN
FITTING,TUBE,T-TYPE 92005 92005-1017 1 CNUS
CLAMP 92037 92037-1610 2 US
CLAMP 92037 92037-1610 4 CN
CLAMP 92037A 92037-1712 1 CNUS
CLAMP 92037A 92037-1712 2 CA
PIN,6.2X8X14 92043 92043-1263 4 CN
PIN,6.2X8X14 92043 92043-1263 8 CAUS
PIN,8.2X10X14 92043A 92043-1264 4 CAUS
RING-O,11.5X1.5 92055 92055-1469 4 CAUS
TUBE,4X9X155 92059 92059-1033 1 CN
TUBE,4X9X230 92059A 92059-1068 1 CNUS
TUBE,4X9X80 92059B 92059-1365 1 CNUS
