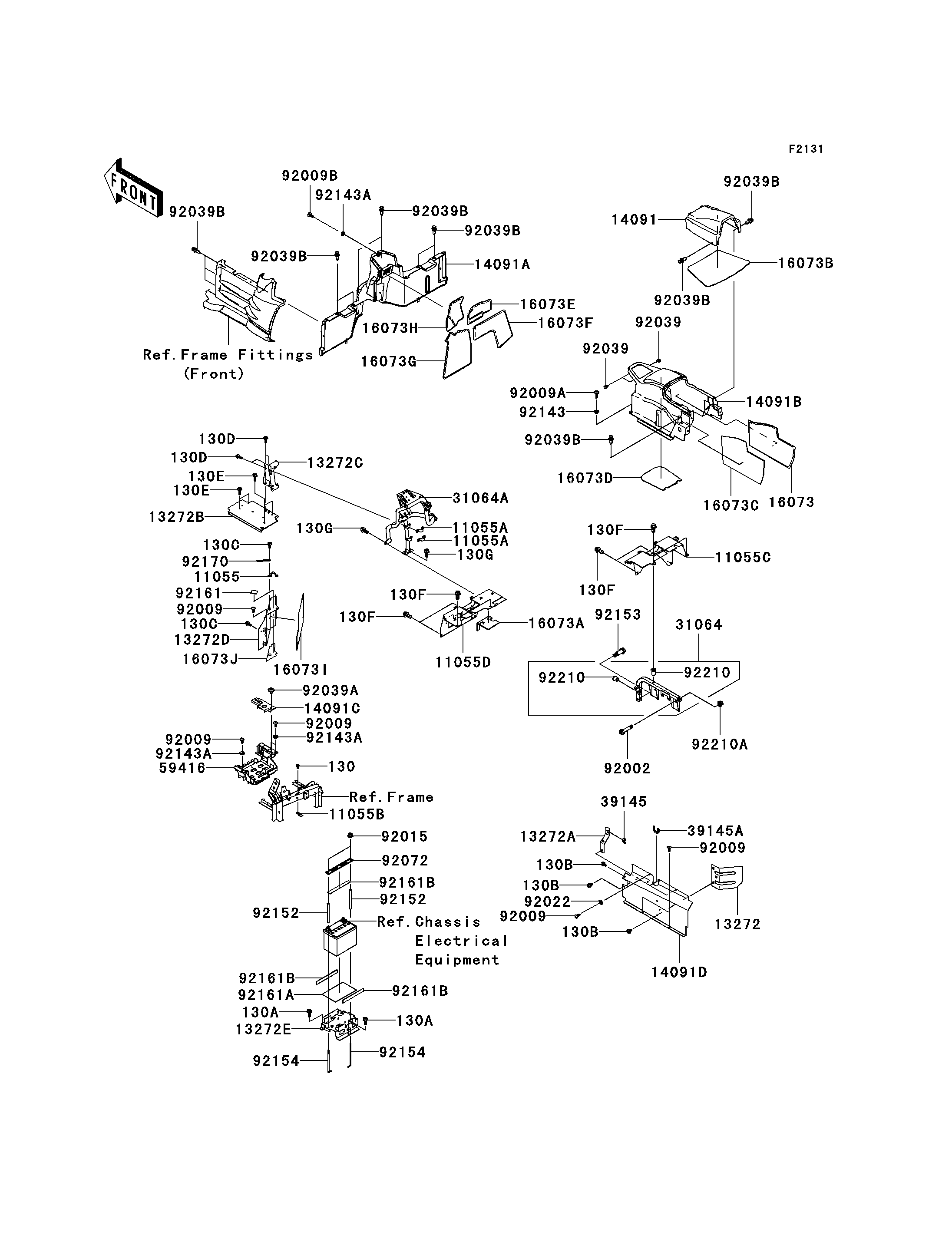

2009 Teryx® 750 FI 4x4 NRA Outdoors - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11055A
11055A
11055B
11055B
11055C
11055C
11055D
11055D
13272
13272
13272A
13272A
13272B
13272B
13272C
13272C
13272D
13272D
13272E
13272E
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
16073E
16073E
16073F
16073F
16073G
16073G
16073H
16073H
16073I
16073I
16073J
16073J
31064
31064
31064A
31064A
39145
39145
39145A
39145A
59416
59416
92002
92002
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92039
92039
92039
92039
92039A
92039A
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
130E
130E
130E
130E
130F
130F
130F
130F
130F
130F
130F
130F
130G
130G
130G
130G
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92072
92072
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92152
92152
92152
92152
92153
92153
92154
92154
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92170
92170
92210
92210
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0419 1
BRACKET 11055A 11055-0896 2
BRACKET 11055B 11055-1384 1
BRACKET,SEAT LOCK PLATE 11055C 11055-1409 1
BRACKET,SEAT LOCK 11055D 11055-1814 1
PLATE 13272 13272-0318 1
PLATE 13272A 13272-0351 1
PLATE,TUNNEL PLATE 13272B 13272-0421 1
PLATE 13272C 13272-0434 1
PLATE,HEAT GUARD 13272D 13272-0731 1
PLATE,BATTERY HOLDER 13272E 13272-0748 1
COVER,CONSOLE CENTER,F.BLACK 14091 14091-0975-6Z 1
COVER,SEAT,F.BLACK 14091A 14091-0982-6Z 1
COVER,CONSOLE CENTER,F.BLACK 14091B 14091-1724-6Z 1
COVER,ELECTRIC 14091C 14091-1761 1
COVER,HEAT 14091D 14091-1805 1
INSULATOR,CENTER CONSOLE,RH 16073 16073-0092 1
INSULATOR,SEAT BRACKET 16073A 16073-0097 1
INSULATOR,AIR CLEANER,UPP 16073B 16073-0102 1
INSULATOR,CENTER CONSOLE,LH 16073C 16073-0103 1
INSULATOR,CENTER CONSOLE,UPP 16073D 16073-0104 1
INSULATOR,LEG COVER,CNT,UPP 16073E 16073-0105 1
INSULATOR,LEG COVER,CNT,RH,LWR 16073F 16073-0106 1
INSULATOR,LEG COVER,CNT,LH,LWR 16073G 16073-0107 1
INSULATOR,LEG COVER,CNT,LH,UPP 16073H 16073-0108 1
INSULATOR,EXHAUST PIPE 16073I 16073-0112 1
INSULATOR,EXHAUST PIPE 16073J 16073-0113 1
PIPE-COMP 31064 31064-0181 1
PIPE-COMP 31064A 31064-0194 1
TRIM-SEAL,L=53 39145 39145-0035 1
TRIM-SEAL,L=120 39145A 39145-0040 1
CASE-ELECTRIC 59416 59416-0018 1
BOLT,FLANGED,10X46 92002 92002-1740 1
SCREW,TAPPING,6X16 92009 92009-1166 9
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X16 92009B 92009-1621 1
NUT,FLANGED,8MM 92015 92015-1406 2
WASHER,6.5X16X1.0 92022 92022-1093 3
RIVET 92039 92039-0046 3
RIVET 92039A 92039-0086 1
BOLT-FLANGED,5X10 130 130BA0510 1
BOLT-FLANGED,8X18 130A 130BA0818 3
BOLT-FLANGED,6X12 130B 130BB0612 5
BOLT-FLANGED,6X14 130C 130BB0614 3
BOLT-FLANGED,6X16 130D 130BB0616 6
BOLT-FLANGED,6X20 130E 130BB0620 4
BOLT-FLANGED,10X20 130F 130BB1020 8
BOLT-FLANGED,8X20 130G 130CA0820 4
RIVET 92039B 92039-1229 16
BAND,BATTERY,UPP 92072 92072-0128 1
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 4
COLLAR,10.22X12.7X158.8 92152 92152-0794 2
BOLT,FLANGED,10X38 92153 92153-1742 1
BOLT,BATTERY 92154 92154-0137 2
DAMPER 92161 92161-0273 1
DAMPER 92161A 92161-0578 1
DAMPER 92161B 92161-0579 3
CLAMP 92170 92170-1925 1
NUT,POP,10MM 92210 92210-0507 2
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 1
