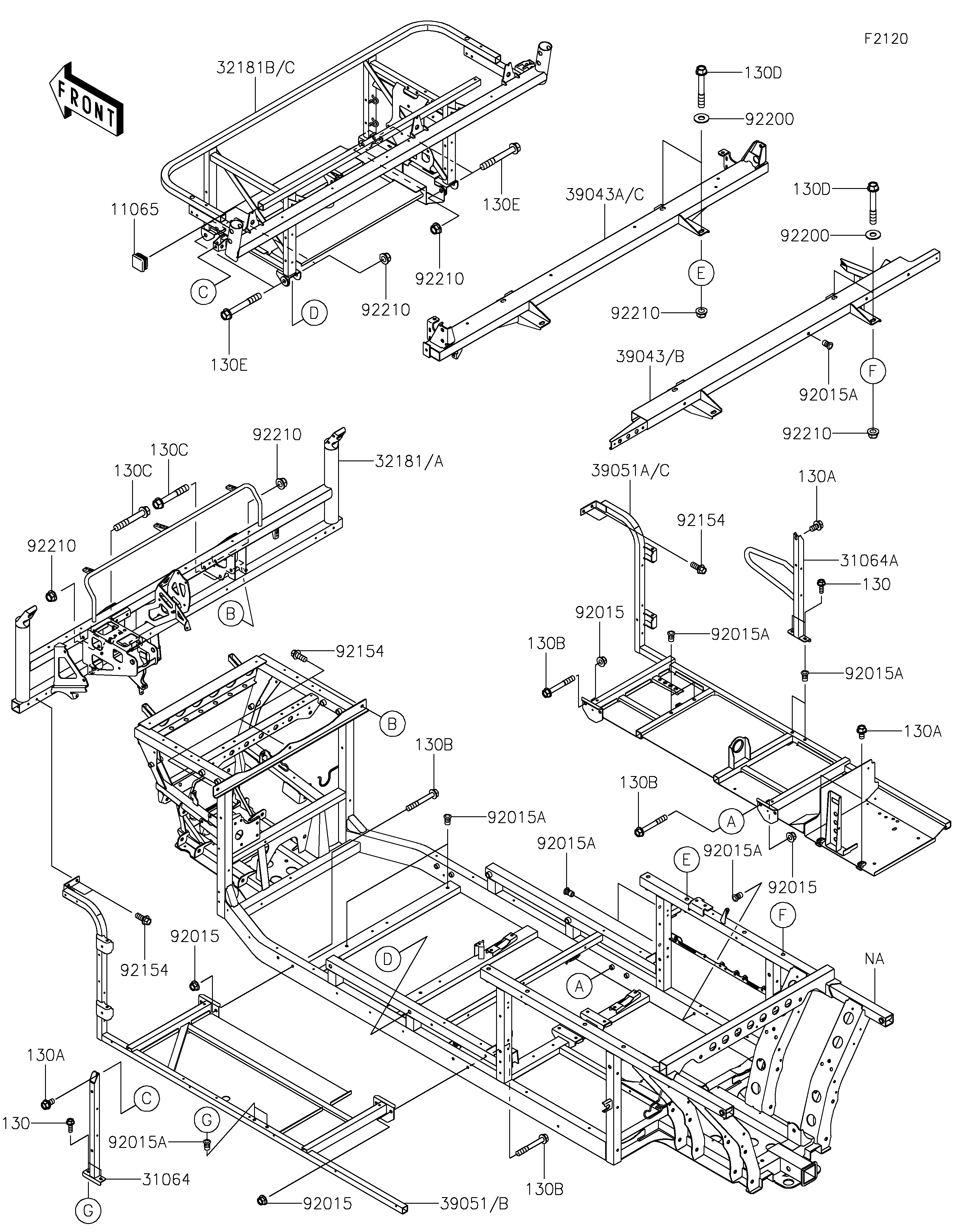

2026 MULE PRO-DX - Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
31064
31064A
32181
32181A
32181B
32181C
39043
39043A
39043B
39043C
39051
39051A
39051B
39051C
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92154
92154
92154
92200
92200
92210
92210
92210
92210
92210
92210
130
130
130A
130A
130A
130B
130B
130B
130B
130C
130C
130D
130D
130E
130E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0901 1
PIPE-COMP,SEAT SIDE,LH 31064 31064-0706 1
PIPE-COMP,SEAT SIDE,RH 31064A 31064-0707 1
FRAME-SUB-COMP,DASH PANEL 32181 32181-0048 1
FRAME-SUB-COMP,DASH PANEL 32181A 32181-0092 1
FRAME-SUB-COMP,SEAT 32181B 32181-0099 1
FRAME-SUB-COMP,SEAT 32181C 32181-0101 1
CROSSMEMBER-COMP,RR CROSS 39043 39043-0020 1
CROSSMEMBER-COMP,C-PILLAR 39043A 39043-0026 1
CROSSMEMBER-COMP,RR CROSS 39043B 39043-0345 1
CROSSMEMBER-COMP,C-PILLAR 39043C 39043-0347 1
FRAME-COMP-SIDE,LH 39051 39051-0045 1
FRAME-COMP-SIDE,RH 39051A 39051-0046 1
FRAME-COMP-SIDE,LH 39051B 39051-0051 1
FRAME-COMP-SIDE,RH 39051C 39051-0052 1
NUT,8MM 92015 92015-1432 8
NUT,POP,6MM,L=15 92015A 92015-1791 12
BOLT,FLANGED,8X20 92154 92154-1226 7
WASHER,10.5X25X1.6 92200 92200-1595 8
NUT,LOCK,FLANGED,10MM 92210 92210-0276 16
BOLT-FLANGED,6X18 130 130BA0618 4
BOLT-FLANGED,8X14 130A 130BA0814 4
BOLT-FLANGED,8X60 130B 130BA0860 8
BOLT-FLANGED,10X65 130C 130BA1065 4
BOLT-FLANGED,10X70 130D 130BA1070 8
BOLT-FLANGED,10X75 130E 130CA1075 4
