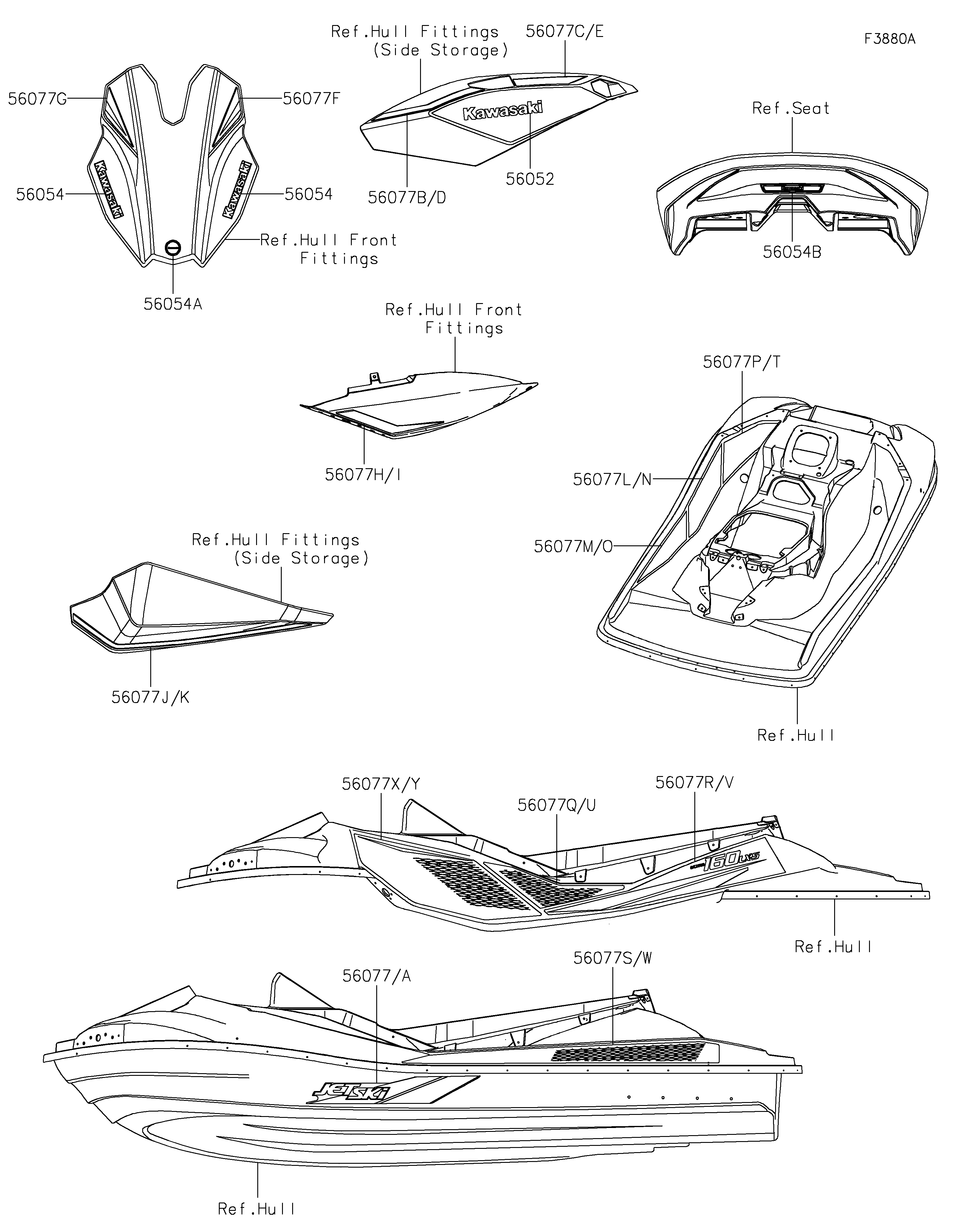

2026 JET SKI® ULTRA® 160LX-S - Decals(BTFNN)
56052
56054
56054
56054A
56054B
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
56077P
56077Q
56077R
56077S
56077T
56077U
56077V
56077W
56077X
56077Y
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-0866 | 2 | ||
| MARK,HATCH COVER,KAWASAKI | 56054 | 56054-3782 | 2 | ||
| MARK,HATCH COVER,KAWASAKI | 56054A | 56054-3925 | 1 | ||
| MARK,RR GRIP,KAWASAKI | 56054B | 56054-3927 | 1 | ||
| PATTERN,HULL,LH | 56077 | 56077-1715 | 1 | ||
| PATTERN,HULL,RH | 56077A | 56077-1716 | 1 | ||
| PATTERN,SIDE COVER,FR,LH | 56077B | 56077-1719 | 1 | ||
| PATTERN,SIDE COVER,RR,LH | 56077C | 56077-1720 | 1 | ||
| PATTERN,SIDE COVER,FR,RH | 56077D | 56077-1721 | 1 | ||
| PATTERN,SIDE COVER,RR,RH | 56077E | 56077-1722 | 1 | ||
| PATTERN,HATCH COVER,LH | 56077F | 56077-1723 | 1 | ||
| PATTERN,HATCH COVER,RH | 56077G | 56077-1724 | 1 | ||
| PATTERN,SIDE COVER,LH | 56077H | 56077-1725 | 1 | ||
| PATTERN,SIDE COVER,RH | 56077I | 56077-1726 | 1 | ||
| PATTERN,MIRROR COVER,LH | 56077J | 56077-1727 | 1 | ||
| PATTERN,MIRROR COVER,RH | 56077K | 56077-1728 | 1 | ||
| PATTERN,DECK,LH,CNT,INNER | 56077L | 56077-7240 | 1 | ||
| PATTERN,DECK,LH,RR,INNER | 56077M | 56077-7241 | 1 | ||
| PATTERN,DECK,RH,CNT,INNER | 56077N | 56077-7248 | 1 | ||
| PATTERN,DECK,RH,RR,INNER | 56077O | 56077-7249 | 1 | ||
| PATTERN,DECK,LH,FR,INNER | 56077P | 56077-7253 | 1 | ||
| PATTERN,DECK,LH,CNT | 56077Q | 56077-7255 | 1 | ||
| PATTERN,DECK,LH,RR | 56077R | 56077-7256 | 1 | ||
| PATTERN,DECK,LH,OUTER | 56077S | 56077-7257 | 1 | ||
| PATTERN,DECK,RH,FR,INNER | 56077T | 56077-7258 | 1 | ||
| PATTERN,DECK,RH,CNT | 56077U | 56077-7260 | 1 | ||
| PATTERN,DECK,RH,RR | 56077V | 56077-7261 | 1 | ||
| PATTERN,DECK,RH,OUTER | 56077W | 56077-7262 | 1 | ||
| PATTERN,DECK,LH,FR | 56077X | 56077-7267 | 1 | ||
| PATTERN,DECK,RH,FR | 56077Y | 56077-7270 | 1 |
| MARK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,HATCH COVER,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,HATCH COVER,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,RR GRIP,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,FR,LH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RR,LH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,FR,RH | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RR,RH | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,LH | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,RH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,MIRROR COVER,LH | |
| REF # | 56077J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,MIRROR COVER,RH | |
| REF # | 56077K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,CNT,INNER | |
| REF # | 56077L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,RR,INNER | |
| REF # | 56077M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,CNT,INNER | |
| REF # | 56077N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,RR,INNER | |
| REF # | 56077O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,FR,INNER | |
| REF # | 56077P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,CNT | |
| REF # | 56077Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,RR | |
| REF # | 56077R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,OUTER | |
| REF # | 56077S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,FR,INNER | |
| REF # | 56077T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,CNT | |
| REF # | 56077U |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,RR | |
| REF # | 56077V |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,OUTER | |
| REF # | 56077W |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH,FR | |
| REF # | 56077X |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH,FR | |
| REF # | 56077Y |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
