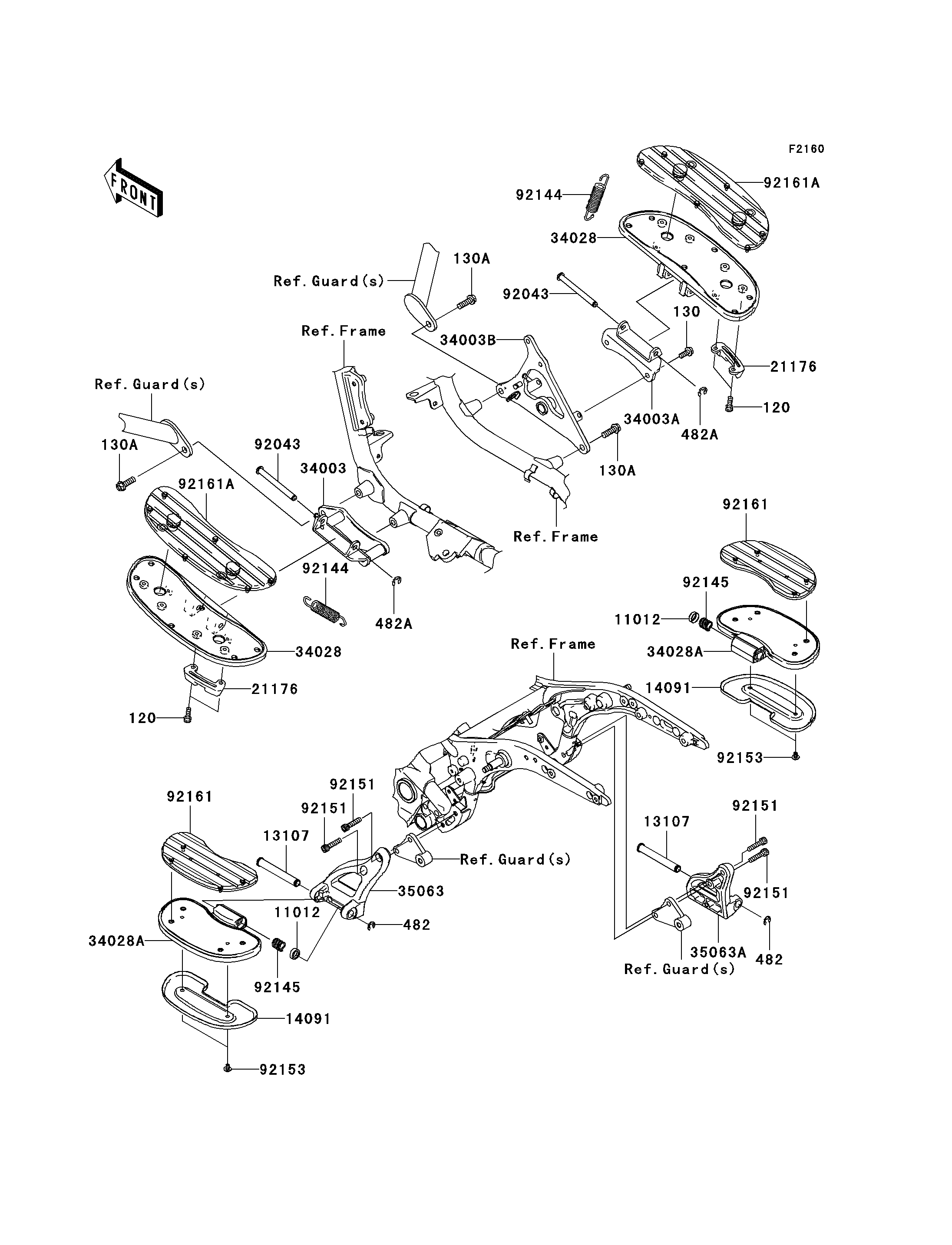

2005 Vulcan 1600 Nomad - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
130A
130A
482
482
482A
482A
11012
11012
13107
13107
14091
14091
21176
21176
34003
34003A
34003B
34028
34028
34028A
34028A
35063
35063A
92043
92043
92144
92144
92145
92145
92151
92151
92151
92151
92153
92153
92161
92161
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0616 4
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED,10X30 130A 130J1030 4
CIRCLIP-TYPE-E 482 482L0200 2
CIRCLIP-TYPE-E,8MM 482A 482L8000 2
CAP 11012 11012-1498 2
SHAFT,REAR STEP 13107 13107-0087 2
COVER,REAR STEP 14091 14091-0229 2
SENSOR,BANK 21176 21176-0021 2
HOLDER-STEP,FR,LH 34003 34003-0012 1
HOLDER-STEP,FR,RH 34003A 34003-0013 1
HOLDER-STEP,FR,RH 34003B 34003-0014 1
STEP,FR 34028 34028-0011 2
STEP,RR 34028A 34028-0028 2
STAY,REAR STEP,LH 35063 35063-0149 1
STAY,REAR STEP,RH 35063A 35063-0150 1
PIN,10X98.5 92043 92043-1707 2
SPRING 92144 92144-1266 2
SPRING,REAR STEP 92145 92145-1130 2
BOLT,SOCKET,8X35 92151 92151-1535 4
BOLT,SOCKET,6X10 92153 92153-1096 4
DAMPER,REAR STEP 92161 92161-0145 2
DAMPER,FRONT STEP 92161A 92161-1325 2
