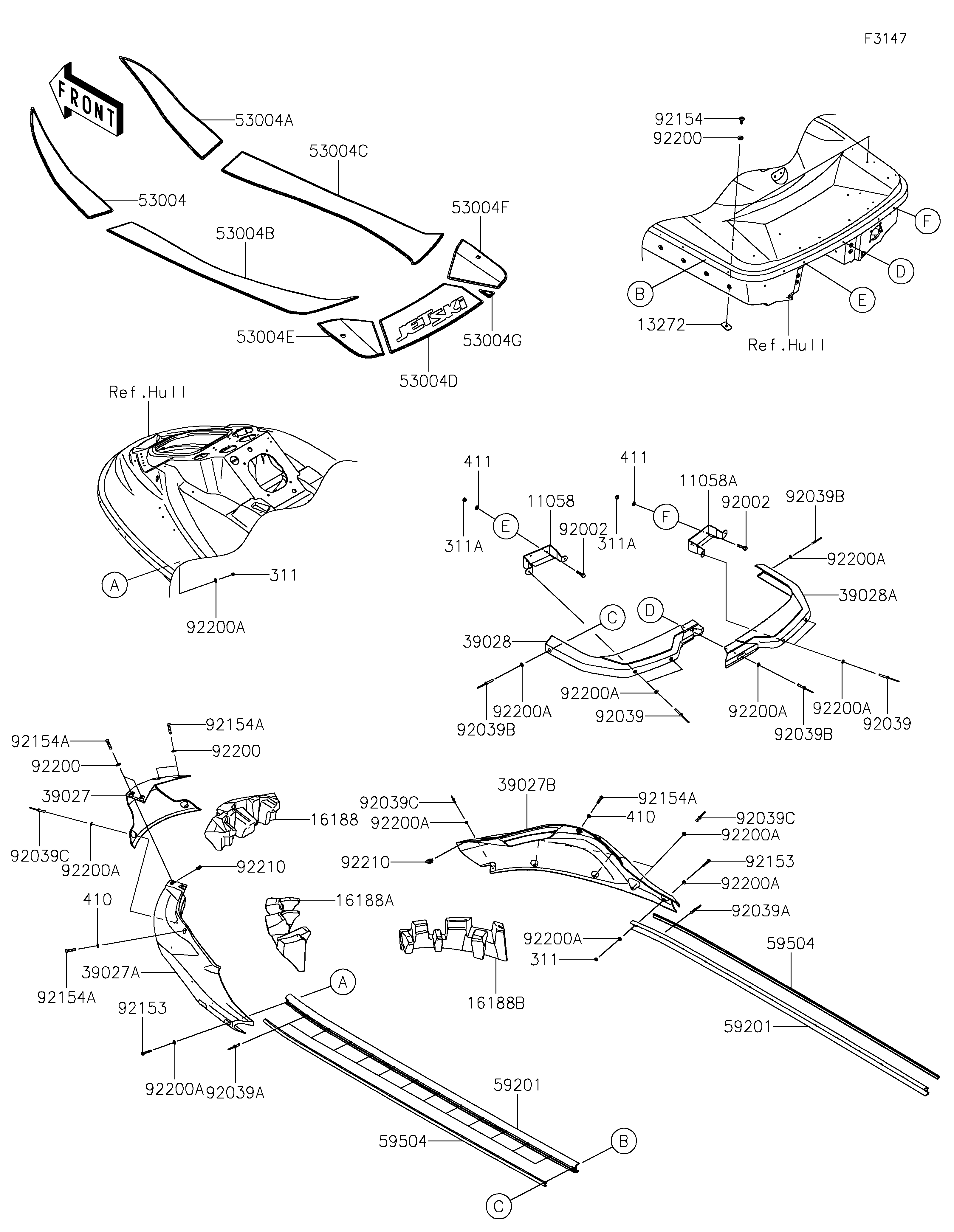

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11058
11058A
13272
16188
16188A
16188B
39027
39027A
39027B
39028
39028A
53004
53004A
53004B
53004C
53004D
53004E
53004F
53004G
59201
59201
59504
59504
92002
92002
92039
92039
92039A
92039A
92039B
92039B
92039B
92039C
92039C
92039C
92153
92153
92154
92154A
92154A
92154A
92154A
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
311
311
311A
311A
410
410
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-2253 | 1 | ||
| BRACKET | 11058A | 11058-2254 | 1 | ||
| PLATE | 13272 | 13272-3861 | 10 | ||
| FLOAT,FR,CNT | 16188 | 16188-0161 | 1 | ||
| FLOAT,FR,LH | 16188A | 16188-0162 | 1 | ||
| FLOAT,FR,RH | 16188B | 16188-0163 | 1 | ||
| BUMPER-FRONT,CNT,BLACK | 39027 | 39027-0007-6Z | 1 | ||
| BUMPER-FRONT,LH,BLACK | 39027A | 39027-0010-6Z | 1 | ||
| BUMPER-FRONT,RH,BLACK | 39027B | 39027-0011-6Z | 1 | ||
| BUMPER-REAR,LH,S.BLACK | 39028 | 39028-0010-839 | 1 | ||
| BUMPER-REAR,RH,S.BLACK | 39028A | 39028-0011-839 | 1 | ||
| MAT,FR,LH | 53004 | 53004-0726 | 1 | ||
| MAT,FR,RH | 53004A | 53004-0727 | 1 | ||
| MAT,MID,LH | 53004B | 53004-0728 | 1 | ||
| MAT,MID,RH | 53004C | 53004-0729 | 1 | ||
| MAT,RR,CNT | 53004D | 53004-0730 | 1 | ||
| MAT,RR,LH | 53004E | 53004-0731 | 1 | ||
| MAT,RR,RH | 53004F | 53004-0732 | 1 | ||
| MAT,RR,CNT,RH | 53004G | 53004-0733 | 1 | ||
| BUMPER,SIDE,BLACK | 59201 | 59201-0010-6Z | 2 | ||
| INSERT-BOAT FENDER,SIDE,BLACK | 59504 | 59504-0006-6Z | 2 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 4 | ||
| RIVET | 92039 | 92039-3733 | 4 | ||
| RIVET | 92039A | 92039-3771 | 24 | ||
| RIVET | 92039B | 92039-3773 | 3 | ||
| RIVET | 92039C | 92039-3794 | 8 | ||
| BOLT,SOCKET,5X30 | 92153 | 92153-3742 | 2 | ||
| BOLT,SOCKET,6X20 | 92154 | 92154-0918 | 2 | ||
| BOLT,SOCKET,6X30 | 92154A | 92154-7512 | 6 | ||
| WASHER,6.5X16X1.0 | 92200 | 92200-3712 | 6 | ||
| WASHER,5X12X1 | 92200A | 92200-3796 | 19 | ||
| NUT,6MM | 92210 | 92210-3768 | 2 | ||
| NUT-HEX,5MM | 311 | 311R0500 | 2 | ||
| NUT-HEX,6MM | 311A | 311R0600 | 4 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 2 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 4 |
| BRACKET | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| FLOAT,FR,CNT | |
| REF # | 16188 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT,FR,LH | |
| REF # | 16188A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT,FR,RH | |
| REF # | 16188B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-FRONT,CNT,BLACK | |
| REF # | 39027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-FRONT,LH,BLACK | |
| REF # | 39027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-FRONT,RH,BLACK | |
| REF # | 39027B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,LH,S.BLACK | |
| REF # | 39028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,RH,S.BLACK | |
| REF # | 39028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FR,LH | |
| REF # | 53004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FR,RH | |
| REF # | 53004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,MID,LH | |
| REF # | 53004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,MID,RH | |
| REF # | 53004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,RR,CNT | |
| REF # | 53004D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,RR,LH | |
| REF # | 53004E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,RR,RH | |
| REF # | 53004F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,RR,CNT,RH | |
| REF # | 53004G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,BLACK | |
| REF # | 59201 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INSERT-BOAT FENDER,SIDE,BLACK | |
| REF # | 59504 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039C |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X30 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,5X12X1 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
