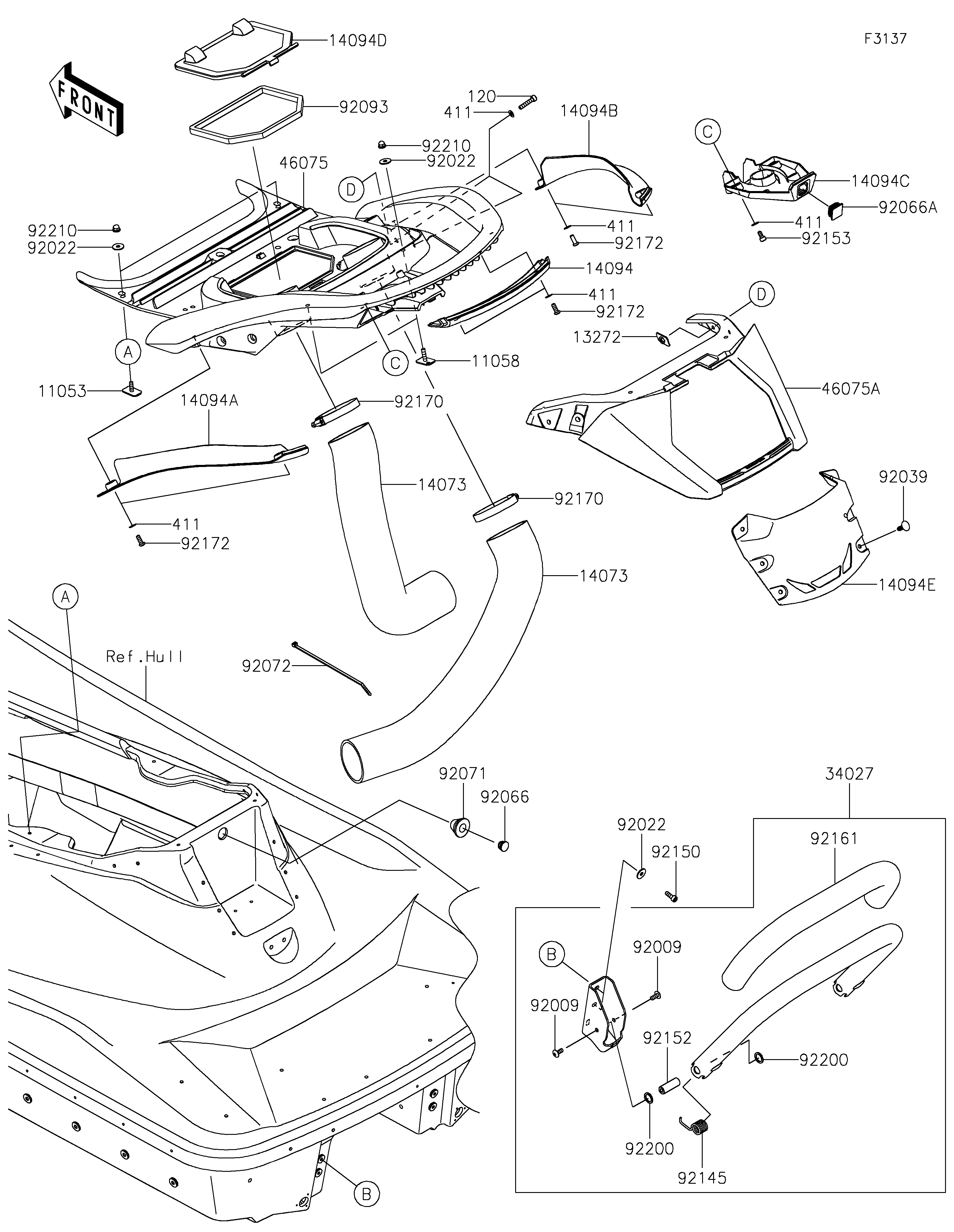

2026 JET SKI® STX® 160X - Hull Rear Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11058
13272
14073
14073
14094
14094A
14094B
14094C
14094D
14094E
34027
46075
46075A
92009
92009
92022
92022
92022
92039
92066
92066A
92071
92072
92093
92145
92150
92152
92153
92161
92170
92170
92172
92172
92172
92200
92200
92210
92210
120
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 2
BRACKET 11058 11058-2541 2
PLATE 13272 13272-3861 4
DUCT,AIR 14073 14073-2143 2
COVER,GRIP,CNT 14094 14094-0071 1
COVER,GRIP,LH 14094A 14094-0072 1
COVER,GRIP,RH 14094B 14094-0073 1
COVER,CAMERA 14094C 14094-0074 1
COVER,BATTERY 14094D 14094-0078 1
COVER,RR STORAGE 14094E 14094-0097 1
STEP-ASSY 34027 34027-0015 1
GRIP,RR 46075 46075-0679 1
GRIP,RR,UNDER 46075A 46075-0681 1
SCREW,6X15 92009 92009-3830 4
WASHER,6.5X20X1.5 92022 92022-3710 8
RIVET 92039 92039-3788 6
PLUG 92066 92066-0981 1
PLUG 92066A 92066-0994 1
GROMMET 92071 92071-0862 1
BAND,L=608.22 92072 92072-3884 1
SEAL 92093 92093-0829 1
SPRING 92145 92145-0896 2
BOLT,SOCKET,6X18 92150 92150-3775 4
COLLAR 92152 92152-1593 2
BOLT,SOCKET,6X12 92153 92153-1525 4
DAMPER 92161 92161-1427 1
CLAMP 92170 92170-1679 2
SCREW,TAPPING,6X16 92172 92172-1441 6
WASHER,14.5X20X1.5 92200 92200-3793 4
NUT,CAP,6MM 92210 92210-3785 4
BOLT-SOCKET,6X30 120 120R0630 4
WASHER-PLAIN,6MM 411 411S0600 14
