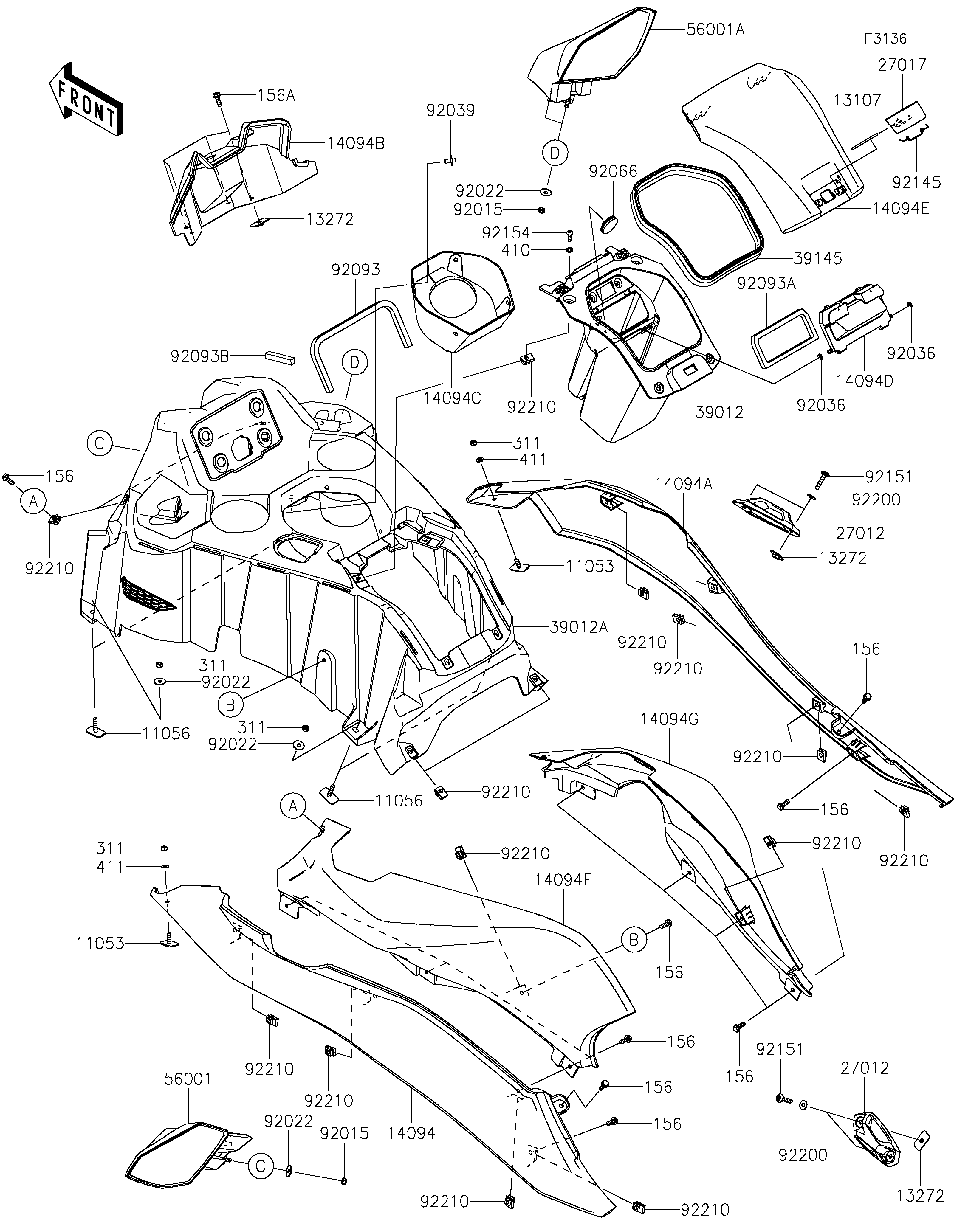

2026 JET SKI® STX® 160X - Hull Middle Fittings
11053
11053
11056
11056
13107
13272
13272
13272
14094
14094A
14094B
14094C
14094D
14094E
14094F
14094G
27012
27012
27017
39012
39012A
39145
56001
56001A
92015
92015
92022
92022
92022
92022
92036
92036
92039
92066
92093
92093A
92093B
92145
92151
92151
92154
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
156
156
156
156
156
156
156
156
156A
311
311
311
311
410
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 2 | ||
| BRACKET | 11056 | 11056-3724 | 4 | ||
| SHAFT | 13107 | 13107-3790 | 1 | ||
| PLATE | 13272 | 13272-3861 | 8 | ||
| COVER,SIDE,LH,LWR,M.S.BLUE | 14094 | 14094-0091-31Z | 1 | ||
| COVER,SIDE,RH,LWR,M.S.BLUE | 14094A | 14094-0092-31Z | 1 | ||
| COVER,DUCT | 14094B | 14094-0093 | 1 | ||
| COVER,HANDLE | 14094C | 14094-0094 | 1 | ||
| COVER,STORAGE,INSIDE | 14094D | 14094-0095 | 1 | ||
| COVER,STORAGE,OUT,S.BLACK | 14094E | 14094-0096-839 | 1 | ||
| COVER,SIDE,LH,UPP,S.BLACK | 14094F | 14094-0116-839 | 1 | ||
| COVER,SIDE,RH,UPP,S.BLACK | 14094G | 14094-0117-839 | 1 | ||
| HOOK,CLEAT | 27012 | 27012-0919 | 2 | ||
| LOCK,CNT STORAGE | 27017 | 27017-0594 | 1 | ||
| CASE-STORAGE | 39012 | 39012-0083 | 1 | ||
| CASE-STORAGE,METER | 39012A | 39012-0085 | 1 | ||
| TRIM-SEAL,STRAGE,CNT | 39145 | 39145-0802 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-0440 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-0441 | 1 | ||
| NUT,LOCK,6MM | 92015 | 92015-3766 | 4 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 8 | ||
| RING-SNAP | 92036 | 92036-518 | 2 | ||
| RIVET | 92039 | 92039-3785 | 4 | ||
| PLUG | 92066 | 92066-0984 | 1 | ||
| SEAL | 92093 | 92093-0808 | 1 | ||
| SEAL | 92093A | 92093-0833 | 1 | ||
| SEAL,10X10X60 | 92093B | 92093-0872 | 1 | ||
| SPRING | 92145 | 92145-3729 | 1 | ||
| BOLT,SOCKET,6X30 | 92151 | 92151-1605 | 4 | ||
| BOLT,SOCKET,6X18 | 92154 | 92154-4447 | 4 | ||
| WASHER,6.5X16X1.0 | 92200 | 92200-3712 | 4 | ||
| NUT,6MM | 92210 | 92210-3768 | 18 | ||
| BOLT-WP,6X18 | 156 | 156R0618 | 14 | ||
| BOLT-WP,6X20 | 156A | 156R0620 | 4 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 6 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 2 |
