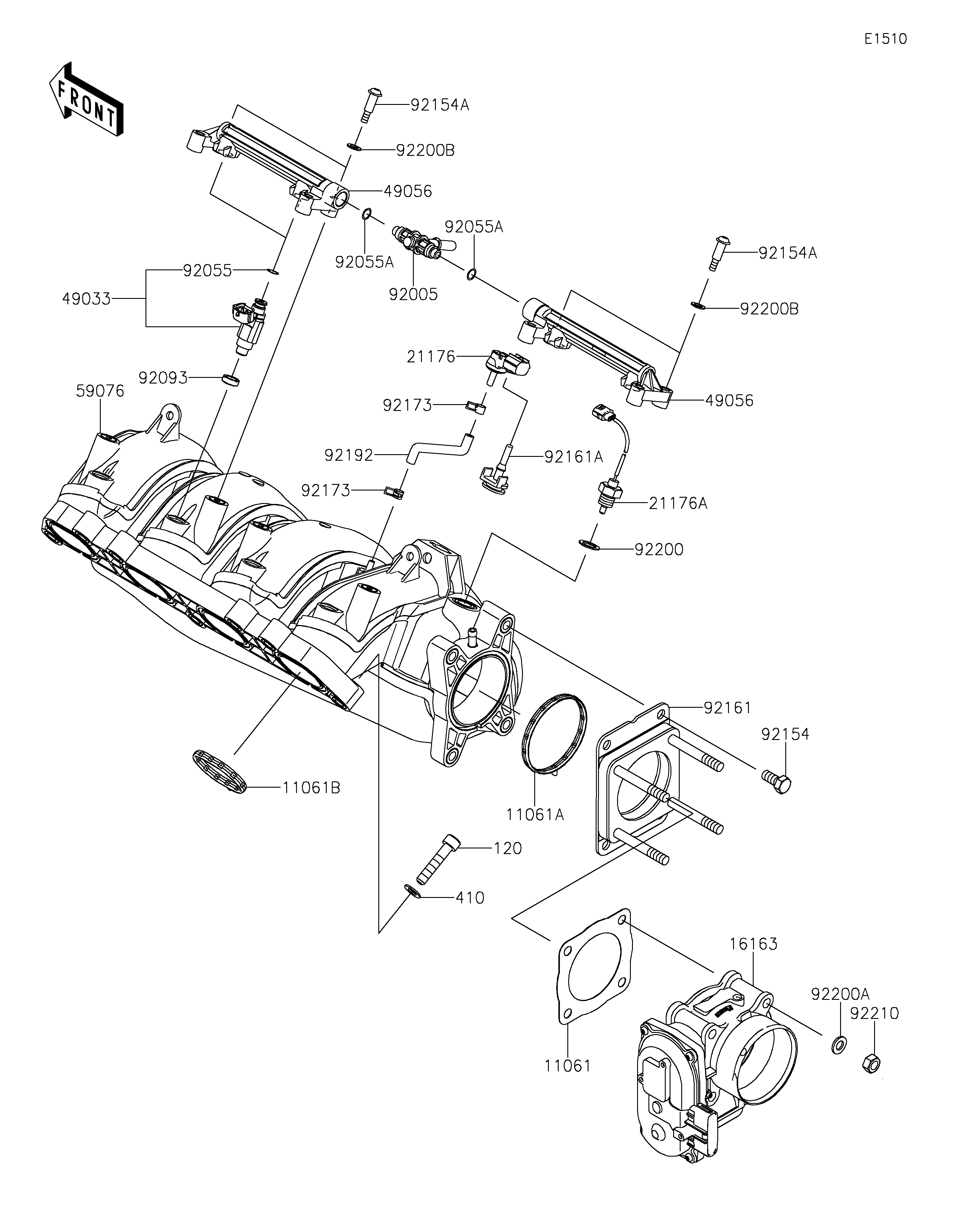

2026 JET SKI® STX® 160X - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
16163
21176
21176A
49033
49056
49056
59076
92005
92055
92055A
92055A
92093
92154
92154A
92154A
92161
92161A
92173
92173
92192
92200
92200A
92200B
92200B
92210
120
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,THROTTLE 11061 11061-0824 1
GASKET,MANIFOLD 11061A 11061-3766 1
GASKET,THROTTLE 11061B 11061-3767 4
THROTTLE-ASSY 16163 16163-1145 1
SENSOR,PRESSURE 21176 21176-0906 1
SENSOR,AIR TEMPERATURE 21176A 21176-3767 1
NOZZLE-INJECTION 49033 49033-3707 4
PIPE-INJECTION,FUEL 49056 49056-3705 2
MANIFOLD-INTAKE 59076 59076-0006 1
FITTING,FUEL PIPE 92005 92005-3766 1
RING-O,INJECTION NOZZLE 92055 92055-1622 4
RING-O 92055A 92055-3782 2
SEAL 92093 92093-0127 4
BOLT 92154 92154-1389 4
BOLT 92154A 92154-3713 4
DAMPER 92161 92161-1635 1
DAMPER 92161A 92161-3796 1
CLAMP 92173 92173-3702 2
TUBE 92192 92192-1361 1
WASHER,12X18X1 92200 92200-0712 1
WASHER 92200A 92200-3806 4
WASHER 92200B 92200-3807 4
NUT 92210 92210-0897 4
BOLT-SOCKET,8X40 120 120CC0840 7
WASHER-PLAIN-SMALL,8MM 410 410S0800 7
