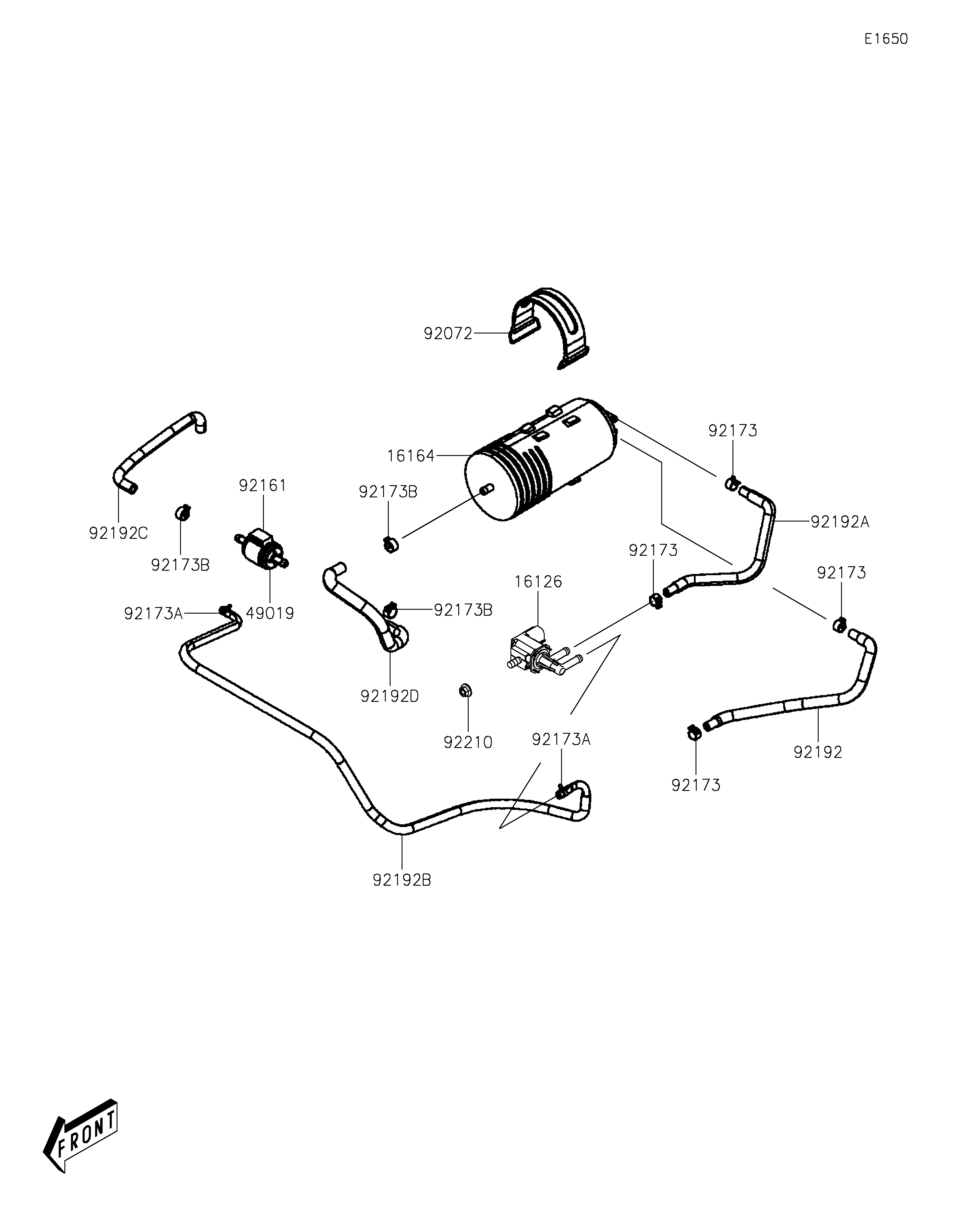

2024 MULE PRO-MX™ EPS CAMO - Fuel Evaporative System(CA)
16126
16164
49019
92072
92161
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173B
92192
92192A
92192B
92192C
92192D
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-Y003 | 1 | CA | |
| FILTER-FUEL | 49019 | 49019-Y002 | 1 | CA | |
| BAND,L=168 | 92072 | 92072-1306 | 1 | CA | |
| DAMPER | 92161 | 92161-Y039 | 1 | CA | |
| CLAMP | 92173 | 92173-Y083 | 4 | CA | |
| CLAMP | 92173A | 92173-Y085 | 2 | CA | |
| CLAMP | 92173B | 92173-Y086 | 3 | CA | |
| TUBE,CHECK VALVE-CANISTER | 92192 | 92192-Y063 | 1 | CA | |
| TUBE,CANISTER-VALVE | 92192A | 92192-Y064 | 1 | CA | |
| TUBE,VALVE-VACUUM | 92192B | 92192-Y065 | 1 | CA | |
| TUBE,AIR FILTER | 92192C | 92192-Y066 | 1 | CA | |
| TUBE,AIR FILTER-CANISTER | 92192D | 92192-Y067 | 1 | CA | |
| NUT,6MM | 92210 | 92210-Y026 | 1 | CA |
