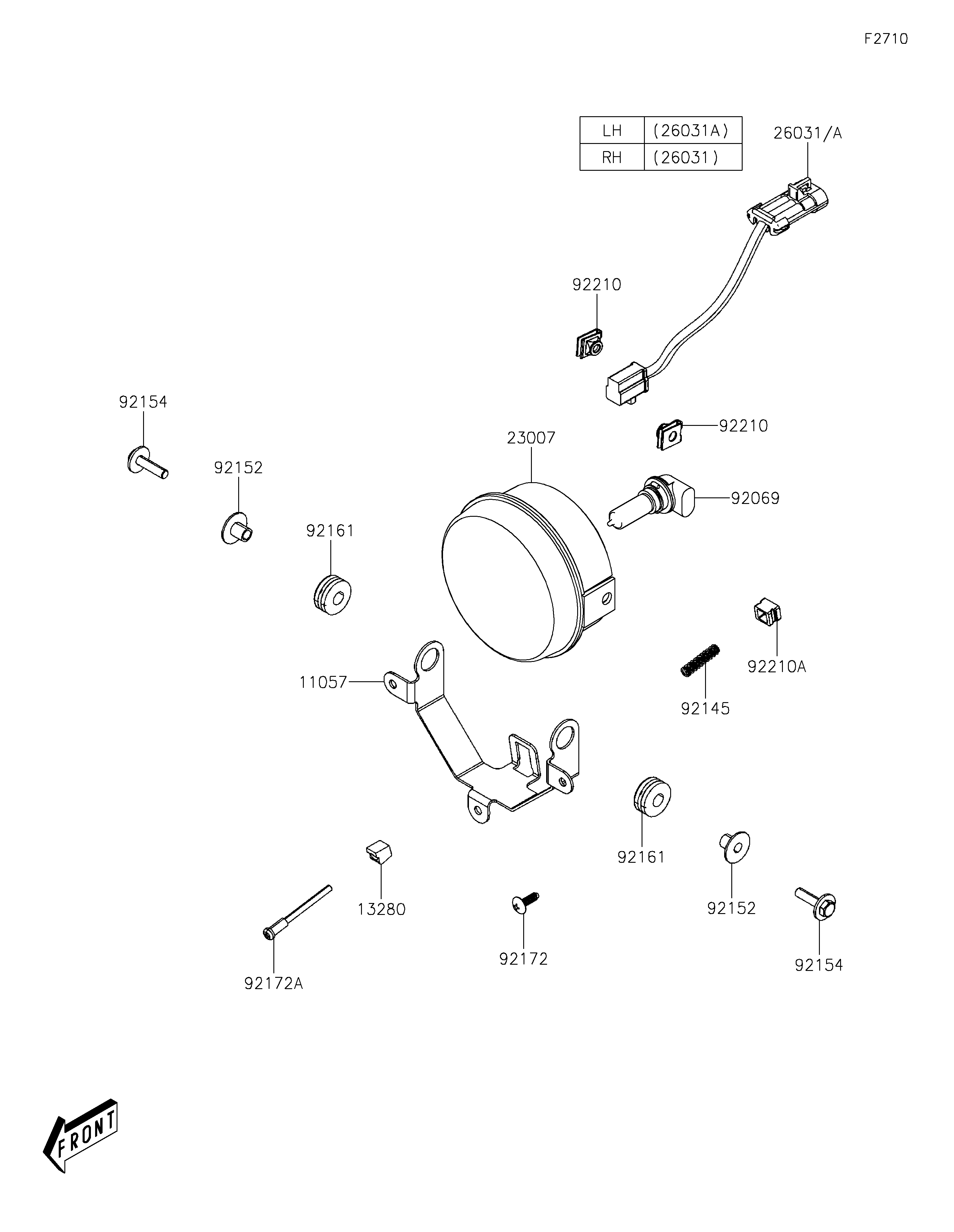

2019 MULE PRO-MX™ - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
13280
23007
26031
26031A
92069
92145
92152
92152
92154
92154
92161
92161
92172
92172A
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LIGHT 11057 11057-Y004 2
HOLDER,ADJUSTER LIGHT 13280 13280-Y019 2
LENS-COMP,HEAD LAMP 23007 23007-0096 2
HARNESS,SUB,HEAD LIGHT,RH 26031 26031-Y018 1
HARNESS,SUB,HEAD LIGHT,LH 26031A 26031-Y019 1
BULB,12V 35/35W 92069 92069-0019 2
SPRING,ADJUSTER LIGHT 92145 92145-Y062 2
COLLAR,HEAD LIGHT 92152 92152-Y064 4
BOLT,6X25 92154 92154-Y099 4
DAMPER 92161 92161-Y043 4
SCREW,TAPPING,5X16 92172 92172-Y020 6
SCREW,PAN,4X58 92172A 92172-Y080 2
NUT,6MM 92210 92210-Y089 4
NUT,4MM 92210A 92210-Y095 2
