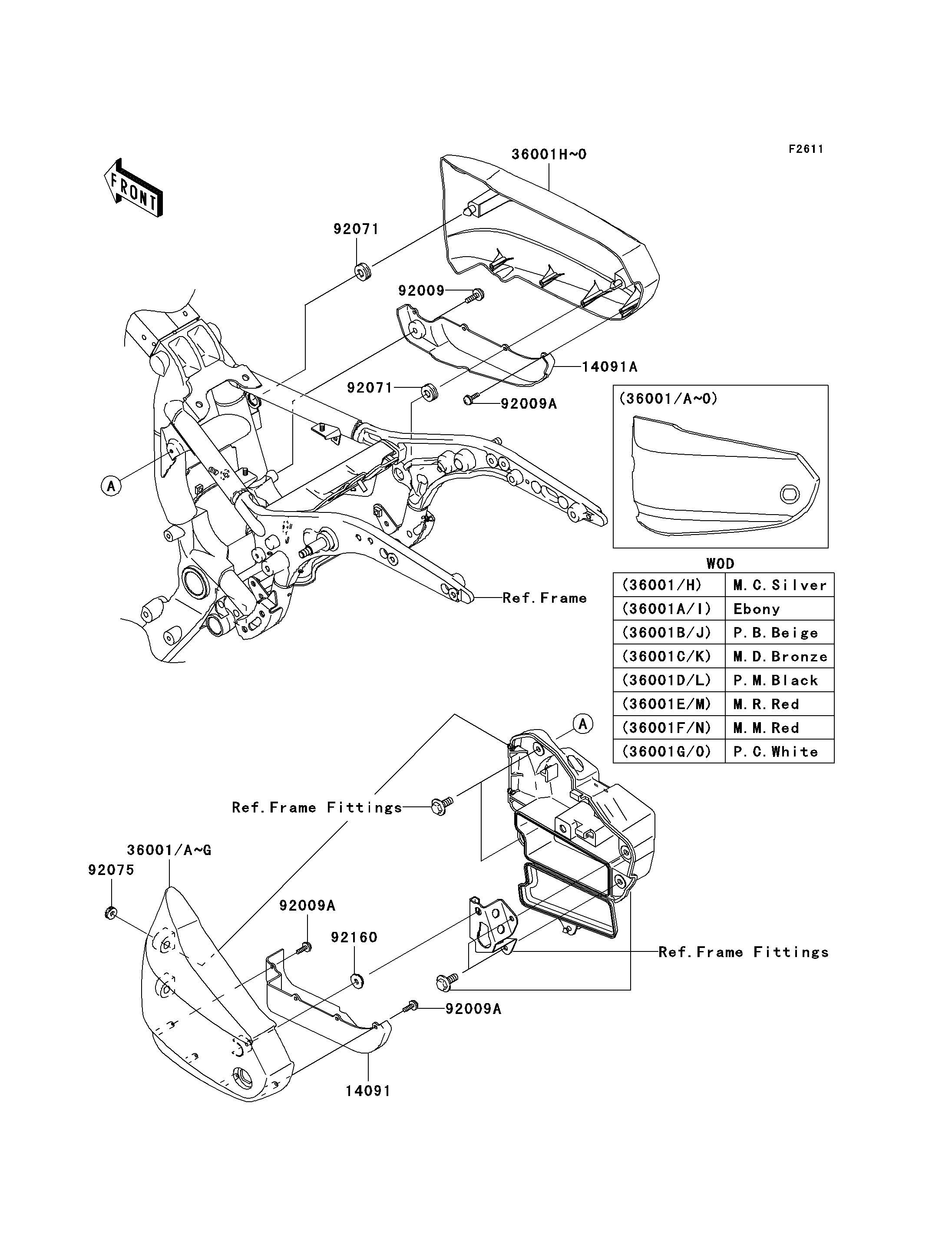

2004 Vulcan 1600 Classic - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
36001D
36001F
36001G
36001L
36001N
36001O
92009
92009A
92009A
92009A
92071
92071
92075
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE COVER,LH 14091 14091-1343 1
COVER,SIDE COVER,RH 14091A 14091-1344 1
COVER-SIDE,LH,P.M.BLACK 36001D 36001-1684-218 1
COVER-SIDE,LH,M.M.RED 36001F 36001-1684-665 1
COVER-SIDE,LH,P.C.WHITE 36001G 36001-1684-667 1
COVER-SIDE,RH,P.M.BLACK 36001L 36001-1685-218 1
COVER-SIDE,RH,M.M.RED 36001N 36001-1685-665 1
COVER-SIDE,RH,P.C.WHITE 36001O 36001-1685-667 1
SCREW,6X14 92009 92009-1662 1
SCREW,TAPPING,4X14 92009A 92009-1792 8
GROMMET 92071 92071-1131 2
DAMPER 92075 92075-1629 2
DAMPER 92160 92160-1944 1
