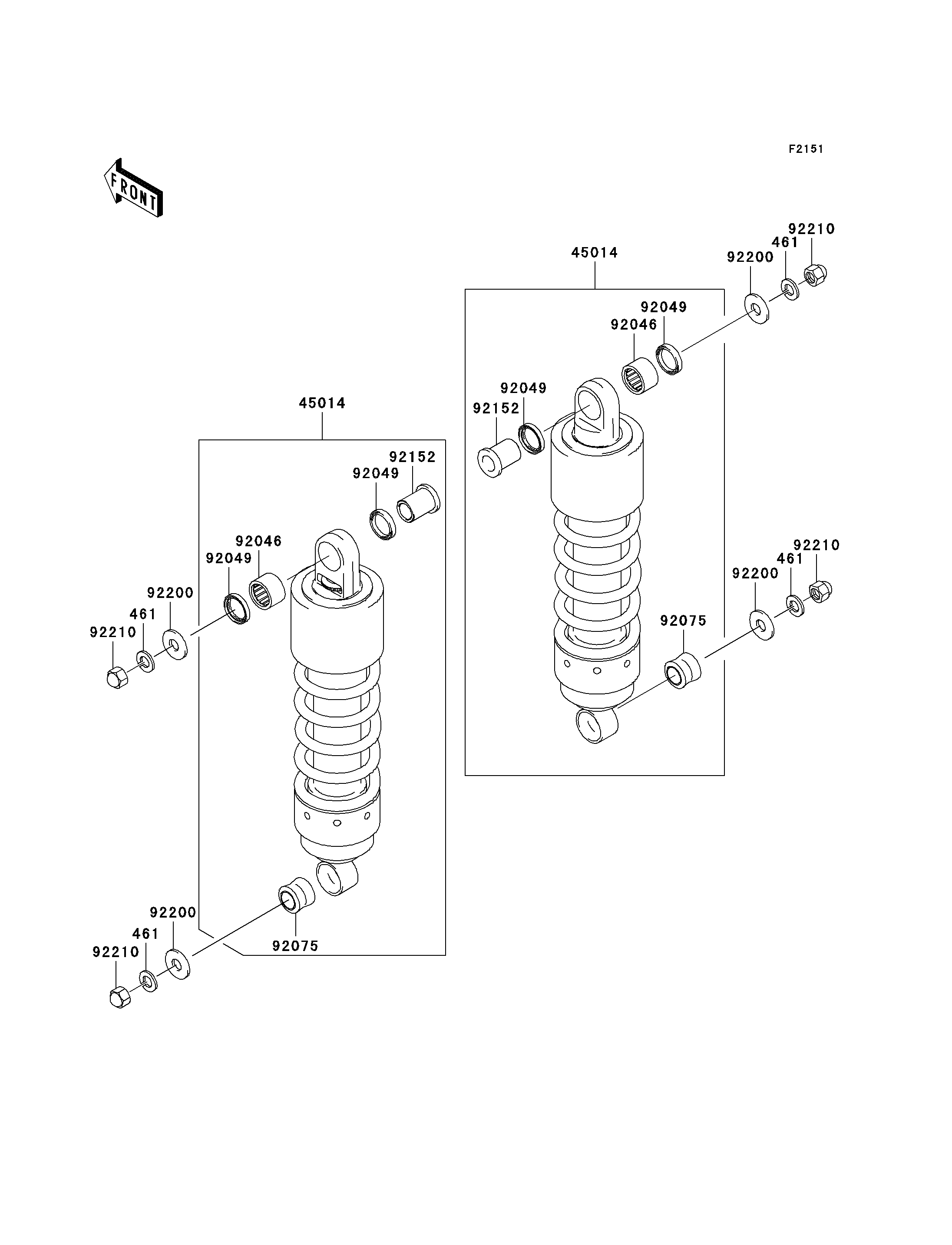

2004 Vulcan 1600 Classic - Suspension/Shock Absorber(A1/A2)
461
461
461
461
45014
45014
92046
92046
92049
92049
92049
92049
92075
92075
92152
92152
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-SPRING,10MM | 461 | 461S1000 | 4 | ||
| SHOCKABSORBER | 45014 | 45014-1832 | 2 | ||
| BEARING-NEEDLE | 92046 | 92046-0003 | 2 | ||
| SEAL-OIL | 92049 | 92049-0018 | 4 | ||
| DAMPER,SHOCKABSORBER | 92075 | 92075-1141 | 2 | ||
| COLLAR | 92152 | 92152-0064 | 2 | ||
| WASHER,10.5X26X2.5 | 92200 | 92200-1565 | 4 | ||
| NUT,CAP,10MM | 92210 | 92210-1288 | 4 |
| WASHER-SPRING,10MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCKABSORBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
