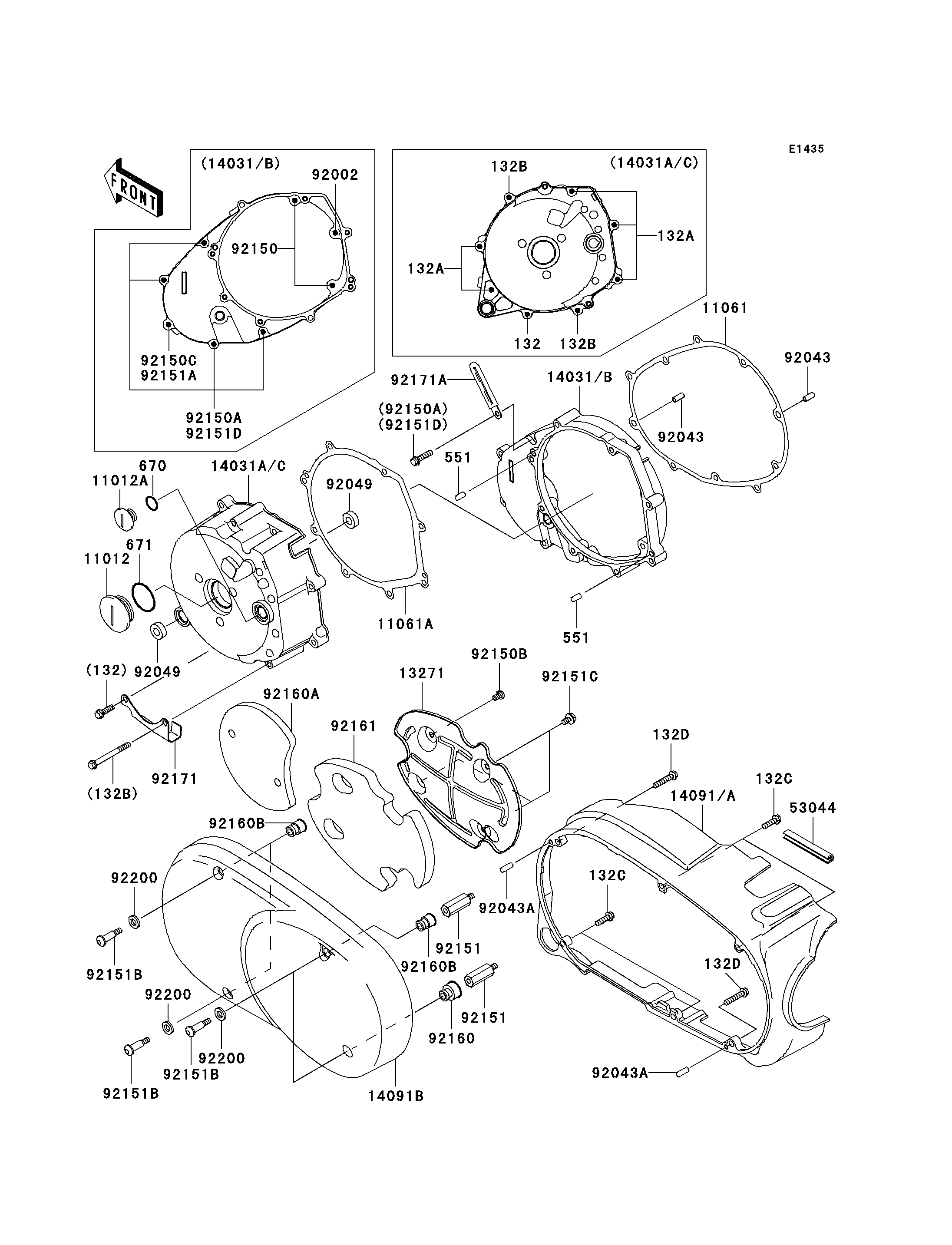

2004 Vulcan 1600 Classic - Left Engine Cover(s)
11012
11012
11012A
11012A
11061
11061
11061A
11061A
13271
13271
14031
14031
14031A
14031A
14091
14091
14091B
14091B
53044
53044
92002
92002
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92049
92049
92049
92049
92150
92150
92150B
92150B
92151
92151
92151
92151
92151A
92151A
92151B
92151B
92151B
92151B
92151B
92151B
92151C
92151C
92151D
92151D
92160
92160
92160A
92160A
92160B
92160B
92160B
92160B
92161
92161
92171
92171
92171A
92171A
92200
92200
92200
92200
92200
92200
132
132
132A
132A
132A
132A
132B
132B
132B
132B
132C
132C
132C
132C
132D
132D
132D
132D
551
551
551
551
670
670
671
671
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1362 | 1 | ||
CAP,TOP MARK | 11012A | 11012-1363 | 1 | ||
GASKET,GENERATOR COVER,IN | 11061 | 11061-1079 | 1 | ||
GASKET,GENERATOR COVER,OUT | 11061A | 11061-1080 | 1 | ||
PLATE | 13271 | 13271-1496 | 1 | ||
COVER-GENERATOR,INNER | 14031 | 14031-0001 | 1 | ||
COVER-GENERATOR,OUTER | 14031A | 14031-0002 | 1 | ||
COVER,LH,INNER | 14091 | 14091-0002 | 1 | ||
COVER,LH,OUTER | 14091B | 14091-1297 | 1 | ||
TRIM | 53044 | 53044-1312 | 1 | ||
BOLT,FLANGED,M6X40 | 92002 | 92002-1566 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
PIN,6X16 | 92043A | 92043-1690 | 2 | ||
SEAL-OIL,VB13193 | 92049 | 92049-1398 | 2 | ||
BOLT,6X30 | 92150 | 92150-1021 | 2 | ||
BOLT,6X10 | 92150B | 92150-1864 | 1 | ||
BOLT | 92151 | 92151-1062 | 2 | ||
BOLT,6X35 | 92151A | 92151-1135 | 1 | ||
BOLT,L=32 | 92151B | 92151-1796 | 4 | ||
BOLT,6X10 | 92151C | 92151-1884 | 3 | ||
BOLT,FLANGED-SMALL,M6X25 | 92151D | 92151-1930 | 4 | ||
DAMPER | 92160 | 92160-1718 | 1 | ||
DAMPER | 92160A | 92160-1719 | 1 | ||
DAMPER | 92160B | 92160-1730 | 3 | ||
DAMPER | 92161 | 92161-1179 | 1 | ||
CLAMP,CLUCTH HOSE | 92171 | 92171-0117 | 1 | ||
CLAMP | 92171A | 92171-0462 | 1 | ||
WASHER | 92200 | 92200-1296 | 4 | ||
BOLT-FLANGED-SMALL,M6X20 | 132 | 132J0620 | 1 | ||
BOLT-FLANGED-SMALL,M6X30 | 132A | 132J0630 | 5 | ||
BOLT-FLANGED-SMALL,M6X60 | 132B | 132J0660 | 2 | ||
BOLT-FLANGED-SMALL,M6X20 | 132C | 132V0620 | 4 | ||
BOLT-FLANGED-SMALL,M6X30 | 132D | 132V0630 | 2 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 2 | ||
O RING,18MM | 670 | 670B2018 | 1 | ||
O RING,40MM | 671 | 671B2540 | 1 |
