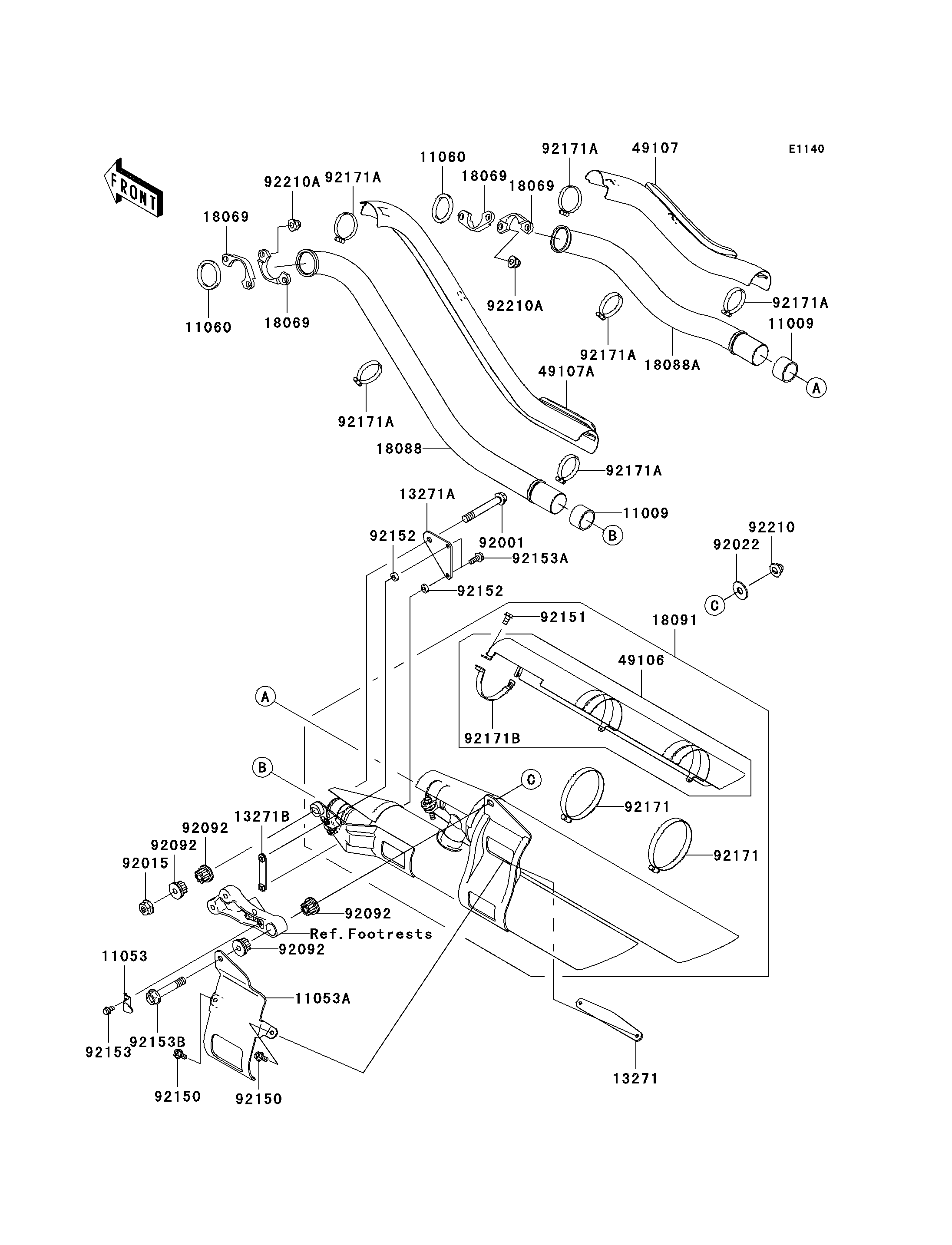

2004 Vulcan 1600 Classic - Muffler(s)(-JKBVNKA1 4A010963)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11053
11053A
11060
11060
13271
13271A
13271B
18069
18069
18069
18069
18088
18088A
18091
49106
49107
49107A
92001
92015
92022
92092
92092
92092
92092
92150
92150
92151
92152
92152
92153
92153A
92153B
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 2
BRACKET 11053 11053-0267 1
BRACKET 11053A 11053-1373 1
GASKET,EXHAUST PIPE 11060 11060-1119 2
PLATE 13271 13271-0422 1
PLATE 13271A 13271-0423 1
PLATE 13271B 13271-0450 1
HOLDER-EXHAUST PIPE 18069 18069-1161 4
PIPE-EXHAUST,FR 18088 18088-1246 1
PIPE-EXHAUST,RR 18088A 18088-1247 1
BODY-COMP-MUFFLER 18091 18091-0057 1
COVER-MUFFLER 49106 49106-0007 1
COVER-EXHAUST PIPE,RR 49107 49107-0010 1
COVER-EXHAUST PIPE,FR 49107A 49107-0016 1
BOLT,FLANGED,10X70 92001 92001-1618 1
NUT,10MM 92015 92015-1356 1
WASHER,10.5X30X2.3,BLACK 92022 92022-1302 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
BOLT,FLANGED,M6X12 92150 92150-1826 2
BOLT,FLANGED-SMALL,M6X20 92151 92151-1252 1
COLLAR,6.5X12.5X3.0 92152 92152-0231 2
BOLT,6X10 92153 92153-0381 1
BOLT,FLANGED,6X16 92153A 92153-0713 2
BOLT,10X57 92153B 92153-0741 1
CLAMP 92171 92171-0048 2
CLAMP 92171A 92171-0072 6
CLAMP 92171B 92171-0373 1
NUT,CAP,10MM 92210 92210-1121 1
NUT,CAP,8MM 92210A 92210-1132 4
