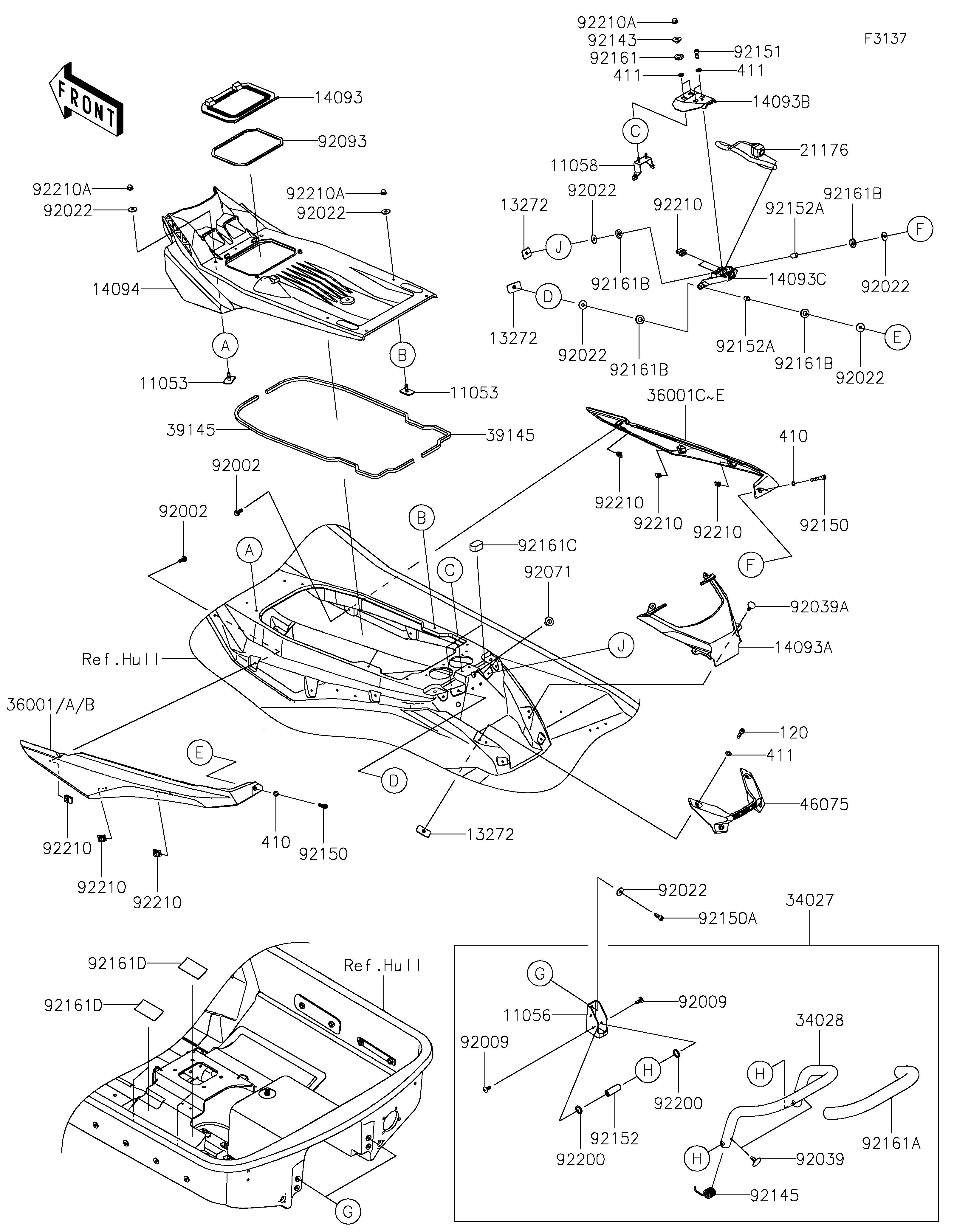

2025 JET SKI® ULTRA® 160LX - Hull Rear Fittings
11053
11053
11053
11053
11056
11056
11058
11058
13272
13272
13272
13272
13272
13272
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
14094
14094
21176
21176
34027
34027
34028
34028
36001A
36001A
36001D
36001D
39145
39145
39145
39145
46075
46075
92002
92002
92002
92002
92009
92009
92009
92009
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92039A
92039A
92071
92071
92093
92093
92143
92143
92145
92145
92150
92150
92150
92150
92150A
92150A
92151
92151
92152
92152
92152A
92152A
92152A
92152A
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92200
92200
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
120
120
410
410
410
410
411
411
411
411
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 6 | ||
| BRACKET | 11056 | 11056-1658 | 2 | ||
| BRACKET | 11058 | 11058-0463 | 1 | ||
| PLATE | 13272 | 13272-3861 | 6 | ||
| COVER,MAINTENANCE NOTE | 14093 | 14093-1172 | 1 | ||
| COVER,RR STORAGE | 14093A | 14093-1173 | 1 | ||
| COVER,RR CAMERA,UPP | 14093B | 14093-1174 | 1 | ||
| COVER,RR CAMERA,LWR | 14093C | 14093-1175 | 1 | ||
| COVER,SEAT UNDER | 14094 | 14094-0274 | 1 | ||
| SENSOR,RR CAMERA | 21176 | 21176-1139 | 1 | ||
| STEP-ASSY | 34027 | 34027-0027 | 1 | ||
| STEP | 34028 | 34028-0397 | 1 | ||
| COVER-SIDE,RR,LH,M.S.GOLD | 36001A | 36001-0714-66U | 1 | ||
| COVER-SIDE,RR,RH,M.S.GOLD | 36001D | 36001-0715-66U | 1 | ||
| TRIM-SEAL,10X10X1085 | 39145 | 39145-0738 | 2 | ||
| GRIP,RR DECK | 46075 | 46075-0657 | 1 | ||
| BOLT,6X16 | 92002 | 92002-3728 | 6 | ||
| SCREW,6X15 | 92009 | 92009-3830 | 4 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 14 | ||
| RIVET | 92039 | 92039-0721 | 2 | ||
| RIVET | 92039A | 92039-3788 | 4 | ||
| GROMMET | 92071 | 92071-3826 | 1 | ||
| SEAL | 92093 | 92093-0807 | 1 | ||
| COLLAR | 92143 | 92143-3749 | 2 | ||
| SPRING | 92145 | 92145-2249 | 2 | ||
| BOLT,SOCKET,6X35 | 92150 | 92150-1887 | 2 | ||
| BOLT,SOCKET,6X18 | 92150A | 92150-3775 | 4 | ||
| BOLT,SOCKET,6X16 | 92151 | 92151-3770 | 2 | ||
| COLLAR | 92152 | 92152-1593 | 2 | ||
| COLLAR | 92152A | 92152-2900 | 2 | ||
| DAMPER | 92161 | 92161-0117 | 2 | ||
| DAMPER | 92161A | 92161-1427 | 1 | ||
| DAMPER,10X20X4 | 92161B | 92161-2458 | 4 | ||
| DAMPER,30X45X20 | 92161C | 92161-2467 | 2 | ||
| DAMPER | 92161D | 92161-3728 | 4 | ||
| WASHER,14.5X20X1.5 | 92200 | 92200-3793 | 4 | ||
| NUT,6MM | 92210 | 92210-3768 | 8 | ||
| NUT,CAP,6MM | 92210A | 92210-3785 | 8 | ||
| BOLT-SOCKET,6X25 | 120 | 120R0625 | 4 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 2 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 8 |
