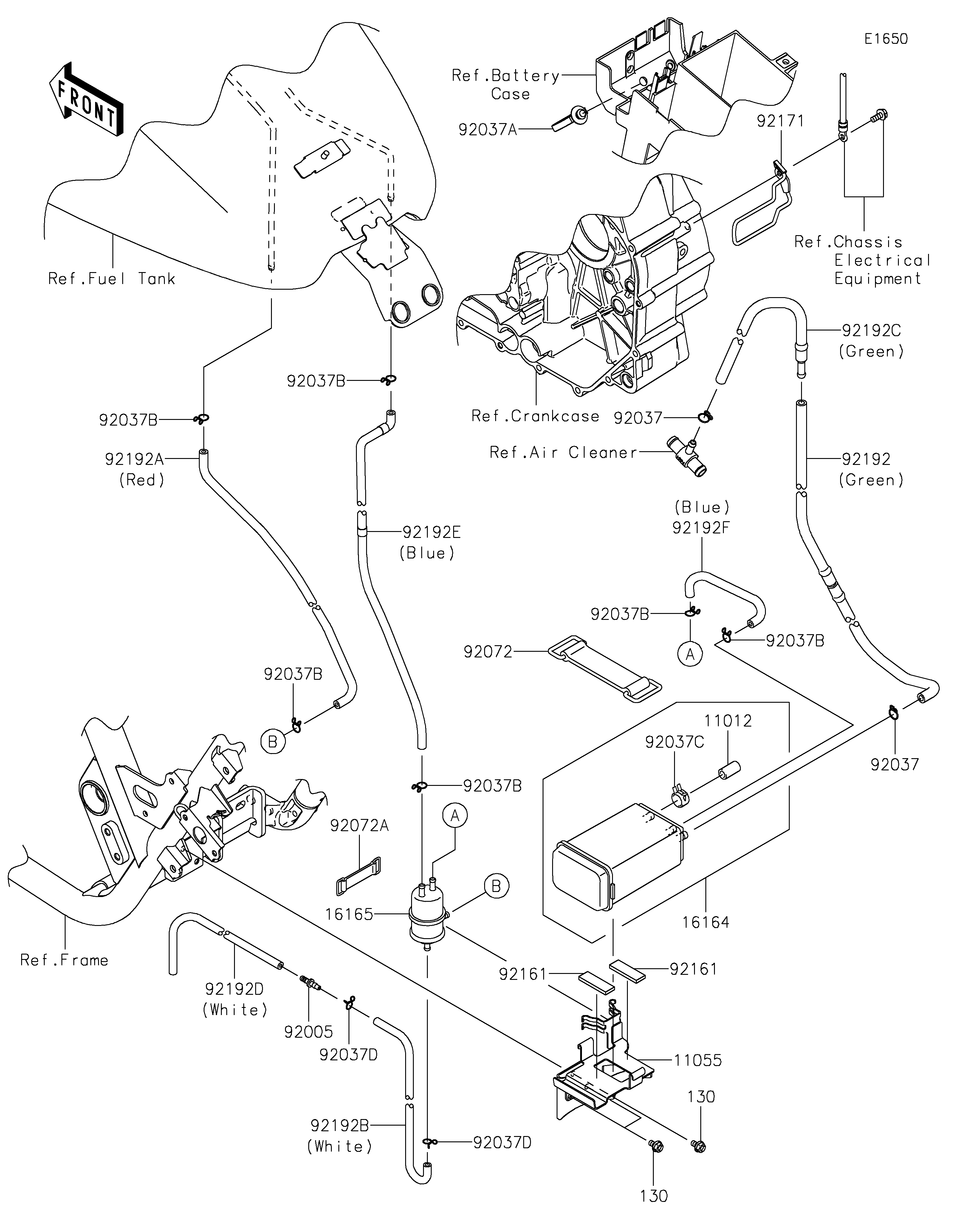

2026 VULCAN® 1700 VAQUERO® ABS - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11055
11055
16164
16164
16165
16165
92005
92005
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037C
92037C
92037D
92037D
92037D
92037D
92072
92072
92072A
92072A
92161
92161
92161
92161
92171
92171
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192E
92192E
92192F
92192F
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 _________________________________________CA
BRACKET 11055 11055-1653 1 _________________________________________CA
CANISTER 16164 16164-0017 1 _________________________________________CA
SEPARATOR 16165 16165-1001 1 _________________________________________CA
FITTING 92005 92005-1206 1 _________________________________________CA
CLAMP,HOSE 92037 92037-1104 2 _________________________________________CA
CLAMP,CABLE 92037A 92037-1459 1 _________________________________________CA
CLAMP,TUBE 92037B 92037-147 6 _________________________________________CA
CLAMP,CANISTER 92037C 92037-1512 1 _________________________________________CA
CLAMP 92037D 92037-1712 2 _________________________________________CA
BAND 92072 92072-1384 1 _________________________________________CA
BAND,L=50 92072A 92072-1419 1 _________________________________________CA
DAMPER 92161 92161-0124 2 _________________________________________CA
CLAMP 92171 92171-1798 1 _________________________________________CA
TUBE,CANISTER-1ST FTG,GREEN 92192 92192-0657 1 _________________________________________CA
TUBE,SEPARATOR-TANK,RED 92192A 92192-0660 1 _________________________________________CA
TUBE,FITTING-SEP.WHITE 92192B 92192-0692 1 _________________________________________CA
TUBE,1ST FTG-2ND FTG,GREEN 92192C 92192-0760 1 _________________________________________CA
TUBE,THROBO-FITTING,WHITE 92192D 92192-0761 1 _________________________________________CA
TUBE,TANK-SEPARATOR,BLUE 92192E 92192-0799 1 _________________________________________CA
TUBE,CANISTER-SEPARATOR,BLUE 92192F 92192-0824 1 _________________________________________CA
BOLT-FLANGED,6X10 130 130BB0610 3 _________________________________________CA
