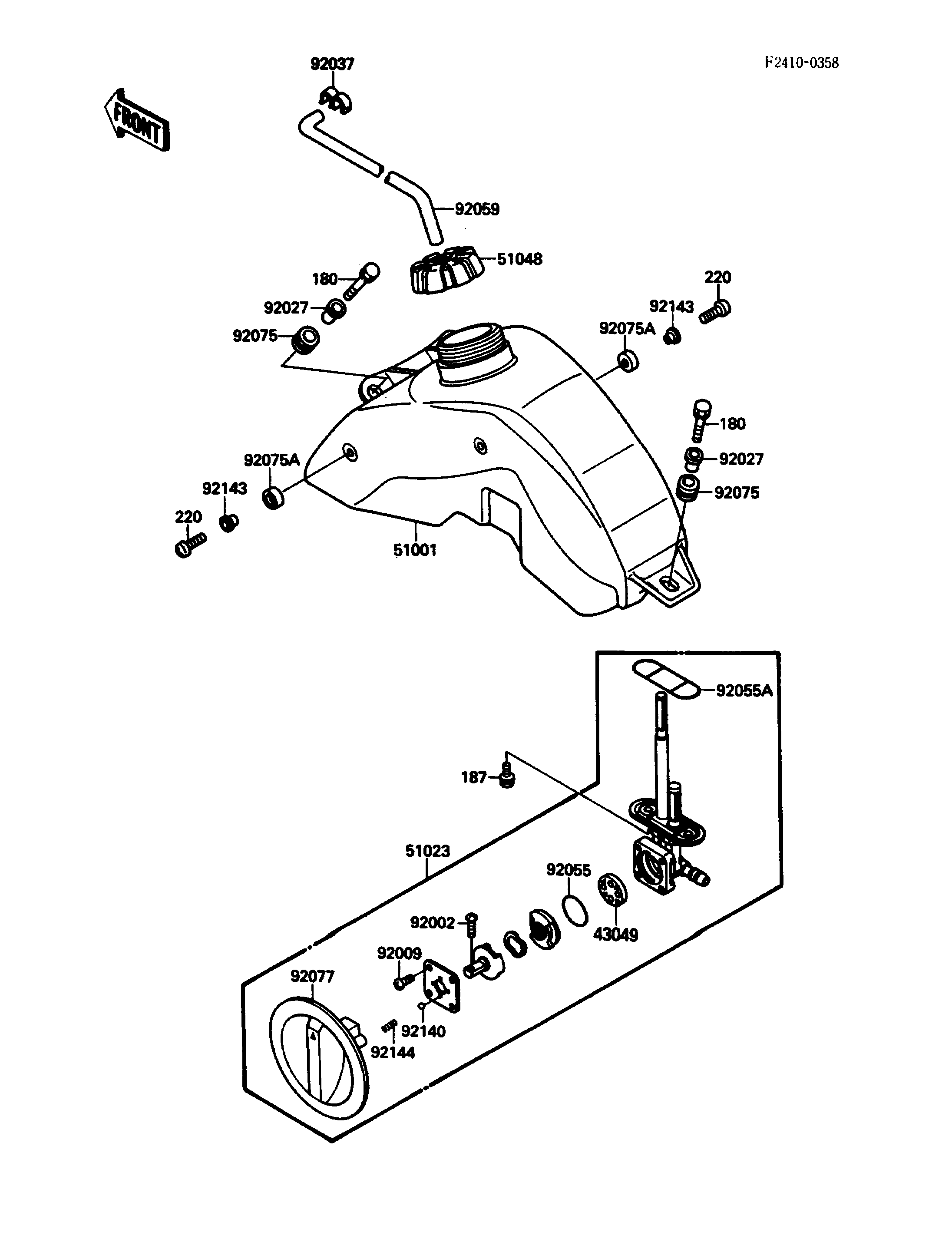

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PACKING,FUEL TAP LEVER | 43049 | 43049-1017 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-1262 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1137 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1090 | 1 | ||
| BOLT,SCREW,4X12 | 92002 | 92002-1996 | 1 | ||
| SCREW,3X5 | 92009 | 92009-1123 | 4 | ||
| COLLAR,L=16.1 | 92027 | 92027-1847 | 3 | ||
| CLAMP,HOSE | 92037 | 92037-1603 | 1 | ||
| RING-O,FUEL TAP LEVER | 92055 | 92055-1111 | 1 | ||
| RING-O,FUEL TAP PACKING | 92055A | 92055-1348 | 1 | ||
| TUBE,5X9X250 | 92059 | 92059-1258 | 1 | ||
| DAMPER | 92075 | 92075-1787 | 3 | ||
| DAMPER,FUEL TANK | 92075A | 92075-1910 | 4 | ||
| KNOB,FUEL TAP | 92077 | 92077-1078 | 1 | ||
| BALL,STAINLESS,5/32" | 92140 | 92140-1051 | 1 | ||
| COLLAR,L=4.5 | 92143 | 92027-1965 | 4 | ||
| SPRING,FUEL TAP KNOB | 92144 | 92144-1212 | 1 | ||
| BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 3 | ||
| BOLT-UPSET-WSP | 187 | 187B0614 | 2 | ||
| SCREW-PAN-CROS,6X10 | 220 | 220B0610 | 4 |
| PACKING,FUEL TAP LEVER | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SCREW,4X12 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X5 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=16.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL TAP LEVER | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL TAP PACKING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5X9X250 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KNOB,FUEL TAP | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL,STAINLESS,5/32" | |
| REF # | 92140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=4.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,FUEL TAP KNOB | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS,6X25 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
