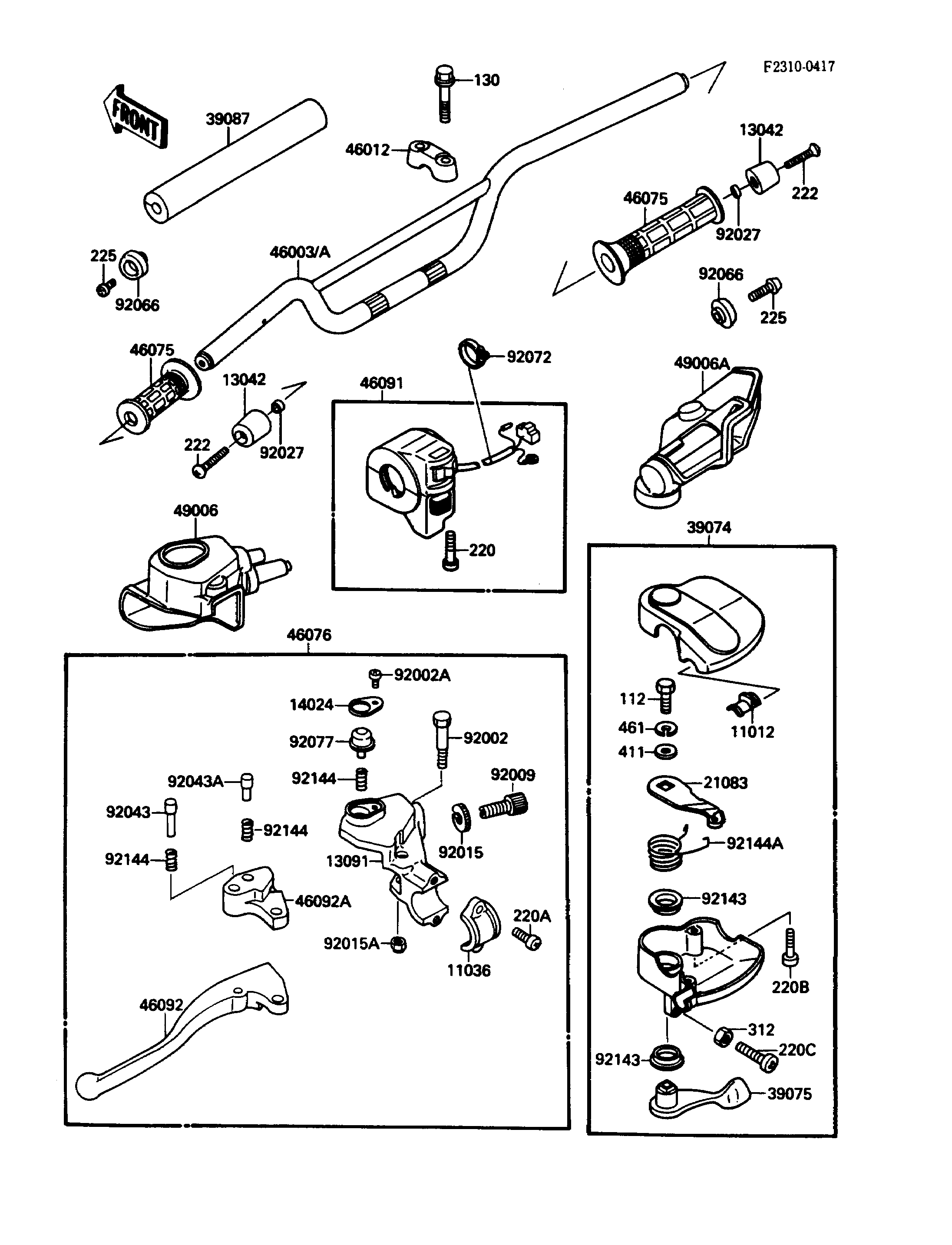

1987 Tecate 4 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1425 1
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
HOLDER,LEVER 13091 13091-1456 1
COVER,PARKING LEVER 14024 14024-1351 1
ARM 21083 21083-1068 1
LEVER-ASSY-THROTTLE 39074 39074-1052 1
LEVER-THROTTLE 39075 39075-1053 1
LEVER-THROTTLE ARM 39075A 39075-1054 1
PAD-HANDLE 39087 39087-1054 1
HANDLE 46003 46003-1242 1
HOLDER-HANDLE,UPP 46012 46012-008 2
GRIP 46075 46075-1056 2
LEVER-ASSY-GRIP,LH 46076 46076-1151 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1444 1
LEVER-GRIP,CLUTCH 46092 46092-1137 1
LEVER-GRIP,PARKING 46092A 46092-1138 1
BOOT,LH 49006 49006-1197 1
BOOT,RH 49006A 49006-1198 1
BOLT,LEVER SET 92002 92002-1833 1
BOLT,TAPPING 92002A 92002-1834 1
SCREW,CABLE ADJUST,8MM 92009 46055-009 1
NUT,CABLE ADJUST 92015 46056-006 1
NUT,LOCK,6MM 92015A 92019-008 1
PIN,5X15 92043 92043-1341 1
PIN,5X11 92043A 92043-1342 1
PLUG,HANDLE 92066 92066-1191 2
BAND,L=123 92072 92072-030 1
KNOB,PARKING LEVER 92077 92077-1076 1
COLLAR 92143 92143-1138 2
SPRING 92144 92144-1058 3
SPRING 92144A 92144-1176 1
BOLT-UPSET 112 112D0614 1
BOLT-FLANGED 130 130J0860 4
SCREW-PAN-CROS 220 220B0535 2
SCREW-PAN-CROS 220A 220C0514 2
SCREW-PAN-CROS 220B 220C0525 2
SCREW-PAN-CROS,6X30,BLACK 220C 220C0630 1
SCREW-PAN-WSP-CROS,6X20 225 225C0620 2
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
