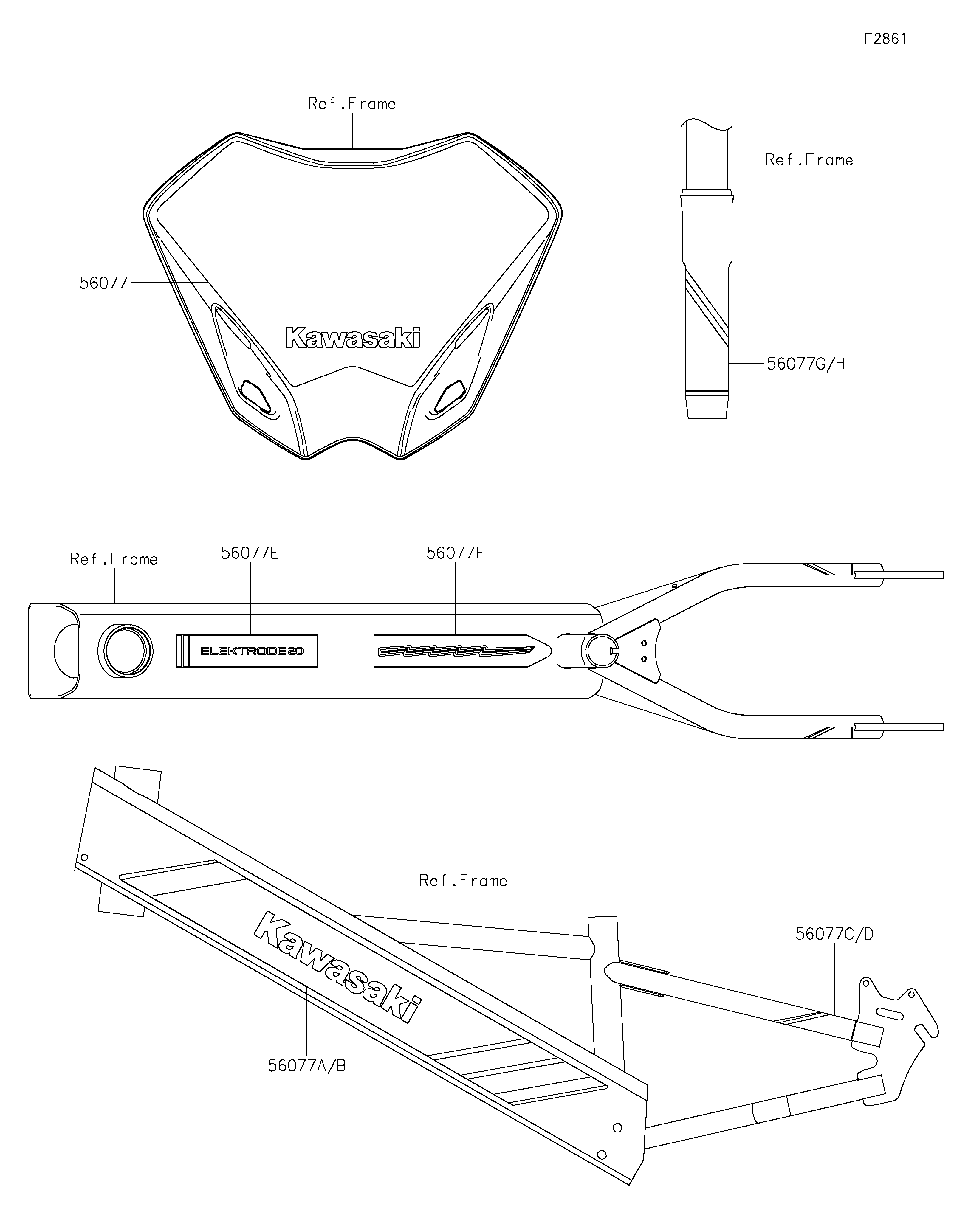

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,NUMBER PLATE | 56077 | 56077-2018 | 1 | ||
| PATTERN,FRAME,FR,LH | 56077A | 56077-2026 | 1 | ||
| PATTERN,FRAME,FR,RH | 56077B | 56077-2027 | 1 | ||
| PATTERN,FRAME,RR,LH | 56077C | 56077-2028 | 1 | ||
| PATTERN,FRAME,RR,RH | 56077D | 56077-2029 | 1 | ||
| PATTERN,FRAME,UPP,FR | 56077E | 56077-2030 | 1 | ||
| PATTERN,FRAME,UPP,RR | 56077F | 56077-2031 | 1 | ||
| PATTERN,FORK,LH | 56077G | 56077-2032 | 1 | ||
| PATTERN,FORK,RH | 56077H | 56077-2033 | 1 |
