Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

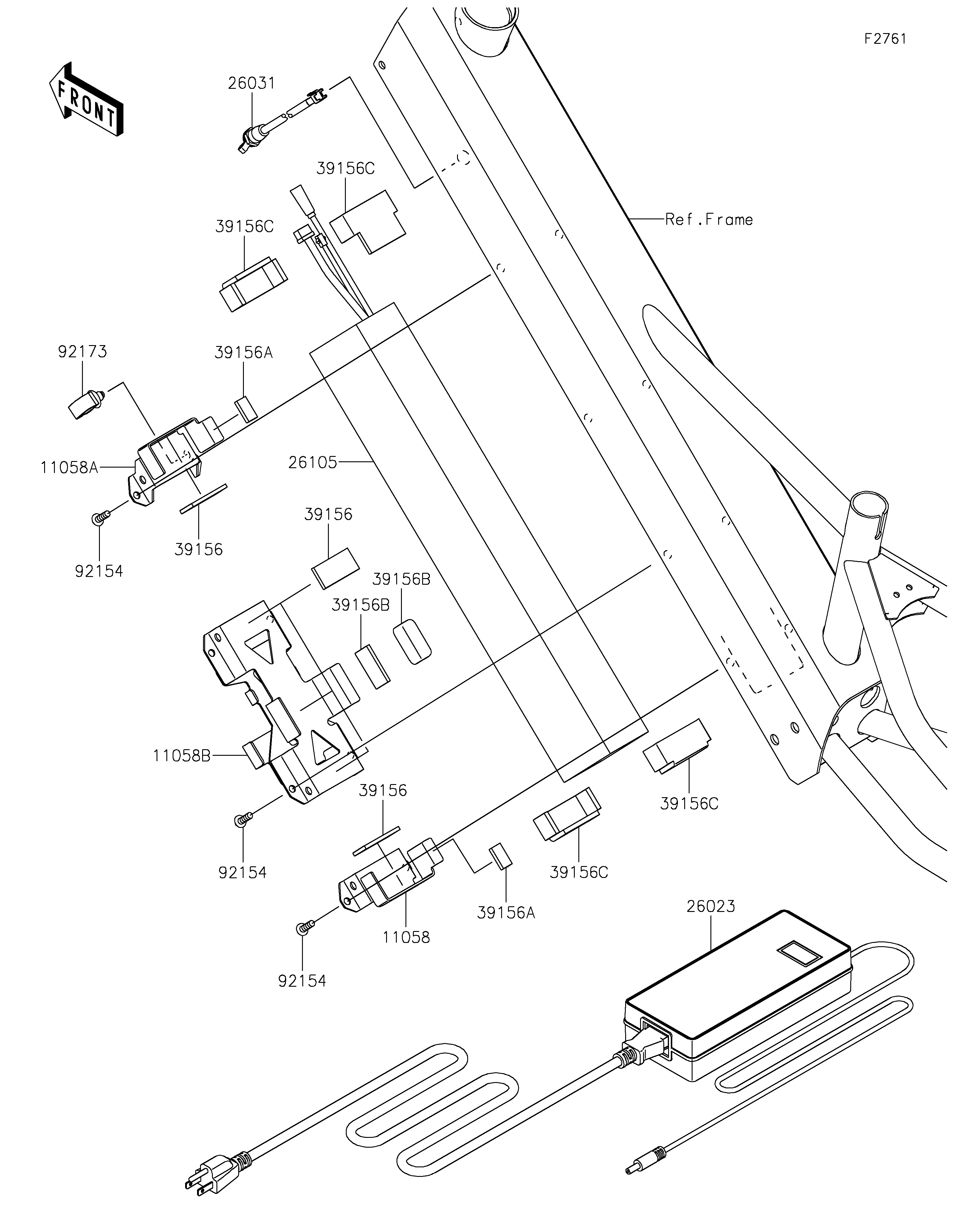

Parts Diagrams |
11058
11058A
11058B
26023
26031
26105
39156
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156C
39156C
92154
92154
92154
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BATTERY,RR | 11058 | 11058-1395 | 1 | ||
| BRACKET,BATTERY,FR | 11058A | 11058-1396 | 1 | ||
| BRACKET,BATTERY&CONTROLLER | 11058B | 11058-1968 | 1 | ||
| CHARGER-BATTERY,NORTH AMERICA | 26023 | 26023-0012 | 1 | ||
| HARNESS | 26031 | 26031-4165 | 1 | ||
| PACK-ASSY-BATTERY | 26105 | 26105-0007 | 1 | ||
| PAD,40X20X4 | 39156 | 39156-2690 | 5 | ||
| PAD,20X10X4 | 39156A | 39156-2839 | 2 | ||
| PAD,35X20X3 | 39156B | 39156-2922 | 2 | ||
| PAD | 39156C | 39156-2950 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-4294 | 8 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 1 |
