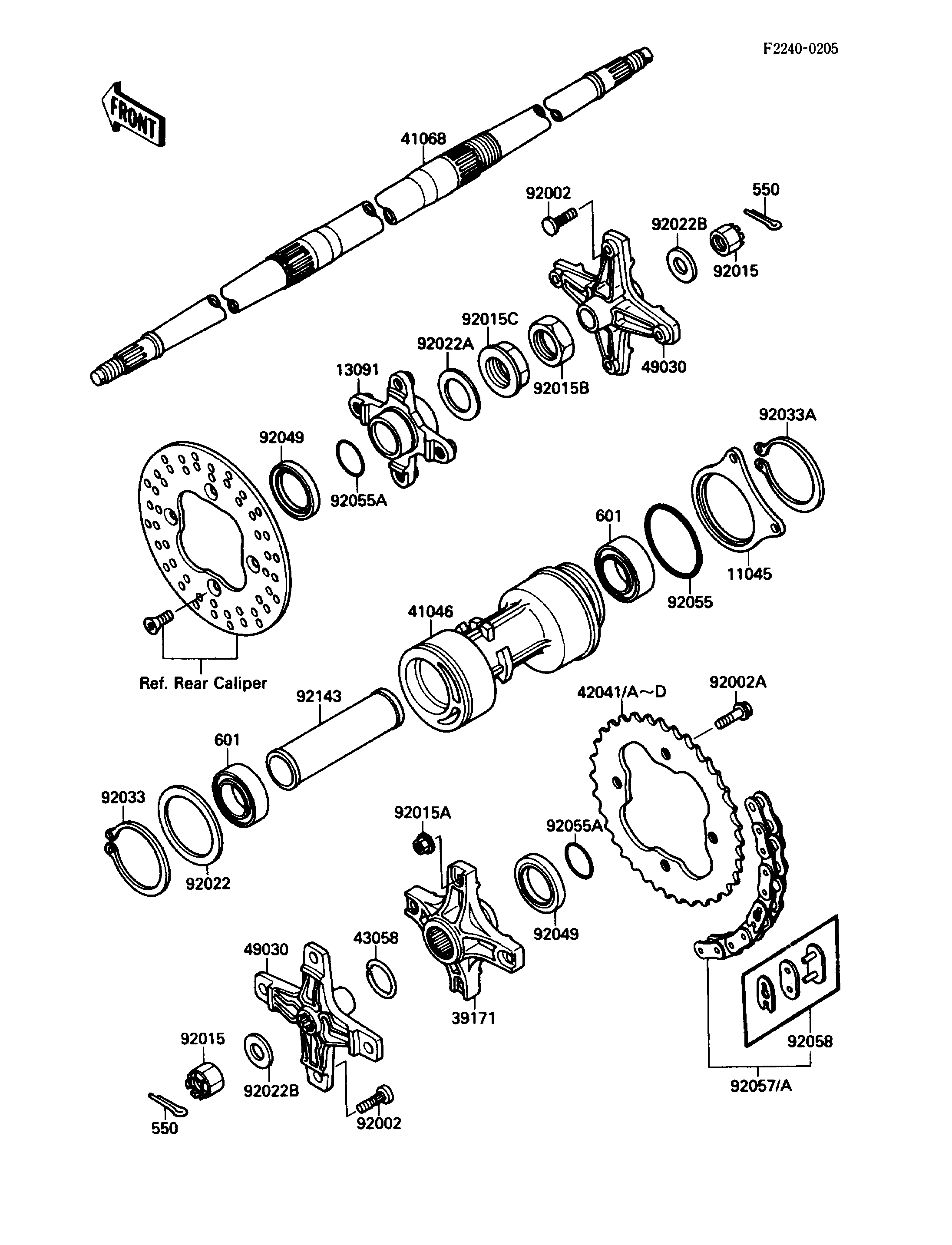

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR CALIPER | 11045 | 11045-1427 | 1 | ||
| HOLDER,DISC PLATE | 13091 | 13091-1472 | 1 | ||
| FLANGE-COMP,SPROCKET | 39171 | 39171-1052 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1080 | 1 | ||
| AXLE,RR | 41068 | 41068-1239 | 1 | ||
| SPROCKET-HUB,38T | 42041 | 42041-1262 | 1 | (OPTION) | |
| SPROCKET-HUB,39T | 42041A | 42041-1263 | 1 | ||
| SPROCKET-HUB,40T | 42041B | 42041-1264 | 1 | (OPTION) | |
| SPROCKET-HUB,41T | 42041C | 42041-1265 | 1 | (OPTION) | |
| SPROCKET-HUB,37T | 42041D | 42041-1289 | 1 | (OPTION) | |
| RING,SNAP | 43058 | 43058-1060 | 1 | ||
| HUB,RR | 49030 | 49030-1078 | 2 | ||
| BOLT,10X30 | 92002 | 92002-1388 | 8 | ||
| BOLT,FLANGED,8X25 | 92002A | 92002-1903 | 4 | ||
| NUT,CASTLE,18MM | 92015 | 42045-018 | 2 | ||
| NUT,LOCK,8MM | 92015A | 92015-1506 | 4 | ||
| NUT,LOCK,37MM | 92015B | 92015-1545 | 1 | ||
| NUT,AXLE,37MM | 92015C | 92015-1645 | 1 | ||
| WASHER,94.5X108X1.0 | 92022 | 92022-1858 | 1 | ||
| WASHER,40.5X60X1.0 | 92022A | 92022-1859 | 1 | ||
| WASHER,18.3X34X4.5 | 92022B | 92022-1953 | 2 | ||
| RING-SNAP,95MM | 92033 | 92033-1216 | 1 | ||
| RING-SNAP,75MM | 92033A | 92033-1217 | 1 | ||
| SEAL-OIL | 92049 | 92049-1237 | 2 | ||
| RING-O,76MM | 92055 | 92055-1213 | 1 | ||
| RING-O,38MM | 92055A | 92055-1317 | 2 | ||
| CHAIN,DRIVE,DID520VC5X96L | 92057 | 92057-1233 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1059 | 1 | ||
| COLLAR,REAR AXLE,L=136 | 92143 | 92143-1078 | 1 | ||
| PIN-COTTER,3.2X35 | 550 | 550D3235 | 2 | ||
| BEARING-BALL,#6008UU | 601 | 601A6008UU | 2 |
