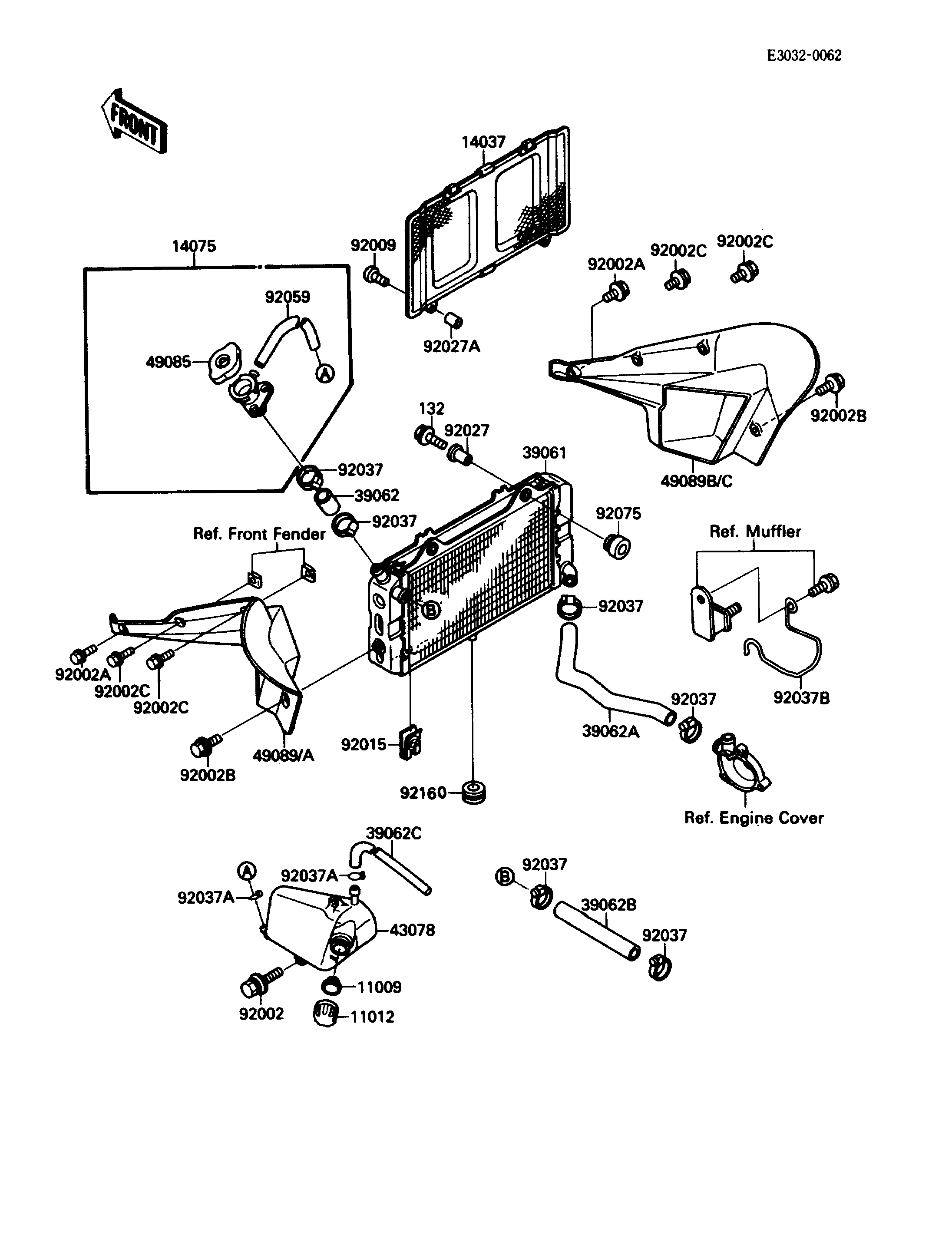

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| SCREEN | 14037 | 14037-1096 | 1 | ||
| CAP-ASSY,RADIATOR | 14075 | 14075-1071 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-1105 | 1 | ||
| HOSE-COOLING | 39062 | 39062-1015 | 1 | ||
| HOSE-COOLING,PUMP-RADIATOR | 39062A | 39062-1232 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062B | 39062-1234 | 1 | ||
| HOSE-COOLING,5X9X950 | 39062C | 39062-1254 | 1 | ||
| RESERVOIR | 43078 | 43078-1087 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1003 | 1 | ||
| SHROUD-ENGINE,LH,L.GREEN | 49089A | 49089-1075-6W | 1 | ||
| SHROUD-ENGINE,RH,L.GREEN | 49089C | 49089-1076-6W | 1 | ||
| BOLT,6X14 | 92002 | 92002-1460 | 2 | ||
| BOLT,6X25 | 92002A | 92002-1462 | 2 | ||
| BOLT,L=12 | 92002B | 92002-1662 | 2 | ||
| BOLT,6X18 | 92002C | 92002-1952 | 4 | ||
| SCREW,TAPPING,6X20 | 92009 | 92009-1422 | 2 | ||
| NUT,6MM | 92015 | 92015-1758 | 2 | ||
| COLLAR | 92027 | 92027-1183 | 2 | ||
| COLLAR,6.8X10X10.5 | 92027A | 92027-120 | 2 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
| CLAMP | 92037A | 92037-1712 | 2 | ||
| CLAMP,COOLING HOSE GUIDE | 92037B | 92037-1953 | 1 | ||
| TUBE | 92059 | 92059-1794 | 1 | ||
| DAMPER | 92075 | 92075-1352 | 2 | ||
| DAMPER | 92160 | 92160-1007 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 2 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY,RADIATOR | |
| REF # | 14075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PUMP-RADIATOR | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,HEAD-RADIATOR | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,5X9X950 | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,L.GREEN | |
| REF # | 49089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,L.GREEN | |
| REF # | 49089C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,L=12 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X10.5 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE GUIDE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
