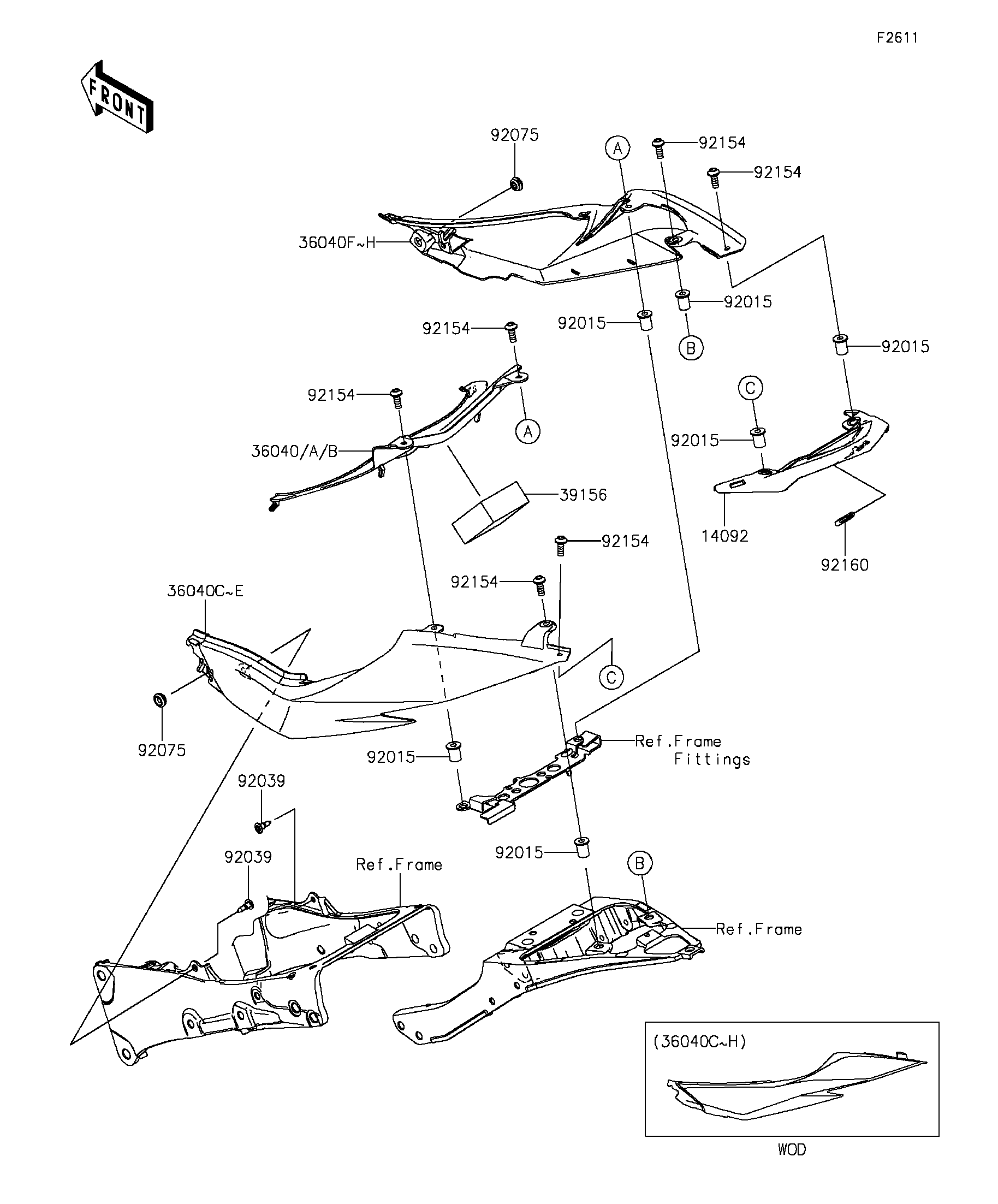

2015 Ninja® ZX™-6R ABS - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14092
36040A
36040C
36040F
39156
92015
92015
92015
92015
92015
92015
92039
92039
92075
92075
92154
92154
92154
92154
92154
92154
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RR 14092 14092-0989 1
COVER-TAIL,CNT,F.EBONY 36040A 36040-0093-45L 1
COVER-TAIL,LH,F.EBONY 36040C 36040-0133-45L 1
COVER-TAIL,RH,F.EBONY 36040F 36040-0134-45L 1
PAD,CNT COVER 39156 39156-0529 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0068 2
DAMPER 92075 92075-1011 2
BOLT,SOCKET,5X16 92154 92154-0209 6
DAMPER 92160 92160-1190 1
