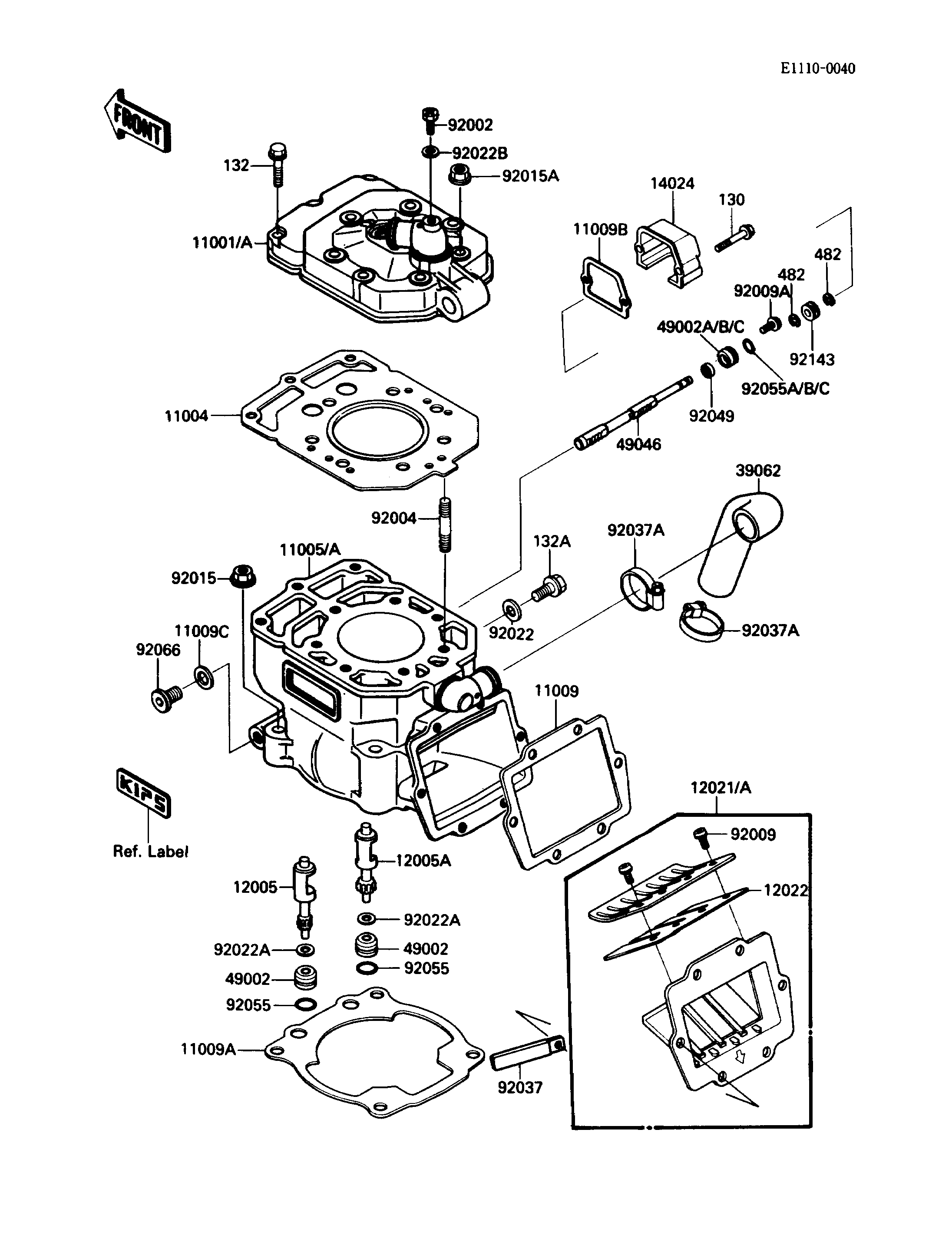

1987 Tecate 4 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1259 1
GASKET-HEAD 11004 11004-1157 1
CYLINDER-ENGINE 11005 11005-1528 1
GASKET,REED VALVE 11009 11009-1252 1
GASKET,CYLINDER BASE 11009A 11009-1624 1
GASKET,GOVERNOR COVER 11009B 11009-1625 1
GASKET,12.5X18X1,DRAIN PLUG 11009C 92065-073 1
VALVE-EXHAUST,LH 12005 12005-1094 1
VALVE-EXHAUST,RH 12005A 12005-1095 1
VALVE-ASSY-REED 12021 12021-1071 1
VALVE-REED 12022 12022-1060 2
COVER,GOVERNOR 14024 14024-1359 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1233 1
GUIDE-VALVE 49002 49002-1073 2
GUIDE-VALVE 49002A 49002-1074 1 ( - XF250AE002547)
GUIDE-VALVE 49002C 49002-1087 1 ( XF250AE002548 - )
ROD-GOVERNOR 49046 49046-1060 1
BOLT,6X10 92002 92002-1222 1
STUD,8X40 92004 92004-1139 7
SCREW,3X6 92009 92009-1371 8
SCREW,5X10 92009A 92009-1502 1
NUT,FLANGED,10MM 92015 92015-077 4
NUT,8MM 92015A 92015-1143 7
WASHER,8.2X14X1 92022 92022-1488 1
WASHER,6.8X16X0.5 92022A 92022-1869 2
WASHER,6.2X11X1 92022B 92022-304 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP,COOLING HOSE 92037A 92037-1589 2
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,17.5X1.5 92055 92055-022 2
RING-O,10X1.5 92055A 92055-061 1 ( - XF250AE002547)
RING-O,11.5X1.5 92055C 92055-1387 1 ( XF250AE002548 - )
PLUG,12X10 92066 92066-1222 1
COLLAR 92143 92143-1056 1
BOLT-FLANGED 130 130G0535 2
BOLT-FLANGED-SMALL 132 132G0625 3
BOLT-FLANGED-SMALL 132A 132G0810 1
CIRCLIP-TYPE-E,4MM 482 482J4000 2
